Discontinued
R11e-LTE
LTE miniPCI-e card for International bands
LTE Cat4
Outdoors

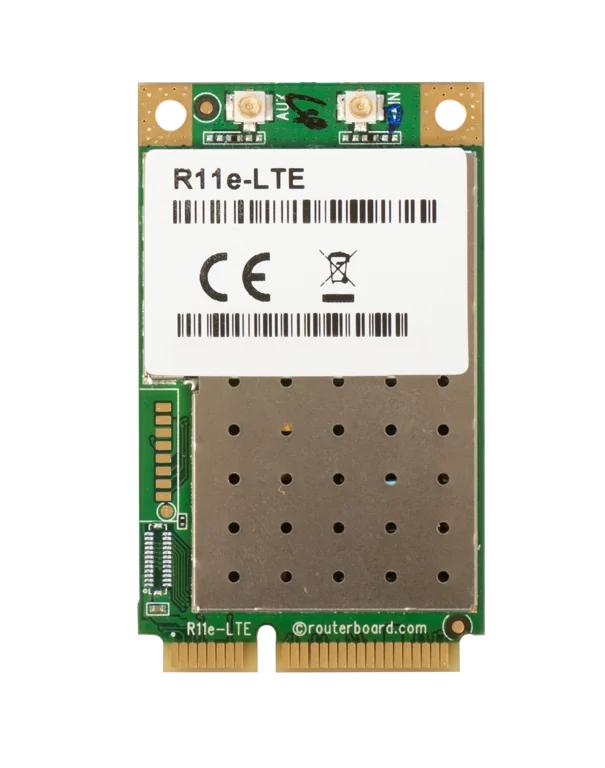

R11e-LTE
The R11e-LTE is an LTE Cat-4 modem that delivers up to 150Mbps downlink and 50Mbps uplink data rate with 3G and 2G network fallback. This mini-PCIe form factor modem is designed for international bands.
It can be used with any of our products that have miniPCI-e slot (exceptions RB800 and RB4011).
Specification
Specifications
- Product code R11e-LTE
- Suggested price $85.00
- Tested ambient temperature -30°C .. +50°C
- MTBF Approximately 100'000 hours at 25C
- Tested ambient temperature -30°C to 50°C
Powering
- Max power consumption 3 W
- Max power consumption without attachments 3 W
Mobile
- 2G Category Class12
-
2G bands
2 (1900MHz)
3 (1800MHz)
5 (850MHz)
8 (900MHz)
- 3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink)
-
3G bands
1 (2100MHz)
2 (1900MHz)
5 (850MHz)
8 (900MHz)
- LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
-
LTE FDD bands
1 (2100MHz)
2 (1900MHz)
3 (1800MHz)
7 (2600MHz)
8 (900 MHz)
20 (800MHz)
-
LTE TDD bands
38 (2600MHz)
40 (2300MHz)
- TAC 35565409
Certification & Approvals
- IP IP00
