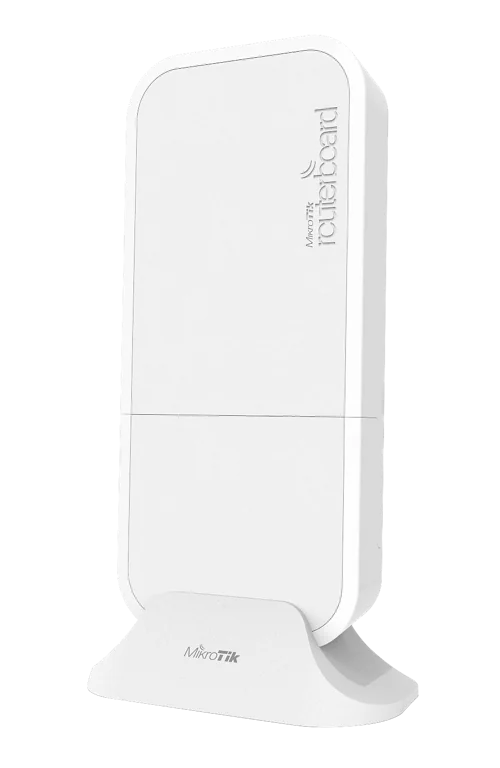

    wAP R ac Small weatherproof Dual Band 2.4 / 5 GHz wireless access point with LTE antennas and miniPCI-e slot

    A small package with a huge ambition – the wAP ac R is an extremely cost-effective dual-band (2.4 / 5 GHz) home access point based on our popular weatherproof wAP form factor. Enjoy wireless experience anywhere – indoors or outdoors! wAP ac LTE is designed to deliver strong and reliable connection in almost any situation and weather conditions. It can withstand temperatures from -30 C‎° to +60 C‎ and can be easily mounted on walls, ceilings or poles.

    Don’t be fooled by the compact size – this device is powered by a four core 716 MHz CPU and 128 MB RAM, capable of handling heavy loads. Dual-chain 2.4 GHz and dual-chain 5GHz wireless for dual concurrent AP coverage will solve most interference issues in a crowded environment. For example, you can simultaneously use the 2.4 GHz channel for all your household mobile devices and reserve the 5GHz channel for tasks that are sensitive to packet loss – such as streaming high-quality videos.

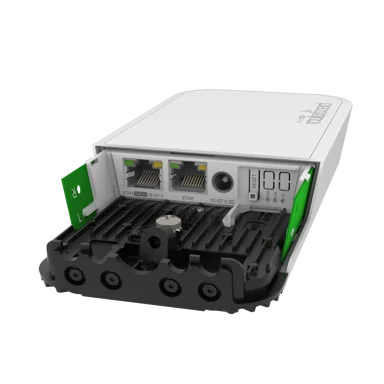

    It has two Gigabit Ethernet ports and miniPCIe slot for LTE modem of your choice (not included).

    High performance, great value, astonishing durability, functional and non-intrusive design – wAP ac LTE will meet most demands without making sacrifices.

     Send purchase questions

    Specifications

    Details
    Product code RBwAPGR-5HacD2HnD
    Architecture ARM 32bit
    CPU IPQ-4018
    CPU core count 4
    CPU nominal frequency 716 MHz
    License level 4
    Size of RAM 128 MB
    Storage size 16 MB
    Storage type FLASH
    Tested ambient temperature -30°C to 60°C
    Suggested price $129.00

    Powering

    Details
    PoE in 802.3af/at
    PoE in input Voltage 18-57 V
    Number of DC inputs 2 (DC jack, PoE-IN)
    DC jack input Voltage 10-57 V
    Max power consumption 11 W
    Max power consumption without attachments 10 W

    Wireless

    Details
    AC speed AC1200
    Antenna gain dBi for 2.4 GHz 2.5
    Wireless 2.4 GHz standards 802.11b/g/n
    Wi-Fi generation 5
    Wireless 2.4 GHz Max data rate 300 Mbit/s
    Wireless 5 GHz Max data rate 867 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz chip model IPQ-4018
    Wireless 5 GHz number of chains 2
    Wireless 5 GHz standards 802.11a/n/ac
    Antenna gain dBi for 5 GHz 2.5
    Wireless 5 GHz chip model IPQ-4018

    Ethernet

    Details
    10/100/1000 Ethernet ports 2

    Peripherals

    Details
    Number of SIM slots 1 Modem (Micro SIM)
    MiniPCI-e slots 1

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s22-100
    11MBit/s22-94
    6MBit/s23-95
    54MBit/s19-78
    MCS023-95
    MCS718-73
    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s24-95
    54MBit/s20-78
    MCS024-95
    MCS719-73
    MCS917-68

    Included parts

    Quick GuideOpen

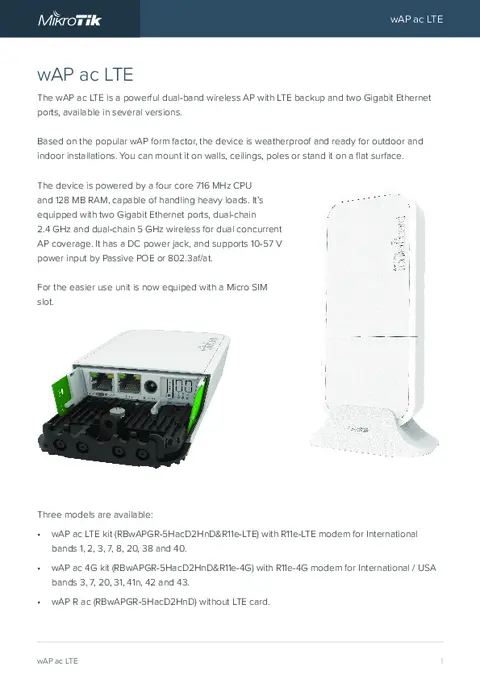

    BrochureOpen
    RouterOS current releaseDownload
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)
    Declaration of conformityOpen (FCC - 1)
    Declaration of conformityOpen (FCC - 2)

    High resolution images

    IPsec test results

    RBwAPGR-5HacD2HnDr2IPQ-4018 IPsec throughput
    ModeConfiguration1400 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Single tunnelAES-128-CBC + SHA137.9424.559241.761.631.5
    256 tunnelsAES-128-CBC + SHA136403.238.5157.739.820.4
    256 tunnelsAES-128-CBC + SHA25636403.238.5157.739.820.4
    256 tunnelsAES-256-CBC + SHA134.4385.337.9155.239.820.4
    256 tunnelsAES-256-CBC + SHA25634.4385.337.9155.239.820.4
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
