Discontinued
R11e-4G
LTE miniPCI-e card for bands 3,7,20,31,41n,42,43
LTE Cat4

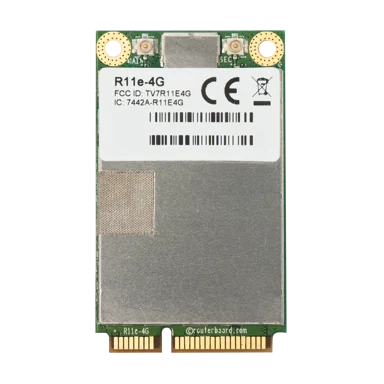

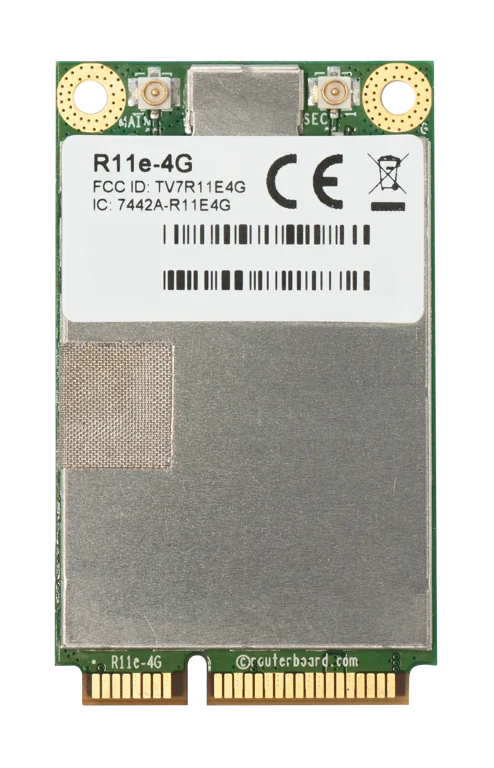

R11e-4G
We are now offering a new Category 4 4G/LTE miniPCI-e card (product code R11e-4G).
R11e-4G supports LTE FDD bands 3 (1800MHz), 7 (2600MHz), 20 (800MHz) and 31 (450MHz), as well as LTE TDD bands 41n (2500MHz), 42 (3500MHz) and 43 (3700MHz).
You are welcome to use it with our products that has miniPCIe slots, like LtAP mini, wAP R, RBM11G, RBM33G or others.
Specification
Specifications
- Product code R11e-4G
- Suggested price $79.00
- Tested ambient temperature -30°C .. +70°C
- MTBF Approximately 100'000 hours at 25C
- Tested ambient temperature -30°C .. +70°C
Powering
- Max power consumption 3 W
Mobile
- LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
-
LTE FDD bands
3 (1800MHz)
7 (2600MHz)
20 (800MHz)
31 (450MHz)
-
LTE TDD bands
41n (2500MHz)
42 (3500MHz)
43 (3700MHz)
- TAC 35914709
Certification & Approvals
- Certification CE, FCC, IC, ROHS
- IP IP00
