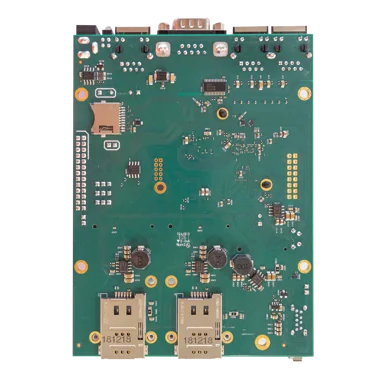

    RBM33G Powerful OEM board with three Gigabit LAN and two miniPCIe slots

    The RBM33G is a fully featured RouterBOARD device perfect for using in your own enclosure or building a custom solution. It uses the same PCB form factor and same mounting holes as it’s predecessors (RB433 and RB953 series).

    The RBM33G features a new two core CPU running at 880 MHz and 256 MB of DDR3 RAM and three gigabit ethernet ports. It is specially designed for setups that requires two 3G/LTE modems. You can use e.g.:

    • Two miniPCIe 3G/LTE modems for multiple mobile connections (two SIM slots provided)

    • One miniPCIe and One USB 3G/LTE modem leaving other miniPCIe slot for 802.11 wireless card (consult product Quick Guide for details)

    The included USB 2.0/3.0 port can be used either for 3G/LTE modem or an external hard drive (consult product Quick Guide for details). For expanding storage, microSD and a PCIe M.2 slots are provided.

    The RBM33G comes fitted with a RS232 serial port for console access. The device can be powered by PoE through it’s gigabit ethernet connector or through the DC power jack.

     Send purchase questions

    Specifications

    Details
    Product code RBM33G
    Architecture MMIPS
    CPU MT7621A
    CPU core count 2
    CPU nominal frequency 880 MHz
    CPU Threads count 4
    Switch chip model MT7621A
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 256 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    IPsec hardware acceleration Yes
    Suggested price $59.00

    Powering

    Details
    Number of DC inputs 2 (PoE-IN, DC jack)
    DC jack input Voltage 11-28 V
    Max power consumption 24 W
    Max power consumption without attachments 5 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 11-28 V

    Ethernet

    Details
    10/100/1000 Ethernet ports 3

    Peripherals

    Details
    Number of SIM slots 2 Modem (Mini SIM)
    M.2 slots 1
    MiniPCI-e slots 2
    Serial console port RS232 + GPIO header
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type USB 3.0 type A
    Max USB current (A) 1
    Number of M.2 slots 1

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS

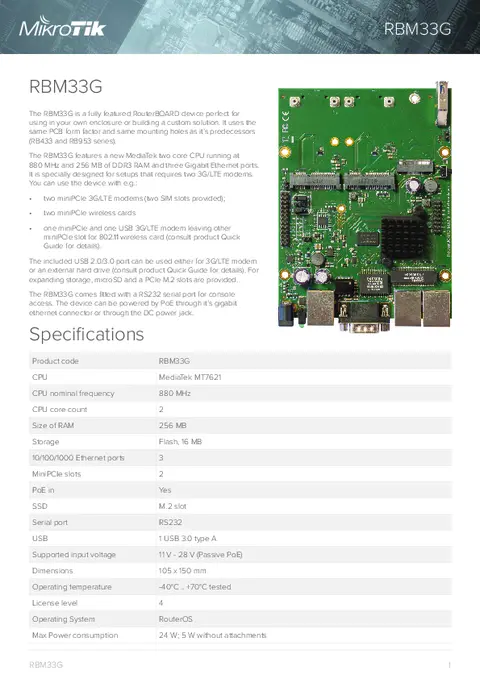

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload
    General FileOpen
    Block Diagram with enabled switchingOpen
    Block Diagram with disabled switchingOpen
    Design filesOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    Ethernet test results

    RBM33GMT7621A (880Mhz) 1G all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)162.41,972.2443.71,817.41039.1532.0
    Bridging25 bridge filter rules162.41,972.2168.1688.5174.389.2
    Routingnone (fast path)162.41,972.2444.41,820.31035.0529.9
    Routing25 simple queues162.41,972.2179.6735.6171.487.8
    Routing25 ip filter rules92.91,128.294.1385.493.848.0
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    IPsec test results

    RBM33GMT7621A IPsec throughput
    ModeConfiguration1400 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Single tunnelAES-128-CBC + SHA141.9469.342.3173.341.521.2
    256 tunnelsAES-128-CBC + SHA141.9469.343.717942.721.9
    256 tunnelsAES-128-CBC + SHA25642.2472.644.4181.942.721.9
    256 tunnelsAES-256-CBC + SHA132358.440163.840.520.7
    256 tunnelsAES-256-CBC + SHA25632.1359.539.7162.640.520.7
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
