R11e-5HacD
5Ghz miniPCI-express, 802.11ac/a/n dual chain, 2x MMCX
Outdoors

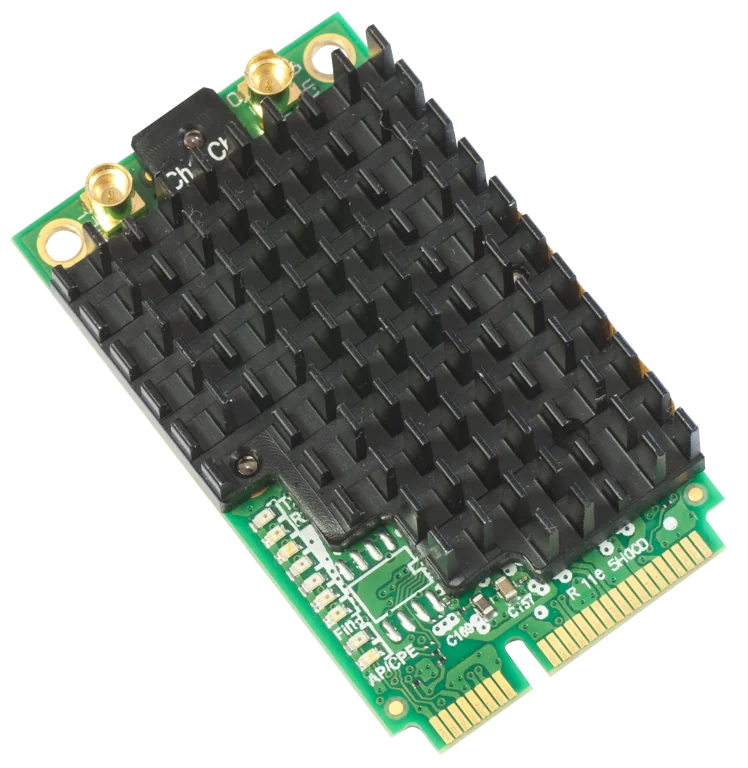

R11e-5HacD
R11e-5HacD is our new 802.11ac card in miniPCI-express format, perfect for any RouterBOARD with miniPCIe slot, such as RB953, RB912, RB922, RB800 or x86 devices with RouterOS.
The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.
Specification
Specifications
- Product code R11e-5HacD
- Suggested price $49.00
- Tested ambient temperature -40°C to 70°C
- Storage size 4 KB
- Storage type FLASH
- MTBF Approximately 100'000 hours at 25C
- Tested ambient temperature -40°C to 70°C
Powering
- Max power consumption 4 W
Wireless specifications
- dBi
- 5GHz yes
- Wireless 5 GHz Max data rate 867 Mbit/s
- Wireless 5 GHz Number of chains 2
- Wireless 5 GHz standards 802.11a/n/ac
- Wireless 5 GHz chip model QCA9882
- Wireless 5 GHz generation Wi-Fi 5
Certification & Approvals
- Certification FCC, IC
Wireless Specification
5 GHz
Transmit (dBm)
Receive Sensitivity
6MBit/s
27
-96
54MBit/s
23
-81
MCS0
26
-96
MCS7
23
-77
MCS9
19
-72
