LtAP
A heavy-duty 2.4GHz access point with two miniPCI-e slots, three SIM slots and GNSS support (GPS, GLONASS, BeiDou, Galileo)
The new LtAP is a compact weatherproof wireless access point – perfect for busy urban environment or off-the-grid outdoors networking. It has high power 2.4 GHz 802.11b/g/n wireless and Gigabit Ethernet LAN port for your wired devices. There are several power options – DC jack, POE-in and automotive.
The unit comes with a two miniPCIe slots, offering many expansion options. For example, you can install LTE modem of your choice for LTE backup and 5GHz interface to have dual concurrent 2.4 GHz / 5GHz AP + LTE.

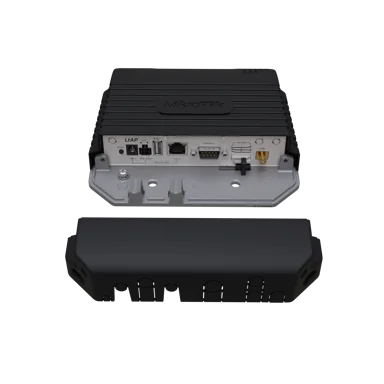

LtAP has a RS232 serial port, which gives you console access for debugging, as well as full size USB for other devices.

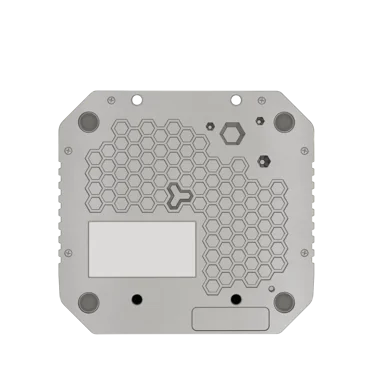

The rugged and extremely durable case with a special wall mounting kit will be perfect for almost any challenge: from public transportation, food trucks or logistics to harsh winter and stormy desert environment. LtAP can handle any temperature from -40 C‎° to +70 C‎°. It is a perfect solution for tracking vehicles in real time. We have provided a simple tracking application example in the RouterOS documentation to help you get started. LtAP even has 3 Mini-SIM slots for easy roaming management. Saves your time and money worldwide!
The new LtAP is more than an access point – it is what you need it to be wherever you need it to be.
Specification
- Product code RBLtAP-2HnD
- Suggested price $199.00
- Architecture MMIPS
- CPU MT7621A
- CPU core count 2
- CPU nominal frequency 880 MHz
- CPU Threads count 4
- RouterOS license 4
- Operating System RouterOS
- Size of RAM 128 MB
- Storage size 16 MB
- Storage type FLASH
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -40°C to 70°C
- Number of DC inputs 3 (DC jack, PoE-IN, Automotive)
- DC jack input Voltage 12-30 V
- Automotive input Voltage 12-27 V
- Max power consumption 24 W
- Max power consumption without attachments 9 W
- PoE in Passive PoE
- Cooling type Passive
- PoE in input Voltage 12-30 V
- Wireless 2.4 GHz Max data rate 300 Mbit/s
- Wireless 2.4 GHz Number of chains 2
- Wireless 2.4 GHz standards 802.11b/g/n
- Antenna gain dBi for 2.4 GHz 2.5
- Wireless 2.4 GHz chip model AR9382
- Wireless 2.4 GHz generation Wi-Fi 4
- 10/100/1000 Ethernet ports 1
- Number of SIM slots 3 Modem (Mini SIM)
- MiniPCI-e slots 2
- Serial console port RS232
- Number of USB ports 1
- USB Power Reset Yes
- USB slot type USB type A
- Max USB current (A) 1
- PCB temperature monitor Yes
- Voltage Monitor Yes
- GNSS standards GPS
- Certification CE, FCC, IC, E-MARK, EAC, ROHS
- IP IP54
| RBLtAP-2HnD | MT7621A (880Mhz) 1G one port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.1 | 984.9 | 233.3 | 955.6 | 717.9 | 367.6 |
| Bridging | 25 bridge filter rules | 81.1 | 984.9 | 133.1 | 545.2 | 133.1 | 68.1 |
| Routing | none (fast path) | 81.1 | 984.9 | 233.3 | 955.6 | 859.5 | 440.1 |
| Routing | 25 simple queues | 81.1 | 984.9 | 116.9 | 478.8 | 119 | 60.9 |
| Routing | 25 ip filter rules | 70.8 | 859.8 | 74.6 | 305.6 | 73.5 | 37.6 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
| RBLtAP-2HnD | MT7621A IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 20.7 | 231.8 | 21.5 | 88.1 | 21.3 | 11.6 |
| 256 tunnels | AES-128-CBC + SHA1 | 12.1 | 135.5 | 12.3 | 50.4 | 12.7 | 6.9 |
| 256 tunnels | AES-128-CBC + SHA256 | 12.2 | 136.6 | 12.4 | 50.8 | 12.4 | 6.7 |
| 256 tunnels | AES-256-CBC + SHA1 | 12.1 | 135.5 | 12.3 | 50.4 | 12.4 | 6.7 |
| 256 tunnels | AES-256-CBC + SHA256 | 10.5 | 117.6 | 12.6 | 51.6 | 12.4 | 6.7 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
