R11e-2HnD
2Ghz miniPCI-express, 802.11b/g/n dual chain, 2x u.Fl
Outdoors

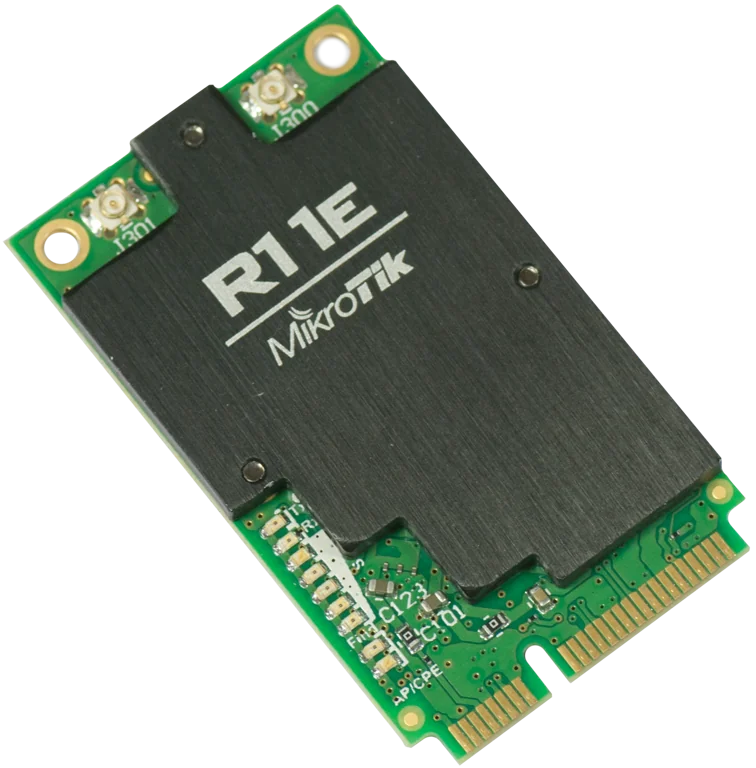

R11e-2HnD
R11e-2HnD is a Low-profile Lower power version of our 2.4Ghz miniPCIe card - it has a small heat-sink, u.Fl connector and less output power. Low profile is useful if you need to install the card in device like a laptop.
Specification
Specifications
- Product code R11e-2HnD
- Suggested price $39.00
- Tested ambient temperature -40C to +65C
- Storage size 4 KB
- Storage type FLASH
- MTBF Approximately 100'000 hours at 25C
- Tested ambient temperature -40°C to 70°C
Powering
- Max power consumption 4.6 W
Wireless specifications
- Wireless 2.4 GHz Max data rate 300 Mbit/s
- Wireless 2.4 GHz Number of chains 2
- Wireless 2.4 GHz standards 802.11b/g/n
- Wireless 2.4 GHz chip model AR9582
- Wireless 2.4 GHz generation Wi-Fi 4
Certification & Approvals
- Certification FCC, IC
Wireless Specification
2.4 GHz
Transmit (dBm)
Receive Sensitivity
1MBit/s
28
-100
11MBit/s
28
-94
6MBit/s
29
-96
54MBit/s
25
-80
MCS0
29
-96
MCS7
24
-79
