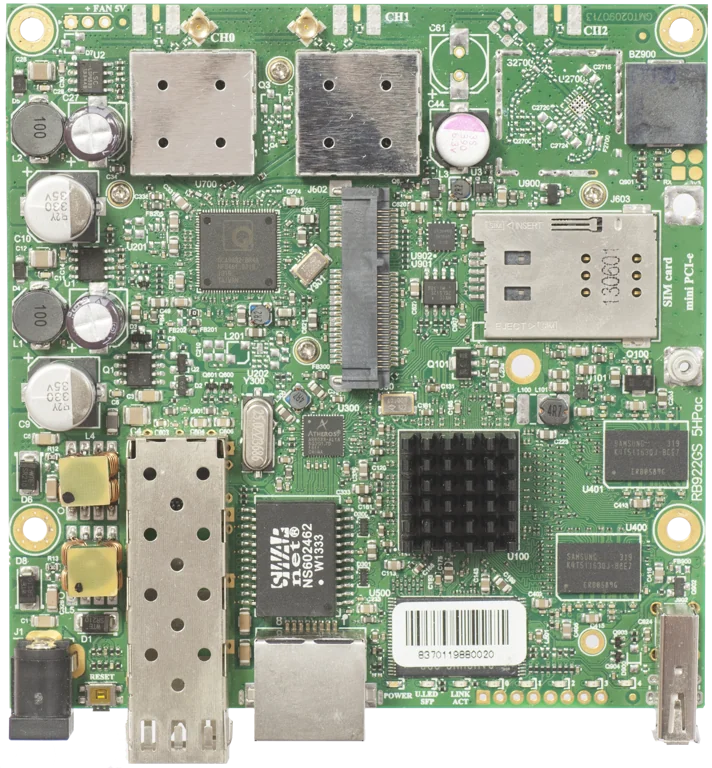

    RB922UAGS-5HPacD

    RouterBOARD RB922UAGS-5HPacD is a very versatile wireless router, perfect for assembling your own solution. It supports the new 802.11ac standard for high speed wireless (up to 866Mbit datarate and 20/40/80MHz channels). The device has ports and slots for many uses: 1x SFP cage, miniPCIe slot with SIM for 3G/4G modem or another wireless card, USB port, Gigabit Ethernet port and two MMCX connectors for the built in powerful 802.11ac 2x2 radio. Comes with RouterOS L4 (AP) license.

    - RB922UAGS-5HPacD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

    - RB922UAGS-5HPacD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

    General

    Details
    Product code RB922UAGS-5HPacD
    CPU QCA9557
    CPU core count 1
    CPU nominal frequency 720 MHz
    Dimensions 105x105mm
    License level 4
    Operating System RouterOS
    Size of RAM 128 MB
    Storage size 128 MB
    Storage type NAND
    Tested ambient temperature -40°C .. +70°C tested
    Architecture MIPS-BE
    Suggested price $99.00

    Powering

    Details
    Max Power consumption 17W
    Number of DC inputs 2 (DC jack, PoE-IN)
    PoE in Passive PoE
    DC jack input Voltage 8-30 V
    PoE in input Voltage 8-30 V

    Wireless

    Details
    Wireless 5 GHz number of chains 2
    Wireless 5 GHz standards 802.11ac
    Wireless 5 GHz chip model QCA9882

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Fiber

    Details
    SFP DDMI yes
    SFP ports 1

    Peripherals

    Details
    Number of SIM slots 1
    MiniPCI-e slots 1
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type USB type A

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes

    Wireless specifications

    5 GHz
    Transmit (dBm)Receive Sensitivity
    6MBit/s31-96
    54MBit/s27-81
    MCS030-96
    MCS727-77
    MCS922-72

    More info

    Ethernet test results

    RB922UAGS-5HPacDQCA9557 1G all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)81.2986.1234.9962.2477.7244.6
    Bridging25 bridge filter rules81.2986.1118.4485.0119.561.2
    Routingnone (fast path)81.2986.1234.9962.2408.2209.0
    Routing25 simple queues81.2986.1158.3648.4165.884.9
    Routing25 ip filter rules64.8786.970.4288.460.931.2
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
    4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
