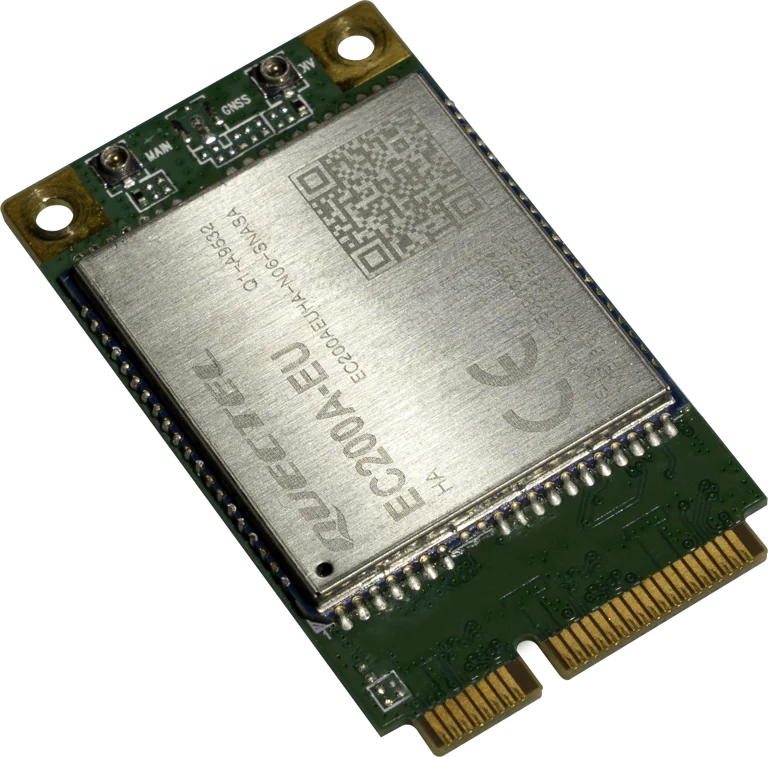

R11eL-EC200A-EU
An extra cost-effective upgrade of our previous R11 LTE4 modem. It offers the same speed (up to 150 Mbps) and features as the earlier version, but the price is even lower now! Also, it supports the popular B28 band.
LTE Cat4
Outdoors
R11eL-EC200A-EU
An extra cost-effective upgrade of our previous R11 LTE4 modem. It offers the same speed (up to 150 Mbps) and features as the earlier version, but the price is even lower now!
This mini-PCIe modem is designed for the EMEA/APAC/Australia regions, and the supported frequencies include the popular B28 band.
Specification
Specifications
- Product code R11eL-EC200A-EU
- Suggested price $65.00
- MTBF Approximately 100'000 hours at 25C
- Tested ambient temperature -35°C to 70°C
Powering
- Max power consumption 3 W
Mobile
- 2G Category Class12
-
2G bands
3 (1800MHz)
8 (900MHz)
- 3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink)
-
3G bands
1 (2100MHz)
5 (850MHz)
8 (900MHz)
- LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
-
LTE FDD bands
1 (2100MHz)
3 (1800MHz)
5 (850MHz)
7 (2600MHz)
8 (900 MHz)
20 (800MHz)
28 (700MHz)
-
LTE TDD bands
38 (2600MHz)
40 (2300MHz)
41n (2500MHz)
- TAC 86314105
Certification & Approvals
- Certification CE, ROHS
- IP IP00
