    LtAP mini Small weatherproof wireless access point with LTE antennas, two SIM slots, integrated GPS and miniPCI-e slot

    The LtAP mini is a small weatherproof wireless access point with integrated LTE antennas (with two u.fl pigtails) and miniPCI-e slot, so you can use your own LTE modem of your choice.

    The LtAP mini also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging. The unit has several powering options: 12-57 V PoE-in by Ethernet port, 8-30 V DC jack and 5 V microUSB.

    LtAP mini has a special enclosure with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains. Use the built in GPS module to track the location of your vehicle in real time, we have even provided a simple tracking application example in the RouterOS documentation, to help you start development of your platform. External GPS antenna is available for ordering separately (not included, product code GPSANT).

     Send purchase questions

    Specifications

    Details
    Product code RB912R-2nD-LTm
    Architecture MIPSBE
    CPU QCA9531
    CPU core count 1
    CPU nominal frequency 650 MHz
    Dimensions 139 x 77 x 28,5 mm
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $99.00

    Powering

    Details
    MicroUSB input Voltage 5 V
    Number of DC inputs 3 (DC jack, PoE-IN, MicroUSB)
    DC jack input Voltage 8-30 V
    Max power consumption 9 W
    Max power consumption without attachments 4 W
    Cooling type Passive
    PoE in 802.3af/at
    PoE in input Voltage 12-57 V

    Wireless specifications

    Details
    Wireless 2.4 GHz Max data rate 300 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n
    Antenna gain dBi for 2.4 GHz 1.5
    Wireless 2.4 GHz chip model QCA9531
    Wireless 2.4 GHz generation Wi-Fi 4

    Ethernet

    Details
    10/100 Ethernet ports 1

    Peripherals

    Details
    Number of SIM slots 2 Modem (Mini SIM)
    MiniPCI-e slots 1
    Serial console port RS232
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type microUSB type AB
    Max USB current (A) 1

    Other

    Details
    Mode button Yes
    GNSS standards GPS
    GPS RF connector type uUFL

    Certification & Approvals

    Details
    Certification CE, FCC, IC, E-MARK, EAC, ROHS
    IP IP54

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s22-96
    11MBit/s22-89
    6MBit/s20-93
    54MBit/s18-74
    MCS020-93
    MCS716-71

    Included parts

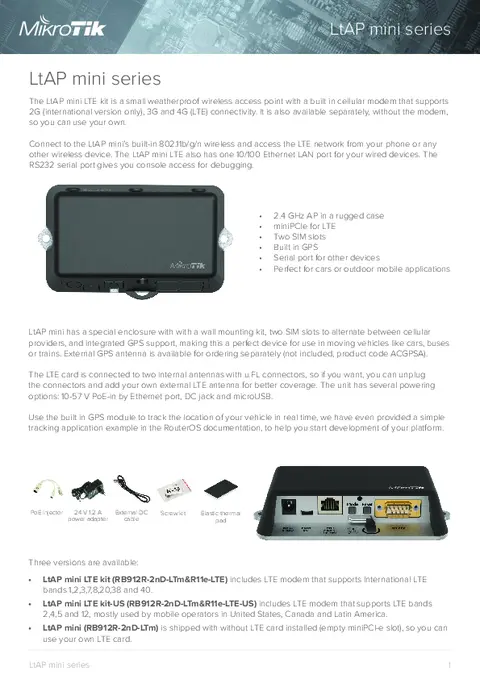

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    Accessory guideOpen
    Block DiagramOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)
    Declaration of conformityOpen (FCC)

    High resolution images

    Ethernet test results

    RB912R-2nD-LTmQCA9531 100M one port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)8.198.423.596.3173.688.9
    Bridging25 bridge filter rules8.198.423.596.370.936.3
    Routingnone (fast path)8.198.423.596.3160.882.3
    Routing25 simple queues8.198.423.596.390.846.5
    Routing25 ip filter rules8.198.423.596.343.222.1
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
