RB411U

300MHz CPU, 32MB RAM, 1xEthernet, miniPCI, USB, RouterOS L4

Mini PCI-e

Outdoors

PoE

Specification Find retailer

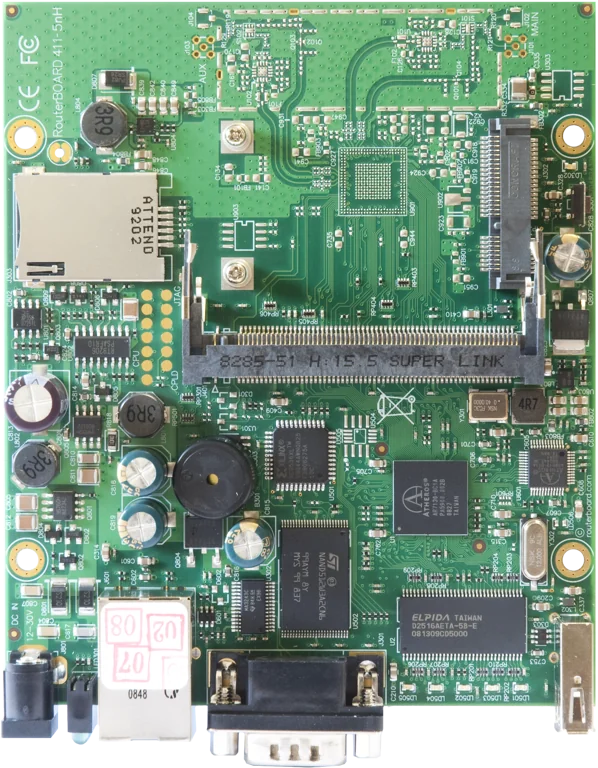

RB411U

The RB411U is a versatile yet very small device. It includes all - a miniPCI slot (for 802.11 wireless cards), a USB 2.0 port and a miniPCIe slot for connecting a 3G card (does not support 802.11 wireless cards). A SIM card slot for 3G is also present on the RB411U.

RB411U includes RouterOS - the operating system, which can be a router, firewall, bandwidth manager, a mobile 3G router, and more - all at the same time.

You can use the USB port to attach a secondary storage device, or a USB 3G modem. The RB411U mounting holes are in the same location as other RB411 models, so you can easily mount it into any supported outdoor case/antenna.

Specification

Specifications

Product code RB411U
Suggested price $79.00
Architecture MIPSBE
CPU AR7161
CPU core count 1
CPU nominal frequency 300 MHz
RouterOS license 4
Operating System RouterOS
Size of RAM 32 MB
Storage size 64 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -30°C to 70°C

Powering

Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 10-28 V
Max power consumption 12 W
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 10-28 V

Ethernet

10/100 Ethernet ports 1

Peripherals

Number of SIM slots 1 Modem (Mini SIM)
MiniPCI slots 1
MiniPCI-e slots 1
Serial console port RS232
Number of USB ports 1
USB slot type USB type A
Max USB current (A) 1

Other

Voltage Monitor Yes
Beeper Yes

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

RB411U		AR7130 100M 1 port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none	8.1	98.6	23.5	96.3	97.3	49.8
Bridging	25 bridge filter rules	8.1	98.6	23.5	96.3	41.0	21.0
Routing	none	8.1	98.6	23.5	96.3	79.4	40.7
Routing	25 simple queues	8.1	98.6	23.5	96.3	67.8	34.7
Routing	25 ip filter rules	8.1	98.6	23.5	96.3	24.7	12.6

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
