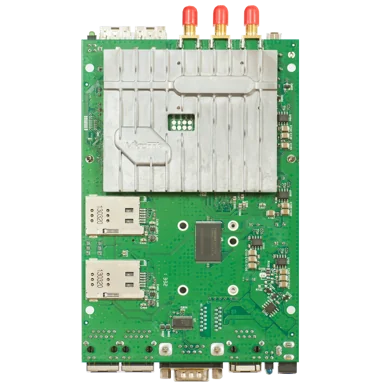

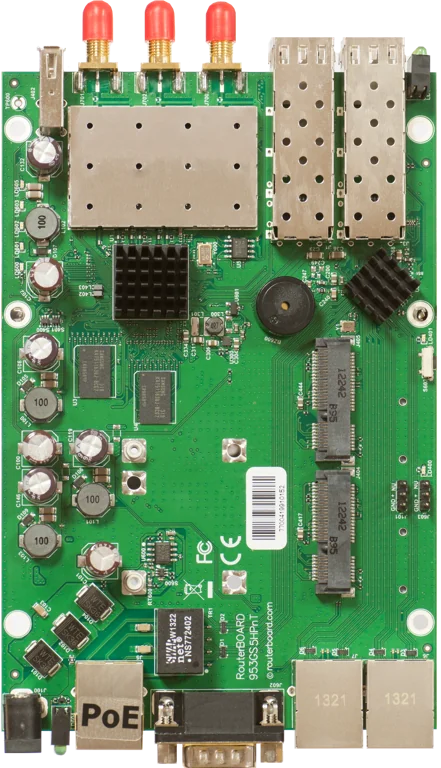

    RB953GS-5HnT-RP

    RouterBOARD 953GS-5HnT-RP is our first product with 5GHz 3x3 MIMO Triple Chain support. It has a powerful Atheros QCA9558 CPU 802.11a/n wireless support with three RPSMA connectors.

    RB953GS-5HnT is equipped with a new Scorpion 720Mhz CPU, 128MB RAM and three Gigabit Ethernet ports, to take advantage of high-speed 3x3 MIMO wireless. Moreover, it comes with two SFP cages to accommodate FTTH and fiber ring requirements.

    Handy additions are two miniPCI-express slots and two SIM slots, for multiple 3G/4G connections or wireless expansion.

    Unit comes with preinstalled RouterOS Level5 license.

    - RB953GS-5HnT-RP-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

    - RB953GS-5HnT-RP (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

    Specifications

    Details
    Product code RB953GS-5HnT-RP
    Architecture MIPSBE
    CPU QCA9558
    CPU core count 1
    CPU nominal frequency 720 MHz
    Dimensions 183x105x24mm
    License level 5
    Operating System RouterOS
    Size of RAM 128 MB
    Storage size 128 MB
    Storage type NAND
    Tested ambient temperature -40°C .. +70°C tested
    Suggested price $169.00

    Powering

    Details
    Max Power consumption 25W
    PoE in Passive PoE
    PoE in input Voltage 11-30 V
    Number of DC inputs 2 (DC jack, PoE-IN)
    DC jack input Voltage 11-30 V

    Wireless

    Details
    Wireless 5 GHz number of chains 3
    Wireless 5 GHz standards 802.11a/n
    Wireless 5 GHz chip model QCA9558

    Ethernet

    Details
    10/100/1000 Ethernet ports 3

    Fiber

    Details
    SFP ports 2

    Peripherals

    Details
    Number of SIM slots 2 Modem (Mini SIM)
    MiniPCI-e slots 2
    Number of USB ports 1
    Serial port RS232
    USB Power Reset Yes
    USB slot type USB type A

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes

    Wireless specifications

    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s32
    54MBit/s30
    MCS032
    MCS729

    More info

    Ethernet test results

    RB953GS-5HnT-RPQCA9558 1G all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)161.91,966.1345.51,415.2435.6223.0
    Bridging25 bridge filter rules125.51,524.1126.5518.1128.865.9
    Routingnone (fast path)161.91,966.1334.21,368.9397.9203.7
    Routing25 simple queues161.91,966.1183.9753.3203.3104.1
    Routing25 ip filter rules78.1948.477.8318.777.539.7
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
    4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    Download: Full CE declaration (PDF)

    Information about RB953GS-5HnT-RP

    [BG] Bulgarian С настоящето, "Mikrotikls SIA", декларира, че RB953GS-5HnT-RP е в съответствие със съществените изисквания и другитеприложими разпоредби на Директива 2014/53/EC.
    [CZ] Czech "Mikrotikls SIA" tímto prohlašuje, že RB953GS-5HnT-RP splňuje základní požadavky a všechna příslušná ustanoveni Směrnice 2014/53/ES.
    [DK] Danish Undertegnede "Mikrotikls SIA" erklærer herved, at følgende udstyr RB953GS-5HnT-RP overholder de væsentlige krav og øvrige relevante krav i direktiv 2014/53/EF.
    [DE] German Hiermit erklärt "Mikrotikls SIA", dass sich das Gerät RB953GS-5HnT-RP in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 2014/53/EG befindet.
    [EE] Estonian Käesolevaga kinnitab "Mikrotikls SIA" seadme RB953GS-5HnT-RP vastavust direktiivi 2014/53/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
    [GR] Greek ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Ο ΚΑΤΑΣΚΕΥΑΣΤΗΣ "Mikrotikls SIA" ΔΗΛΩΝΕΙ ΟΤΙ RB953GS-5HnT-RP ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 2014/53/ΕΚ
    [EN] English Hereby, "Mikrotikls SIA", declares that this RB953GS-5HnT-RP is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EC.
    [ES] Spanish Por la presente, "Mikrotikls SIA", declara que este RB953GS-5HnT-RP cumple con los requisitos esenciales y otras exigencias relevantes de la Directiva 2014/53/EC.
    [IT] Italian Con la presente "Mikrotikls SIA" dichiara che questo RB953GS-5HnT-RP è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 2014/53/CE.
    [LV] Latvian Ar šo "Mikrotikls SIA" deklarē, ka RB953GS-5HnT-RP atbilst Direktīvas 2014/53/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
    [LT] Lithuanian Šiuo "Mikrotikls SIA" deklaruoja, kad šis RB953GS-5HnT-RP atitinka esminius reikalavimus ir kitas 2014/53/EB Direktyvos nuostatas
    [HU] Hungarian A "Mikrotikls SIA" ezzennel kijelenti, hogy a RB953GS-5HnT-RP típusú beren-dezés teljesíti az alapvető követelményeket és más 2014/53/EK irányelvben meghatározott vonatkozó rendelkezéseket.
    [NL] Dutch Hierbij verklaart "Mikrotikls SIA" dat het toestel l RB953GS-5HnT-RP in overeenstemming is met de essentiële eisen en de andere relevante bepalin-gen van richtlijn 2014/53/EG.
    [PL] Polish Niniejszym "Mikrotikls SIA" deklaruje że RB953GS-5HnT-RP jest zgodny z zasadniczymi wymaganiami i innymi właściwymi postanowieniami Dyrektywy 2014/53/EC.
    [PT] Portuguese Eu, "Mikrotikls SIA", declaro que o RB953GS-5HnT-RP cumpre os requisitos essenciais e outras provisões relevantes da Directiva 2014/53/EC.
    [RO] Romanian Prin prezenta, "Mikrotikls SIA", declară că aparatul RB953GS-5HnT-RP este în conformitate cu cerinţele esenţiale şi cu alte prevederi pertinente ale Directivei 2014/53/CE..
    [SK] Slovak "Mikrotikls SIA" týmto vyhlasuje, že RB953GS-5HnT-RP spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 2014/53/ES.
    [SI] Slovenian "Mikrotikls SIA" izjavlja, da je ta RB953GS-5HnT-RP v skladu z bistvenimi zahtevami in drugimi relevantnimi določili direktive 2014/53/ES.
    [FI] Finish "Mikrotikls SIA" vakuuttaa täten että RB953GS-5HnT-RP tyyppinen laite on direktiivin 2014/53/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
    [SE] Swedish Denna utrustning är i överensstämmelse med de väsentliga kraven och andra relevanta bestämmelser i direktiv 2014/53/EC.
    [NO] Norwegian "Mikrotikls SIA", Erklærer herved at RB953GS-5HnT-RP er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 2014/53/EF.
    ×
