R11e-LTE6
2G/3G/4G/LTE miniPCI-e card with carrier aggregation support (up to 300 Mbps) for bands 1/2/3/5/7/8/12/17/20/25/26/38/39/40/41n
LTE Cat6
Outdoors

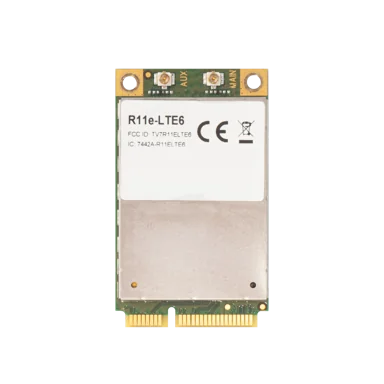

R11e-LTE6
The R11e-LTE6 is an LTE CAT6 modem that delivers up to 300 Mbps downlink and 50 Mbps uplink data rate with 3G and 2G network fallback. CAT6 also features carrier aggregation and allows the device to use multiple bands at the same time. This miniPCIe form factor modem is designed for international bands. It can be used with any of our products that have miniPCIe slot (exceptions RB800 and RB4011).
Specification
Specifications
- Product code R11e-LTE6
- Suggested price $109.00
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -30°C to 70°C
Powering
- Max power consumption 5 W
Mobile
- 2G Category Class12
-
2G bands
2 (1900MHz)
3 (1800MHz)
5 (850MHz)
8 (900MHz)
- 3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
-
3G bands
1 (2100MHz)
2 (1900MHz)
5 (850MHz)
8 (900MHz)
- LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
-
LTE FDD bands
1 (2100MHz)
2 (1900MHz)
3 (1800MHz)
7 (2600MHz)
8 (900 MHz)
20 (800MHz)
5 (850MHz)
12 (700MHz)
17 (700MHz)
25 (1900MHz)
26 (850MHz)
-
LTE TDD bands
38 (2600MHz)
40 (2300MHz)
39 (1900MHz)
41n (2500MHz)
- TAC 35666210
Certification & Approvals
- Certification CE, FCC, IC, ROHS
- IP IP00
