    Intercell 10 B38+B39 Outdoor TDD-LTE dual carriers base station for bands 38 and 39

    The Intercell 10 B38+B39 is an outdoor TDD-LTE dual carriers base station with 2*(2*10W) output power (each carrier supports 2x2 MIMO with 10W output each RF channel ). The unit is compact, light weight, and easy to deploy. The Intercell 10 B38+B39 offers excellent performance, helping operators provide better coverage and higher capacity with minimal effort.

    • Standard TDD bands 38 and 39

    • Peak data rate of each carrier (20 MHz)

    -DL 140Mbps (256QAM,SF2)

    -UL 30Mbps (64QAM,SF1)

    • Peak data rate of carrier aggregation (20 MHz)

    -DL 280Mbps (256QAM,SF2)

    -UL 60Mbps (64QAM,SF1)

    • Maximum 2 * 192 RRC connected users and 2 * 96 active users

    • 5/10/15/20 MHz operation bandwidth

    • All IP based backhaul, many IP backhaul methods can be used, including RJ45 Ethernet, SFP

    • Plug-and-play with SON features, including self-configuration/self-optimization/self-healing

    • High transmission power to extend NLOS coverage, low power consumption to save OPEX.

     Send purchase questions

    Specifications

    Details
    Product code P02003-B38B39-10W
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40ºC to +55ºC
    Suggested price $3500.00

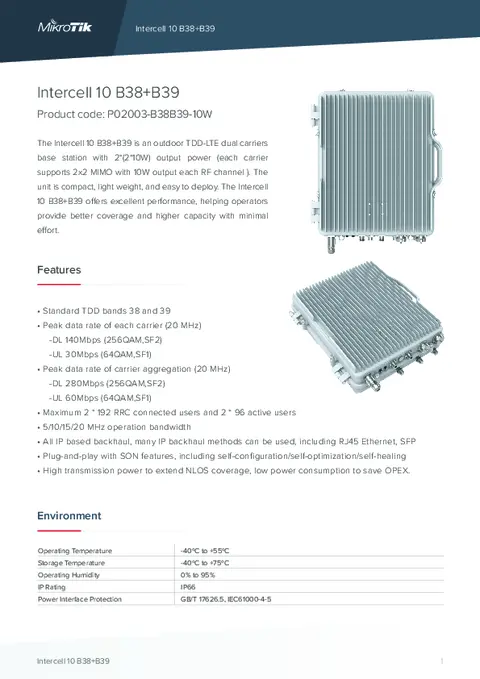

    BrochureOpen
    User ManualOpen
