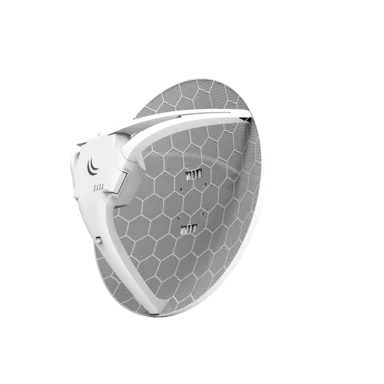

LHG LTE kit

LHG 2G/3G/4G/LTE High gain 17dBI CPE for very remote areas, International bands

IP 54

LTE Cat4

Mini PCI-e

Outdoors

PoE

Specification Find retailer

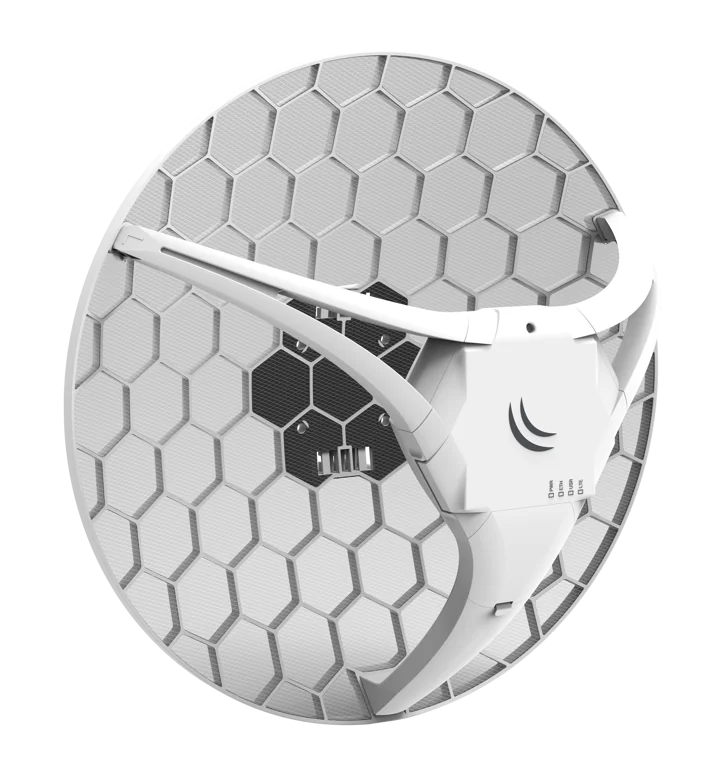

LHG LTE kit

The LHG LTE kit is a device for remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any high enough structure, and connect even where cell phones can’t. Due to it’s large sized high gain antenna, the device is capable to connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.

The unit is equipped with one Ethernet port, has a built in high quality Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink.

RBLHGR&R11e-LTE includes LTE modem that supports International LTE bands 1, 2, 3, 7, 8, 20, 38 and 40.

Specification

Specifications

Product code RBLHGR&R11e-LTE
Suggested price $179.00
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 391 x 391 x 227 mm
RouterOS license 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 50°C

Powering

Number of DC inputs 1 (PoE-IN)
Max power consumption 6 W
PoE in 802.3af/at
Cooling type Passive
PoE in input Voltage 12-57 V

Mobile

2G Category Class12
2G bands 2 (1900MHz)
3 (1800MHz)
5 (850MHz)
8 (900MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands 1 (2100MHz)
2 (1900MHz)
5 (850MHz)
8 (900MHz)
LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands 1 (2100MHz)
2 (1900MHz)
3 (1800MHz)
7 (2600MHz)
8 (900 MHz)
20 (800MHz)
LTE TDD bands 38 (2600MHz)
40 (2300MHz)
TAC 35565409

Ethernet

10/100 Ethernet ports 1

Peripherals

Number of SIM slots 1 Modem (Micro SIM)
MiniPCI-e slots 1

Other

Mode button Yes

Certification & Approvals

Certification CE, EAC, ROHS
IP IP54

Included parts

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

RBLHGR&R11e-LTE		QCA9531 100M one port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	8.1	98.4	23.5	96.3	173.6	88.9
Bridging	25 bridge filter rules	8.1	98.4	23.5	96.3	70.9	36.3
Routing	none (fast path)	8.1	98.4	23.5	96.3	160.8	82.3
Routing	25 simple queues	8.1	98.4	23.5	96.3	90.8	46.5
Routing	25 ip filter rules	8.1	98.4	23.5	96.3	43.2	22.1

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
