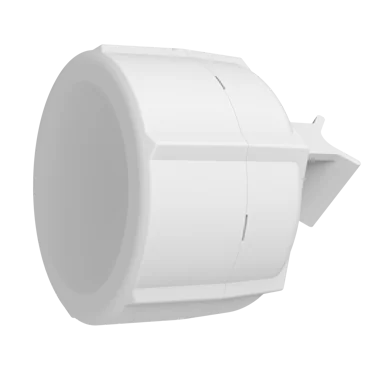

SXT LTE6 kit
The evolution of affordable connectivity in remote areas
SXT LTE6 kit is a device for remote locations that are within cellular network coverage. Due to its advanced LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones fail.
The new SXT LTE6 features a CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.
The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. It also has two Micro SIM slots for backup link. Unit is shipped with a 24 V power supply, but can support full range 18-57 V and is 802.3af/at compliant.
Specification
- Product code RBSXTR&R11e-LTE6
- Suggested price $169.00
- Architecture MIPSBE
- CPU QCA9531
- CPU core count 1
- CPU nominal frequency 650 MHz
- Switch chip model QCA9531
- RouterOS license 3
- Operating System RouterOS
- Size of RAM 64 MB
- Storage size 16 MB
- Storage type FLASH
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -30°C to 60°C
- Number of DC inputs 1 (PoE-IN)
- Max power consumption 21 W
- Max power consumption without attachments 7 W
- PoE in 802.3af/at
- Cooling type Passive
- PoE in input Voltage 12-57 V
- PoE-out ports Ether2
- PoE out Passive PoE up to 57V
- Low voltage PoE-Out current limit 600 mA
- High voltage PoE-Out current limit 400 mA
- Max total out (A) 600 mA
- 2G Category Class12
-
2G bands
2 (1900MHz)
3 (1800MHz)
5 (850MHz)
8 (900MHz)
- 3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
-
3G bands
1 (2100MHz)
2 (1900MHz)
5 (850MHz)
8 (900MHz)
- LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
-
LTE FDD bands
1 (2100MHz)
2 (1900MHz)
3 (1800MHz)
7 (2600MHz)
8 (900 MHz)
20 (800MHz)
5 (850MHz)
12 (700MHz)
17 (700MHz)
25 (1900MHz)
26 (850MHz)
-
LTE TDD bands
38 (2600MHz)
40 (2300MHz)
39 (1900MHz)
41n (2500MHz)
- TAC 35666210
- 10/100 Ethernet ports 2
- Number of SIM slots 2 Modem (Micro SIM)
- MiniPCI-e slots 1
- Mode button Yes
- Certification CE, EAC, ROHS
- IP IP54
| RBSXTR&R11e-LTE6r2 | QCA9531 100M two port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 16.3 | 197.9 | 47.0 | 192.5 | 297.6 | 152.4 |
| Bridging | 25 bridge filter rules | 16.3 | 197.9 | 47.0 | 192.5 | 80.4 | 41.2 |
| Routing | none (fast path) | 16.3 | 197.9 | 47.0 | 192.5 | 233.1 | 119.3 |
| Routing | 25 simple queues | 16.3 | 197.9 | 47.0 | 192.5 | 131.4 | 67.3 |
| Routing | 25 ip filter rules | 16.3 | 197.9 | 47.0 | 192.5 | 49.1 | 25.1 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
