Discontinued
LtAP LTE6 kit
An upgrade of the heavy-duty LTE access point with GPS support
Automotive
IP 54
LTE Cat6
Mini PCI-e
Outdoors
PoE

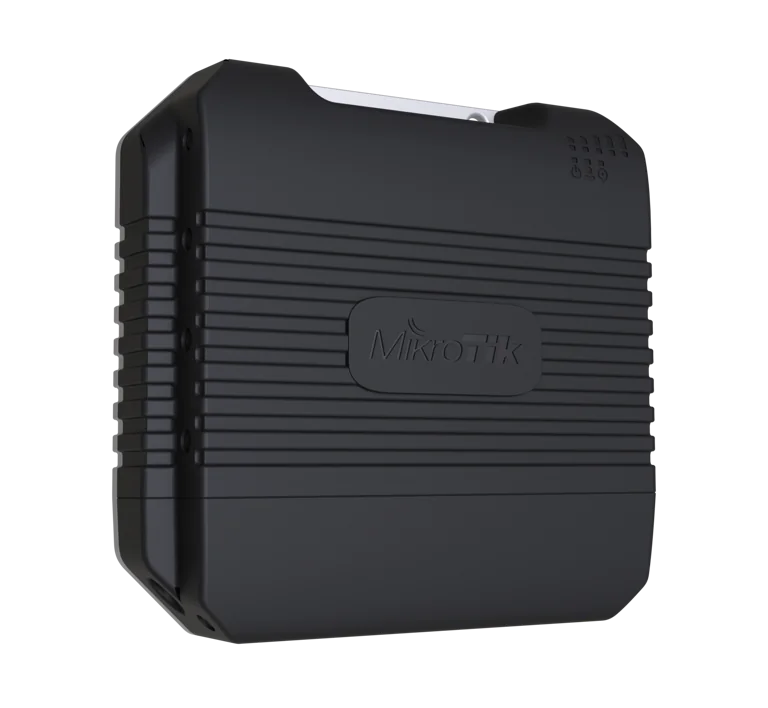

LtAP LTE6 kit
LtAP LTE6 kit is a compact 4G (LTE) capable weatherproof wireless access point – perfect for busy urban environment or off-the-grid outdoors networking. It has a built-in CAT6 cellular modem that supports 4G (LTE) connectivity out of the box – with up to 300 Mbps download speed!
• 2.4 GHz AP in a rugged case
• LTE installed in miniPCIe slot
• Second miniPCIe slot for expansions
• Three Mini SIM slots
• Gigabit Ethernet port
• Built-in GPS
• Many powering options (DC jack, POE-in, automotive)
• Serial port and full size USB for other devices
• Perfect for cars or outdoor mobile applications
CAT6 also enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside.
Specification
Specifications
- Product code RBLtAP-2HnD&R11e-LTE6
- Suggested price $269.00
- Architecture MMIPS
- CPU MT7621A
- CPU core count 2
- CPU nominal frequency 880 MHz
- CPU Threads count 4
- RouterOS license 4
- Operating System RouterOS
- Size of RAM 128 MB
- Storage size 16 MB
- Storage type FLASH
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -30°C to 70°C
Powering
- Number of DC inputs 3 (DC jack, PoE-IN, Automotive)
- DC jack input Voltage 12-30 V
- Automotive input Voltage 12-27 V
- Max power consumption 24 W
- Max power consumption without attachments 12 W
- PoE in Passive PoE
- Cooling type Passive
- PoE in input Voltage 12-30 V
Mobile
- 2G Category Class12
-
2G bands
2 (1900MHz)
3 (1800MHz)
5 (850MHz)
8 (900MHz)
- 3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
-
3G bands
1 (2100MHz)
2 (1900MHz)
5 (850MHz)
8 (900MHz)
- LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
-
LTE FDD bands
1 (2100MHz)
2 (1900MHz)
3 (1800MHz)
7 (2600MHz)
8 (900 MHz)
20 (800MHz)
5 (850MHz)
12 (700MHz)
17 (700MHz)
25 (1900MHz)
26 (850MHz)
-
LTE TDD bands
38 (2600MHz)
40 (2300MHz)
39 (1900MHz)
41n (2500MHz)
- TAC 35666210
Wireless specifications
- Wireless 2.4 GHz Max data rate 300 Mbit/s
- Wireless 2.4 GHz Number of chains 2
- Wireless 2.4 GHz standards 802.11b/g/n
- Antenna gain dBi for 2.4 GHz 2.5
- Wireless 2.4 GHz chip model AR9382
- Wireless 2.4 GHz generation Wi-Fi 4
Ethernet
- 10/100/1000 Ethernet ports 1
Peripherals
- Number of SIM slots 3 Modem (Mini SIM)
- MiniPCI-e slots 2
- Serial console port RS232
- Number of USB ports 1
- USB Power Reset Yes
- USB slot type USB type A
- Max USB current (A) 1
Other
- PCB temperature monitor Yes
- Voltage Monitor Yes
- GNSS standards GPS
Certification & Approvals
- Certification CE, FCC, IC, E-MARK, EAC, ROHS
- IP IP54
Included parts
Note
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
Wireless Specification
2.4 GHz
Transmit (dBm)
Receive Sensitivity
1MBit/s
25
-100
11MBit/s
25
-94
6MBit/s
26
-96
54MBit/s
23
-78
MCS0
26
-96
MCS7
22
-73
Ethernet test results
| RBLtAP-2HnD&R11e-LTE6 | MT7621A (880Mhz) 1G one port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.1 | 984.9 | 233.3 | 955.6 | 717.9 | 367.6 |
| Bridging | 25 bridge filter rules | 81.1 | 984.9 | 133.1 | 545.2 | 133.1 | 68.1 |
| Routing | none (fast path) | 81.1 | 984.9 | 233.3 | 955.6 | 859.5 | 440.1 |
| Routing | 25 simple queues | 81.1 | 984.9 | 116.9 | 478.8 | 119 | 60.9 |
| Routing | 25 ip filter rules | 70.8 | 859.8 | 74.6 | 305.6 | 73.5 | 37.6 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
IPsec test results
| RBLtAP-2HnD&R11e-LTE6 | MT7621A IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 20.7 | 231.8 | 21.5 | 88.1 | 21.3 | 11.6 |
| 256 tunnels | AES-128-CBC + SHA1 | 12.1 | 135.5 | 12.3 | 50.4 | 12.7 | 6.9 |
| 256 tunnels | AES-128-CBC + SHA256 | 12.2 | 136.6 | 12.4 | 50.8 | 12.4 | 6.7 |
| 256 tunnels | AES-256-CBC + SHA1 | 12.1 | 135.5 | 12.3 | 50.4 | 12.4 | 6.7 |
| 256 tunnels | AES-256-CBC + SHA256 | 10.5 | 117.6 | 12.6 | 51.6 | 12.4 | 6.7 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
