    BaseBox 6 6GHz integrated AP/Backbone/CPE, 2xRPSMA connectors, miniPCI-e slot, Gigabit Ethernet

    Discontinued

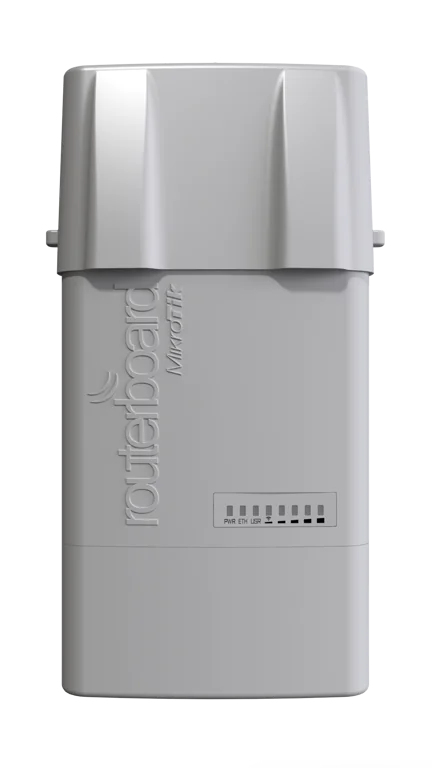

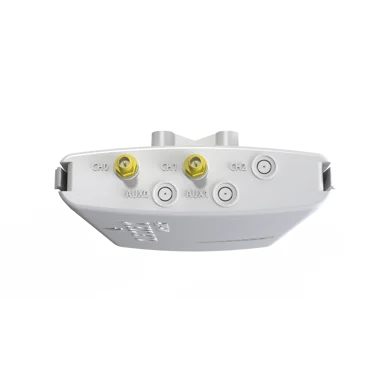

    The BaseBox 6 in an outdoor wireless device, based on our popular RB912 model, fitted with two SMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the BaseBox miniPCIe slot for one more wireless interface to make a dual band device, or a 3G/4G modem.

    Designed to use as an 6GHz AP with our 6GHz CPEs, like DynaDish 6 and SXT 6.

    IMPORTANT! Product is available for 5.9-6.4GHz license holders only, you would need to show your license to Distributor to be able to place your order.

    This product is not suitable for unlicensed ISM bands. Device use is subject to country regulations. Availability might be limited depending on distributor stock and country regulations.

     Send purchase questions

    Specifications

    Details
    Product code RB912UAG-6HPnD-OUT
    Architecture MIPSBE
    CPU AR9342
    CPU core count 1
    CPU nominal frequency 600 MHz
    Dimensions 246 x 135 x 50 mm
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $89.00

    Powering

    Details
    Number of DC inputs 1 (PoE-IN)
    Max power consumption 23 W
    Max power consumption without attachments 12 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 10-30 V

    Wireless specifications

    Details
    Wireless 6 GHz Max data rate 300 Mbit/s
    Wireless 6 GHz number of chains 2
    Wireless 6 GHz standards 802.11a/n
    Wireless 6 GHz chip model AR9342
    Wireless 6 GHz generation Wi-Fi 4

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Peripherals

    Details
    Number of SIM slots 1 Modem (Mini SIM)
    MiniPCI-e slots 1
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type USB type A
    Max USB current (A) 1

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes
    Beeper Yes

    Certification & Approvals

    Details
    Certification EAC
    IP IP54

    Wireless specifications

    6 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s30-93
    54MBit/s26-80
    MCS029-93
    MCS723-76

    Included parts

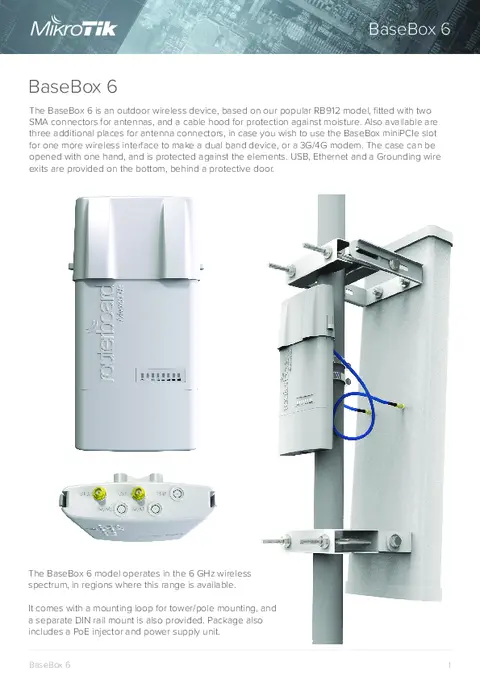

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    Mounting dimensionsOpen
    Block DiagramOpen
    RouterOS software manualOpen

    High resolution images

    Ethernet test results

    RB912UAG-6HPnD-OUTAR9342 1G 1 port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)81.0983.7232.0950.3269.6138.0
    Bridging25 bridge filter rules81.0983.786.0352.387.644.9
    Routingnone (fast path)81.0983.7210.0860.2226.9116.2
    Routing25 simple queues81.0983.7103.9425.6106.654.6
    Routing25 ip filter rules56.8689.859.6244.160.531.0
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
