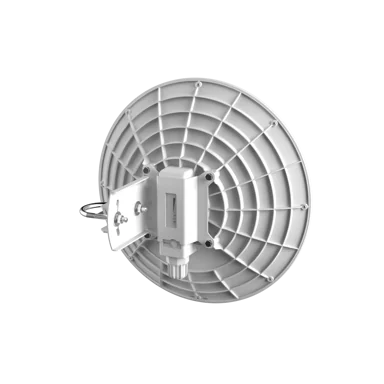

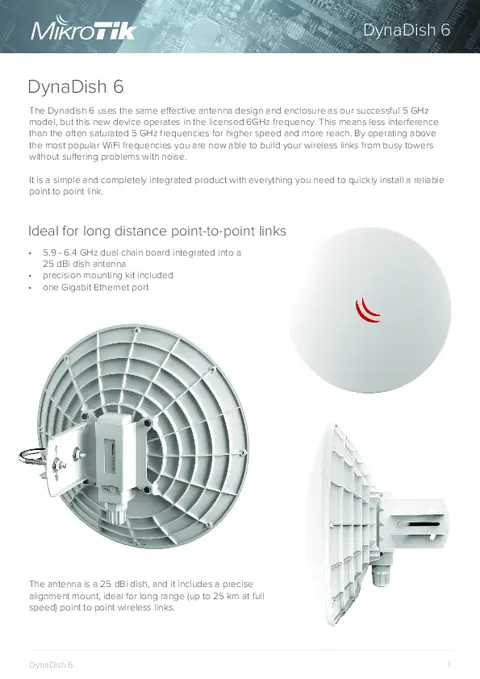

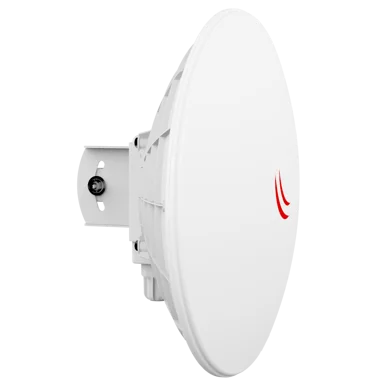

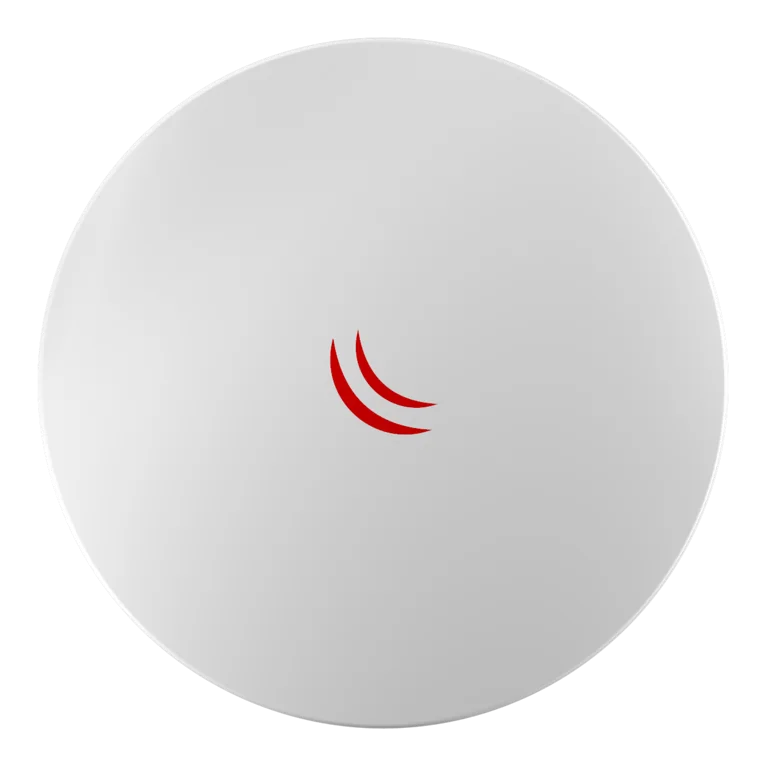

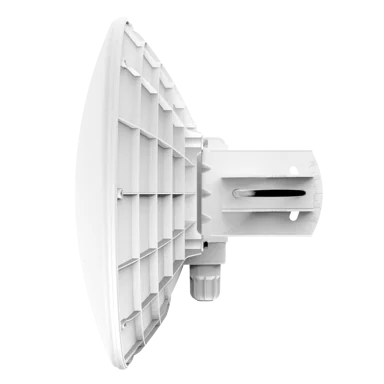

    DynaDish 6

    The Dynadish 6 uses the same effective antenna design and enclosure as our successful 5 GHz model, but this new device operates in the licensed 6GHz frequency. This means less interference than the often saturated 5 GHz frequencies for higher speed and more reach. By operating above the most popular WiFi frequencies you are now able to build your wireless links from busy towers without suffering problems with noise.

    It is a simple and completely integrated product with everything you need to quickly install a reliable point to point link.

    This product is not suitable for unlicensed ISM bands. Device use is subject to country regulations. Availability might be limited depending on distributor stock and country regulations.

    Specifications

    Details
    Product code RBDynaDishG-6HnD
    Architecture MIPSBE
    CPU AR9344
    CPU core count 1
    CPU nominal frequency 600 MHz
    Dimensions Ø 404 mm
    License level 4
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    Tested ambient temperature -40 to 70° C
    Suggested price $179.00

    Powering

    Details
    Max Power consumption 10W
    PoE in Passive PoE
    PoE in input Voltage 12-30 V
    Number of DC inputs 1 (PoE-IN)

    Wireless

    Details
    Wireless 6 GHz number of chains 2
    Wireless 6 GHz standards 802.11a/n
    Antenna gain dBi for 6 GHz 25
    Wireless 6 GHz chip model AR9344

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Peripherals

    Details
    USB Power Reset Yes

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes

    Wireless specifications

    6 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s30-93
    54MBit/s27-80
    MCS029-93
    MCS724-76

    More info

    Ethernet test results

    RBDynaDishG-6HnDAR9344 1G 1 port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)81.0983.7232.0950.3269.6138.0
    Bridging25 bridge filter rules81.0983.786.0352.387.644.9
    Routingnone (fast path)81.0983.7210.0860.2226.9116.2
    Routing25 simple queues81.0983.7103.9425.6106.654.6
    Routing25 ip filter rules56.8689.859.6244.160.531.0
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
    4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
