NetMetal 5

Dual chain 5GHz integrated 802.11a/n/ac AP/Backbone/CPE with an additional miniPCI-e slot, 2xRPSMA connectors, Gigabit Ethernet, waterproof metal enclosure

IP 54

Mini PCI-e

Outdoors

PoE

SFP/SFP+

Specification Find retailer

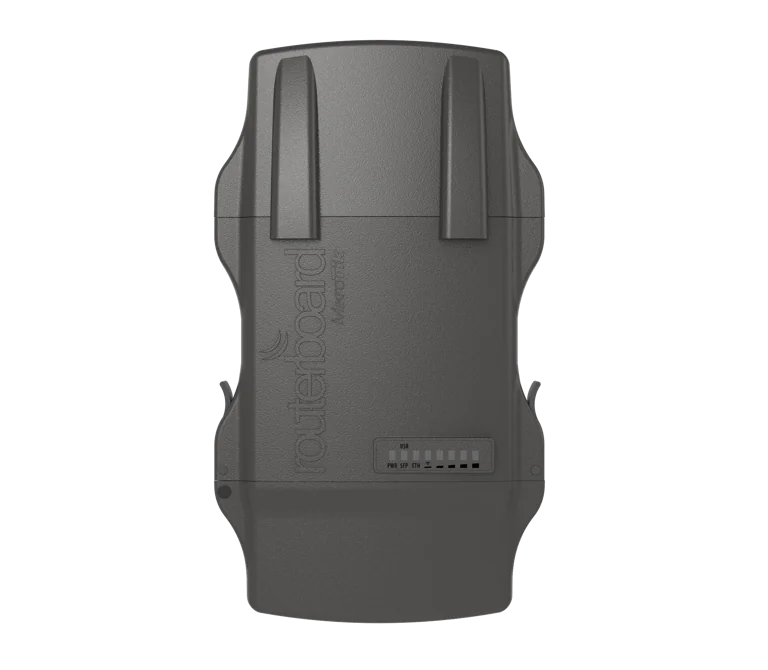

NetMetal 5

This NetMetal version is equipped with a miniPCI-express slot a SIM slot for 3G/4G device or additional wireless card, a high power 2x2 dual chain 802.11ac wireless and two RP-SMA Female (outside thread) connectors for external antennas

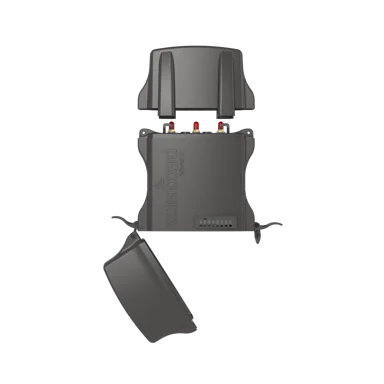

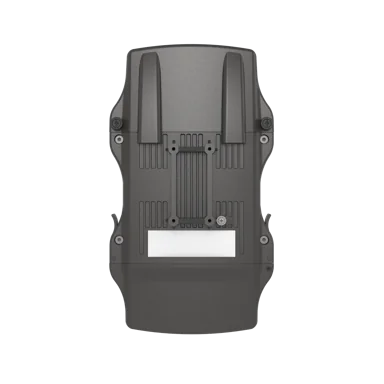

The NetMetal is a 802.11ac wireless device in a waterproof metal enclosure (IP54). Its rugged design is made to withstand the toughest conditions, but at the same time is easy to use and can be opened and closed with one hand. The solid aluminum enclosure also works as a reliable heat-sink for its high output power radio.

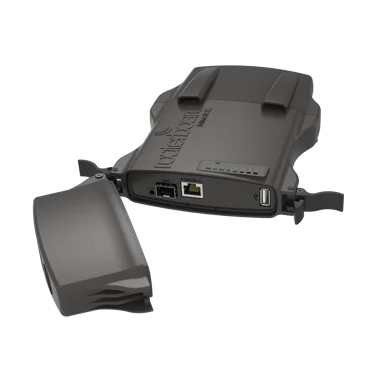

The NetMetal is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA Female (outside thread) connectors for external antennas and RouterOS L4 license.

- RB922UAGS-5HPacD-NM-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- RB922UAGS-5HPacD-NM (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specification

Specifications

Product code RB922UAGS-5HPacD-NM
Suggested price $149.00
Architecture MIPSBE
CPU QCA9557
CPU core count 1
CPU nominal frequency 720 MHz
Dimensions 143x247x48mm (PCB)
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Number of DC inputs 1 (PoE-IN)
Max power consumption 19 W
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 8-30 V

Wireless specifications

Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz Number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Wireless 5 GHz chip model QCA9882
Wireless 5 GHz generation Wi-Fi 5

Ethernet

10/100/1000 Ethernet ports 1

Fiber

SFP DDMI yes
SFP ports 1

Peripherals

Number of SIM slots 1 Modem (Mini SIM)
MiniPCI-e slots 1
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other

PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes

Certification & Approvals

Certification FCC, IC
IP IP54

Included parts

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

5 GHz

Transmit (dBm)

Receive Sensitivity

6MBit/s

-96

54MBit/s

-81

MCS0

-96

MCS7

-77

MCS9

-72

RB922UAGS-5HPacD-NM		QCA9557 1G all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	81.2	986.1	234.9	962.2	477.7	244.6
Bridging	25 bridge filter rules	81.2	986.1	118.4	485.0	119.5	61.2
Routing	none (fast path)	81.2	986.1	234.9	962.2	408.2	209.0
Routing	25 simple queues	81.2	986.1	158.3	648.4	165.8	84.9
Routing	25 ip filter rules	64.8	786.9	70.4	288.4	60.9	31.2

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
