mANT 19S Dual-polarization 5Ghz 19dBi 120 degree beamwidth antenna with two RP-SMA connectors

    The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device.

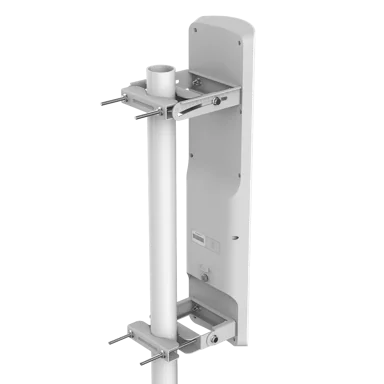

    The mANT is a dual-polarization 19dBi 120 degree beamwidth antenna with two RP-SMA connectors. It comes with metallic U bolt type mounts.

     Send purchase questions

    Product specifications

    Product code MTAS-5G-19D120
    Beamwidth 120 deg (azimuth) 5 deg (elevation)
    Connector two RP-SMA
    Cross Polarization >30 dB
    Diameter x Depth 152 x 598 x 78 mm
    Frequency Range 5.17 - 5.825 GHz
    Front-to-Back Ratio >30 dB
    MTBF Approximately 100'000 hours at 25C
    Polarization Vertical and horizontal
    Port to Port Isolation >40 dB min
    VSWR 1.43 typ, 1.8 max
    Weight 1270 g
    Suggested price $99
    Horizontal ElevationOpen
    Assembly instructionsOpen
    Horizontal AzimuthOpen
    ANT file (horizontal)Open
    ANT file (vertical)Open
    Vertical ElevationOpen
    Vertical AzimuthOpen
