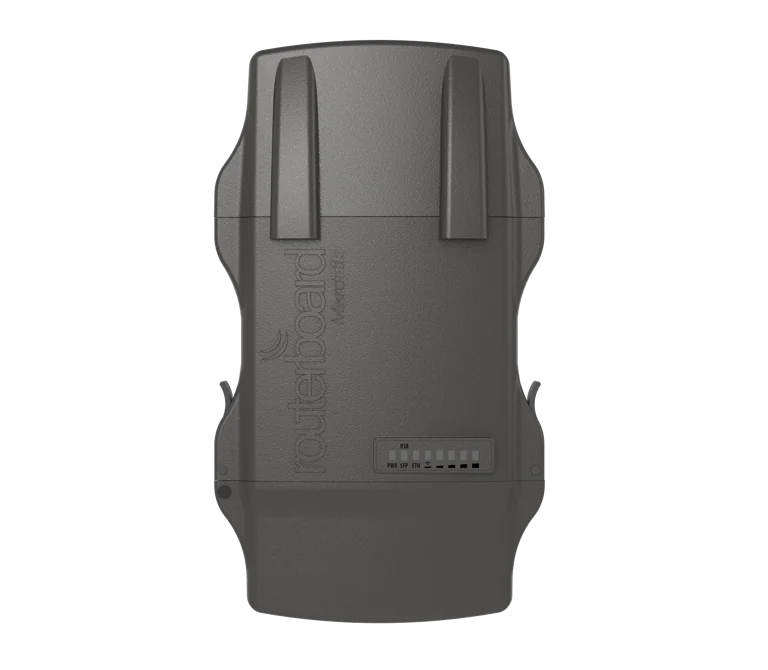

    NetMetal 5SHP Dual chain 5GHz integrated 802.11ac AP/Backbone/CPE, 2xRPSMA connectors, high TX power, Gigabit Ethernet, waterproof metal enclosure

    Discontinued


    This NetMetal version is equipped with super high power 1.3W 2x2 dual chain 802.11a/n/ac wireless and two RP-SMA connectors for external antennas

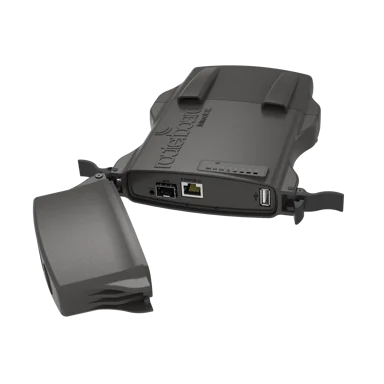

    The NetMetal is a 802.11ac wireless device in a waterproof metal enclosure. Its rugged design is made to withstand the toughest conditions, but at the same time is easy to use and can be opened and closed with one hand. The solid aluminum enclosure also works as a reliable heat-sink for it’s high output power radio.

    The NetMETAL is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license. The enclosure is sealed to conform with the IP54 standard.

    - RB921UAGS-5SHPacD-NM-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

    - RB921UAGS-5SHPacD-NM (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

     Send purchase questions

    Specifications

    Details
    Product code RB921UAGS-5SHPacD-NM
    Architecture MIPSBE
    CPU QCA9557
    CPU core count 1
    CPU nominal frequency 720 MHz
    Dimensions 143x247x48mm (PCB)
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 128 MB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $159.00

    Powering

    Details
    Number of DC inputs 1 (PoE-IN)
    Max power consumption 17 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 8-30 V

    Wireless specifications

    Details
    Wireless 5 GHz Max data rate 867 Mbit/s
    Wireless 5 GHz number of chains 2
    Wireless 5 GHz standards 802.11a/n/ac
    Wireless 5 GHz chip model QCA9882
    Wireless 5 GHz generation Wi-Fi 5

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Fiber

    Details
    SFP DDMI yes
    SFP ports 1

    Peripherals

    Details
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type USB type A
    Max USB current (A) 1

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes
    Beeper Yes

    Certification & Approvals

    Details
    Certification FCC, IC
    IP IP54

    Wireless specifications

    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s31-96
    54MBit/s29-81
    MCS031-96
    MCS729-77
    MCS925-72

    Included parts

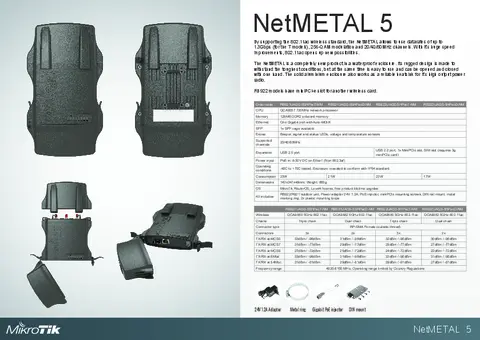

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current release
    Block DiagramOpen
    Mounting dimensionsOpen
    SFP compatibility listOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)
    Declaration of conformityOpen (FCC)

    High resolution images

    #
    #
    #
    #

    Ethernet test results

    RB921UAGS-5SHPacD-NMQCA9557 1G all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)81.2986.1234.9962.2477.7244.6
    Bridging25 bridge filter rules81.2986.1118.4485.0119.561.2
    Routingnone (fast path)81.2986.1234.9962.2408.2209.0
    Routing25 simple queues81.2986.1158.3648.4165.884.9
    Routing25 ip filter rules64.8786.970.4288.460.931.2
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
