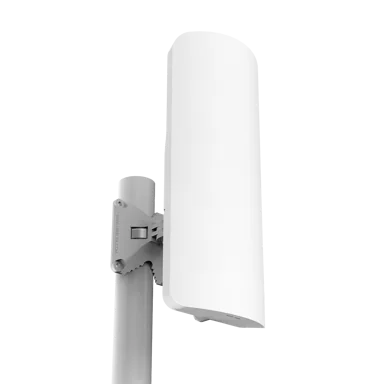

    mANT 15s Dual-polarization 5Ghz 15dBi 120 degree beamwidth antenna with two RP-SMA connectors

    The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device.

    The mANT is a dual-polarization 15dBi 120 degree beamwidth antenna with two RP-SMA connectors. It is compatible with the SXT type mount, so you can use it with our durable and adjustable QuickMount systems. It comes with quickMOUNT PRO.

     Send purchase questions

    Product specifications

    Details
    Product code MTAS-5G-15D120
    Beamwidth 120 deg (azimuth) 10 deg (elevation)
    Connector two RP-SMA
    Cross Polarization >30 dB
    Diameter x Depth 140 x 348 x 82 mm
    Frequency Range 5.17 - 5.825 GHz
    Front-to-Back Ratio >30 dB
    Polarization Vertical and horizontal
    Port to Port Isolation >40 dB min
    VSWR 1.43 typ, 1.8 max
    Weight 734 g
    Suggested price $49

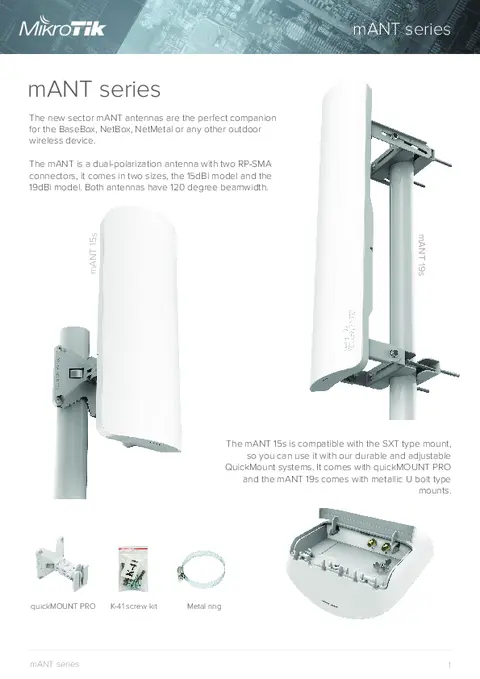

    BrochureOpen
    RouterOS software manualOpen

    ANT files

    180306094345pattern.antDownload
    180306094417pattern.antDownload
