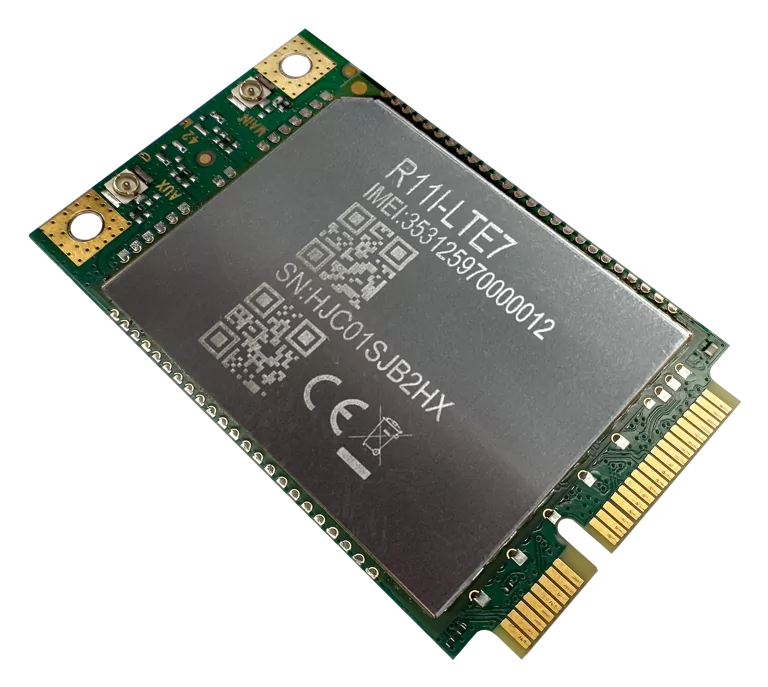

R11e-LTE7
An easy drop-in upgrade for RouterBOARD integrators. This miniPCIe CAT7 modem delivers up to 300 Mbps with Band 28 & 32 support and carrier aggregation for better rural performance. Fully compatible with RouterOS v7 devices such as LtAP and RBM33G – upgrade your LTE speed without changing your setup.
The next-generation miniPCIe LTE CAT7 modem for your RouterBOARDs. Drop-in replacement for FG621-EA – now offering 300 Mbps down / 100 Mbps up, with added Band 32 & Band 28 support.
Perfect for LtAP, RBM33G, or any system with miniPCIe or USB (if you’re using an adapter). Compared to the previous FG621 version, this miniPCIe unit has a smaller form-factor, so it should fit better inside more devices. Upgrade your mobile connectivity without changing the whole setup!
Specification
- Product code R11e-LTE7
- Suggested price $65.00
- MTBF Approximately 100'000 hours at 25C
- Tested ambient temperature -10°C to 55°C
- Max power consumption 5 W
- 3G Category R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
-
3G bands
1 (2100MHz)
5 (850MHz)
8 (900MHz)
3 (1800 MHz)
- LTE Category 7 (DL: 300 Mbps; UL: 100 Mbps)
- MIMO DL 2x2
- MIMO UL 1x1
-
LTE FDD bands
1 (2100MHz)
3 (1800MHz)
5 (850MHz)
7 (2600MHz)
8 (900 MHz)
20 (800MHz)
28 (700MHz)
32 (1500 MHz)
-
LTE TDD bands
38 (2600MHz)
40 (2300MHz)
41 (2500MHz)
- TAC 35312597
- Certification CE, ROHS
- IP 00
