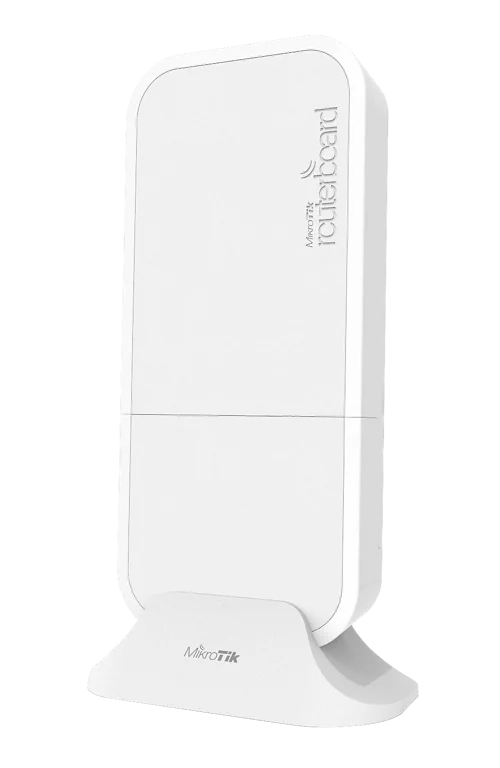

    wAP R Small weatherproof wireless access point with LTE antennas and miniPCI-e slot

    The wAP R is a small weatherproof 2.4Ghz wireless access point with a miniPCI-e slot (so you can use your own LTE card) and LTE antennas. Unit comes with one 10/100 Ethernet LAN port for your wired devices.

    The weatherproof device can be mounted outside your house, in the vehicle, on your porch or anywhere else where you need wireless access from your phone or computer. It also includes a desktop stand so you can put it inside the building near a window.

    Unit has the several powering options - 9-30V PoE-in by Ethernet port, DC jack and automotive connector, very handy in mobile devices like car, bus or train.

    *) the device has no built in LTE modem, the SIM slot can only be used, if an LTE modem is installed (not included with the product).

     Send purchase questions

    Specifications

    Details
    Product code RBwAPR-2nD
    Architecture MIPSBE
    CPU QCA9531
    CPU core count 1
    CPU nominal frequency 650 MHz
    Dimensions 185x85x30 mm
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -40°C to 60°C
    Suggested price $89.00

    Wireless capabilities

    Details
    Wireless 2.4 GHz Max data rate 300 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n
    Antenna gain dBi for 2.4 GHz 2
    Wireless 2.4 GHz chip model QCA9531
    Wireless 2.4 GHz generation Wi-Fi 4

    Ethernet

    Details
    10/100 Ethernet ports 1

    Peripherals

    Details
    Number of SIM slots 1 Modem (Mini SIM)
    MiniPCI-e slots 1

    Powering

    Details
    Number of DC inputs 3 (DC jack, Automotive, PoE-IN)
    DC jack input Voltage 9-30 V
    Automotive input Voltage 9-30 V
    Max power consumption 6 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 9-30 V

    Certification & Approvals

    Details
    Certification CE, FCC, IC, E-MARK, EAC, ROHS
    IP IP54

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s22-96
    11MBit/s22-89
    6MBit/s20-93
    54MBit/s18-74
    MCS020-93
    MCS716-71

    Included parts

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    Automotive connectorOpen
    Accessory guideOpen
    Mounting dimensionsOpen
    Block DiagramOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)
    FCC Grant of Certification (2.4GHz)Open

    High resolution images

    Ethernet test results

    RBwAPR-2nDQCA9531 100M one port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)8.198.423.596.3173.688.9
    Bridging25 bridge filter rules8.198.423.596.370.936.3
    Routingnone (fast path)8.198.423.596.3160.882.3
    Routing25 simple queues8.198.423.596.390.846.5
    Routing25 ip filter rules8.198.423.596.343.222.1
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
