    RBM11G Small size powerful OEM board with one Gigabit LAN and one miniPCIe slot

    The RBM11G is a fully featured RouterBOARD device perfect for using with your own enclosure or building a custom solution. It uses the same square PCB and mounting holes as it’s predecessors, you can simply swap out the older models with the brand new RBM11G.

    The M11 features a new MediaTek dual core CPU running at 880MHz, a miniPCIe slot for using with a WiFi module of your choice, or with a 3G/ LTE modem (SIM slot provided). The device can be powered by PoE through it’s gigabit ethernet connector or through the DC power jack.

     Send purchase questions

    Specifications

    Details
    Product code RBM11G
    Architecture MMIPS
    CPU MT7621A
    CPU core count 2
    CPU nominal frequency 880 MHz
    CPU Threads count 4
    Dimensions 105 x 110 mm
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 256 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    IPsec hardware acceleration Yes
    Suggested price $49.00

    Powering

    Details
    Number of DC inputs 2 (DC jack, PoE-IN)
    DC jack input Voltage 10-30 V
    Max power consumption 11 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 10-30 V

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Peripherals

    Details
    Number of SIM slots 1 Modem (Mini SIM)
    MiniPCI-e slots 1

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS

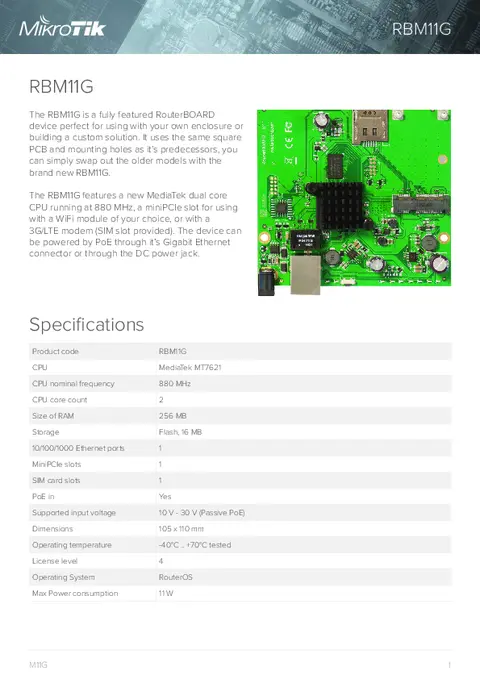

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload
    Design filesOpen
    Block DiagramOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    Ethernet test results

    RBM11GMT7621A (880Mhz) 1G one port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)81.3987.3235962.61207.4618.2
    Bridging25 bridge filter rules81.2986.1175.371817790.6
    Routingnone (fast path)81.3987.3234.9962.21067.6546.6
    Routing25 simple queues81.2986.1216.2885.6222.5113.9
    Routing25 ip filter rules81.2986.1112.5460.811056.3
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    IPsec test results

    RBM11GMT7621A IPsec throughput
    ModeConfiguration1400 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Single tunnelAES-128-CBC + SHA141.9469.342.3173.341.521.2
    256 tunnelsAES-128-CBC + SHA141.9469.343.717942.721.9
    256 tunnelsAES-128-CBC + SHA25642.2472.644.4181.942.721.9
    256 tunnelsAES-256-CBC + SHA132358.440163.840.520.7
    256 tunnelsAES-256-CBC + SHA25632.1359.539.7162.640.520.7
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
