    RB912UAG-2HPnD 600MHz CPU, 64MB RAM, 1xGigabit Ethernet, onboard 2.4Ghz wireless, miniPCI-express, USB, SIM slot, RouterOS L4

    Discontinued


    The RB912UAG-2HPnD is a very versatile device. It is a small wireless router with an integrated 2.4GHz high-power wireless card and an additional miniPCIe slot for 802.11 wireless card, mobile card, or LoRa solutions. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.

    It has built-in 16kV ESD protection on both the Ethernet and the MMCX ports.

     Send purchase questions

    Specifications

    Details
    Product code RB912UAG-2HPnD
    Architecture MIPSBE
    CPU AR9342
    CPU core count 1
    CPU nominal frequency 600 MHz
    Dimensions 105x105mm
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $79.00

    Powering

    Details
    Number of DC inputs 2 (PoE-IN, DC jack)
    DC jack input Voltage 8-30 V
    Max power consumption 13.5 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 8-30 V

    Wireless specifications

    Details
    Wireless 2.4 GHz Max data rate 300 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n
    Wireless 2.4 GHz chip model AR9342
    Wireless 2.4 GHz generation Wi-Fi 4

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Peripherals

    Details
    Number of SIM slots 1 Modem (Mini SIM)
    MiniPCI-e slots 1
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type USB type A
    Max USB current (A) 1

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes
    Beeper Yes

    Certification & Approvals

    Details
    Certification FCC, IC
    IP IP00

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s30-100
    11MBit/s30-94
    6MBit/s30-96
    54MBit/s27-78
    MCS030-96
    MCS724-73

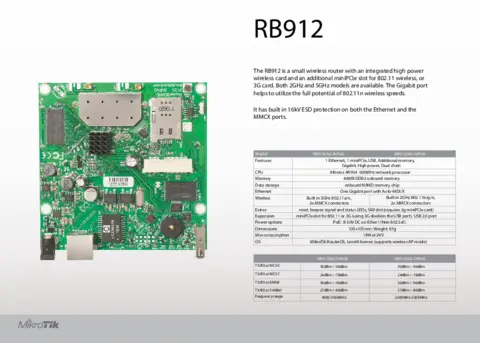

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current release
    RouterBoot firmware Download
    Design filesOpen
    Block DiagramOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)
    Declaration of conformityOpen (FCC)

    High resolution images

    #

    Ethernet test results

    RB912UAG-2HPnDAR9342 1G 1 port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)81.0983.7232.0950.3269.6138.0
    Bridging25 bridge filter rules81.0983.786.0352.387.644.9
    Routingnone (fast path)81.0983.7210.0860.2226.9116.2
    Routing25 simple queues81.0983.7103.9425.6106.654.6
    Routing25 ip filter rules56.8689.859.6244.160.531.0
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
