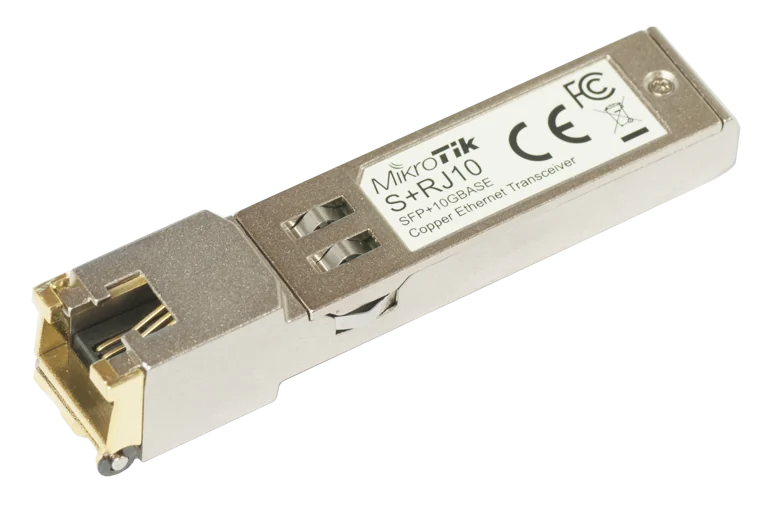

    S+RJ10 6-speed RJ-45 module for up to 10 Gbps

    This unique module opens up a whole world of high speed connectivity possibilities, offering up to 10 Gbps speeds over regular familiar twisted-pair cables in your existing products that have SFP+ ports. Any MikroTik device with active cooling that has SFP+ ports can now be used without installing any optical fiber, just plug the S+RJ10 and your network can be upgraded to 10 Gbps, making it ready for the next generation of RJ45 hardware.

    S+RJ10 module is supported also on devices with passive cooling, but may require an extra cooling.

    The latest revision of S+RJ10 contains "/r2" by the end of serial number. It comes with following improvements:

    - Jumbo frames up to 10218 Bytes are now supported for rates 2.5Gbps, 5Gbps and 10Gbps;

    - Link speed reporting is fixed - actual link speed in the interface menu is listed. Previously 100M/1G/2.5G/5G link speeds were not reported correctly;

    - DDM monitoring (Supply Voltage, Module temperature) is now supported.

     Send purchase questions

    Product specifications

    Details
    Product code S+RJ10
    Connector RJ45
    Data Rate 10M, 100M, 1G, 2.5G, 5G, 10G
    Distance up to 30m @10Gbps
    IP IP00
    Storage size 256 KB
    Storage type FLASH
    Tested ambient temperature -20°C to 60°C
    Suggested price $65

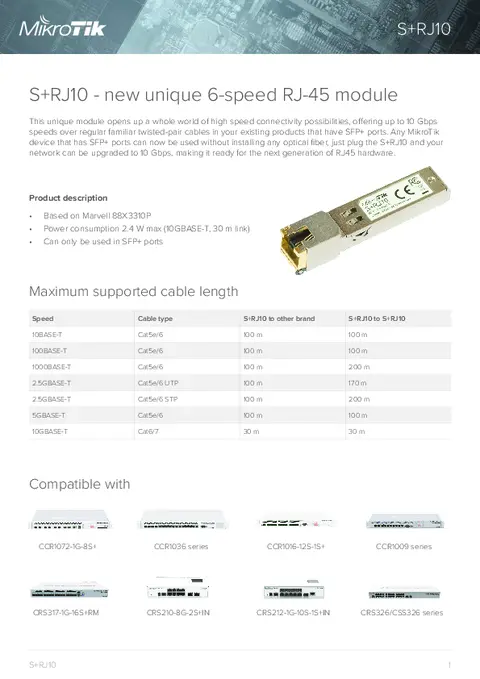

    BrochureOpen
    S+RJ10 general guidanceOpen
    SFP compatibility listOpen
    Declaration of conformityOpen (CE)
