    RB5009UG+S+IN The ultimate heavy-duty home lab router with USB 3.0, 1G and 2.5G Ethernet and a 10G SFP+ cage. You can mount four of these new routers in a single 1U rackmount space! Unprecedented processing power in such a small form factor.

    Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!

    The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!

    RB5009UG+S+IN can be powered in 3 different ways:

    a) PoE-in from Ethernet port #1

    b) DC Jack

    c) 2-pin terminal on the side

    Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.

    With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.

     Send purchase questions

    Specifications

    Details
    Product code RB5009UG+S+IN
    Architecture ARM 64bit
    CPU 88F7040
    CPU core count 4
    CPU nominal frequency 350-1400 (auto) MHz
    Switch chip model 88E6393
    RouterOS license 5
    Operating System RouterOS v7
    Size of RAM 1 GB
    Storage size 1 GB
    Storage type NAND
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 60°C
    IPsec hardware acceleration Yes
    Suggested price $219.00

    Powering

    Details
    Number of DC inputs 3 (PoE-IN, DC jack, 2-pin terminal)
    DC jack input Voltage 24-57 V
    2-pin terminal input Voltage 24-57 V
    Max power consumption 25 W
    Max power consumption without attachments 14 W
    Cooling type Passive
    PoE in 802.3af/at
    PoE in input Voltage 24-57 V

    Ethernet

    Details
    10/100/1000 Ethernet ports 7
    Number of 2.5G Ethernet ports 1

    Fiber

    Details
    SFP+ ports 1

    Peripherals

    Details
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type USB 3.0 type A
    Max USB current (A) 1.5

    Other

    Details
    CPU temperature monitor Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS

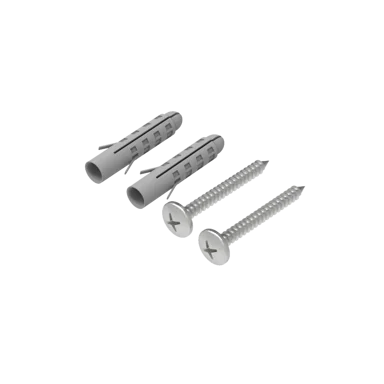

    Included parts

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload
    Block DiagramOpen
    DimensionsOpen
    SFP compatibility listOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    Ethernet test results

    RB5009UG+S+IN88F7040 all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)811.29851.423329551.95768.43138
    Bridging25 bridge filter rules811.29851.41238.35072.21235.6672.2
    Routingnone (fast path)811.29851.423329551.94969.42703.3
    Routing25 simple queues811.29851.4112646121095595.7
    Routing25 ip filter rules771.29365.6755.93096.2761414
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    IPsec test results

    RB5009UG+S+IN88F7040 IPsec throughput
    ModeConfiguration1400 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Single tunnelAES-128-CBC + SHA1120.91354.1119.4489.1124.363.6
    256 tunnelsAES-128-CBC + SHA1126.51416.8125.3513.2120.361.6
    256 tunnelsAES-128-CBC + SHA256126.51416.8125.3513.2120.361.6
    256 tunnelsAES-256-CBC + SHA1125.81409123.2504.6114.358.5
    256 tunnelsAES-256-CBC + SHA256125.81409123.2504.6114.358.5
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
