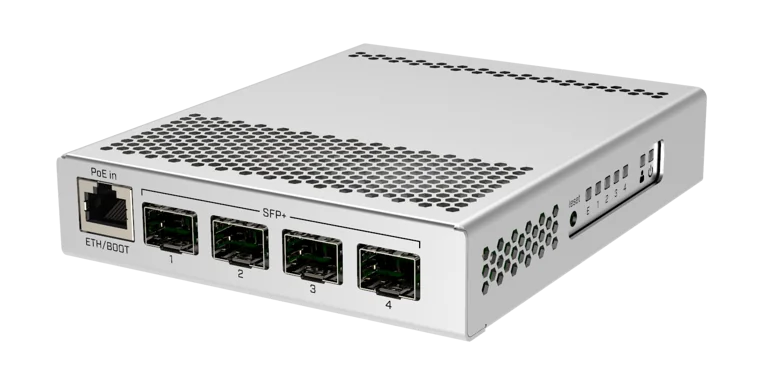

    CRS305-1G-4S+IN Five-port desktop switch with one Gigabit Ethernet port and four SFP+ 10Gbps ports

    The CRS305 is a compact yet very powerful switch, featuring four SFP+ ports, for up to 10 Gbit per port. The device has a 1 Gbit copper ethernet port for management access and two DC jacks for power redundancy. The device is a very sleek and compact metallic case without any fans, for silent operation.

    The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with a disruptive price, providing the best price/performance on the market.

     Send purchase questions

    Specifications

    Details
    Product code CRS305-1G-4S+IN
    Architecture ARM 32bit
    CPU 98DX3236
    CPU core count 1
    CPU nominal frequency 800 MHz
    Dimensions 141 x 115 x 28 mm
    License level 5
    Operating System RouterOS / SwitchOS
    Size of RAM 512 MB
    Storage size 16 MB
    Storage type FLASH
    Tested ambient temperature -40°C to 70°C
    Suggested price $149.00

    Powering

    Details
    PoE in 802.3af/at
    PoE in input Voltage 12-57 V
    Number of DC inputs 3 (PoE-IN, DC jack)
    DC jack input Voltage 12-57 V
    Max power consumption 18 W
    Max power consumption without attachments 10 W

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Fiber

    Details
    SFP+ ports 4

    Other

    Details
    CPU temperature monitor Yes

    Included parts

    Quick GuideOpen

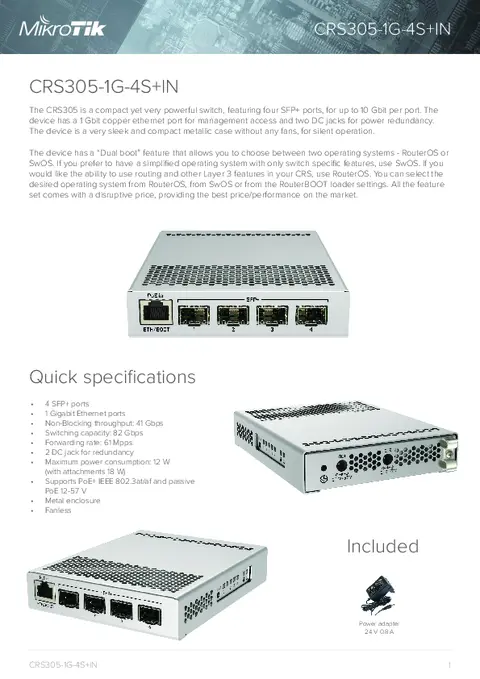

    BrochureOpen
    RouterOS current releaseDownload
    Block DiagramOpen
    SFP compatibility listOpen
    PoE-IN compatibility listOpen
    RouterOS software manualOpen

    High resolution images

    Switching results

    CRS305-1G-4S+IN
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Switching Non blocking Layer 2 throughput 3,332.2 40,466.8 9,633.5 39,458.6 61,011.9 31,238.1
    Switching Non blocking Layer 2 capacity 3,332.2 80,933.7 9,633.5 78,917.3 61,011.9 62,476.2
    Switching Non blocking Layer 1 throughput 3,332.2 41,000.0 9,633.5 41,000.0 61,011.9 41,000.0
    Switching Non blocking Layer 1 capacity 3,332.2 82,000.0 9,633.5 82,000.0 61,011.9 82,000.0

    Ethernet test results

    CRS305-1G-4S+IN98DX3236 all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)104,31266.6273,51120.3449229.9
    Bridging25 bridge filter rules1041263.0104,6428.4104,553.5
    Routingnone (fast path)104,31266.6273,91121.9343,5175.9
    Routing25 simple queues104,31266.6136,9560.7137,470.3
    Routing25 ip filter rules64,8786.965,9269.965,833.7
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
