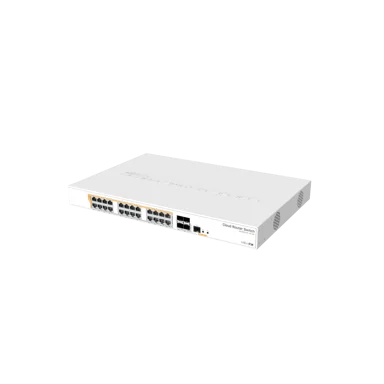

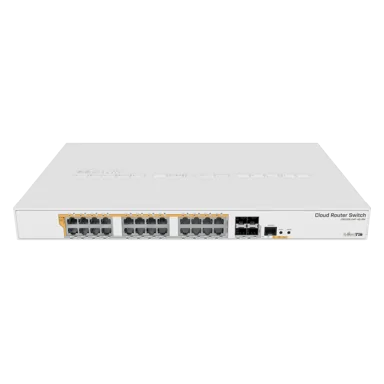

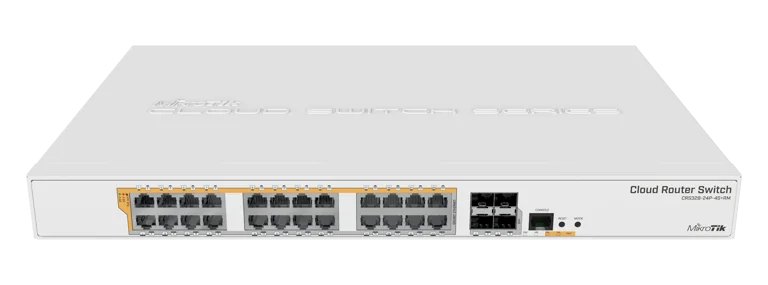

CRS328-24P-4S+RM
24 port Gigabit Ethernet router/switch with four 10Gbps SFP+ ports in 1U rackmount case, Dual Boot and PoE output, 500W
CRS328-24P-4S+RM is a 28 independent port switch, it has 24 Gigabit Ethernet ports, which offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing. PoE-Out is passed over mode B pins (4,5+)(7,8-). The four SFP+ ports provide up to 10 Gbps connectivity options via either optical fiber or Ethernet modules (not included).
CRS328-24P-4S+RM comes in a 1U rackmount case with 100-240 V AC 500 W power supply built-in. The device consumes up to 44 W leaving guaranteed 450 W (3x150 W per every 8 Ethernet ports) to power your PoE devices. Each port can provide up to 30 W of power with any power output option you choose.
The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with disruptive price, providing best price/performance on the market.
Specification
- Product code CRS328-24P-4S+RM
- Suggested price $489.00
- Architecture ARM 32bit
- CPU 98DX3236
- CPU core count 1
- CPU nominal frequency 800 MHz
- Switch chip model 98DX3236
- Dimensions 443 x 300 x 44 mm
- RouterOS license 5
- Operating System RouterOS / SwitchOS
- Size of RAM 512 MB
- Storage size 16 MB
- Storage type FLASH
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -20°C to 60°C
- Number of AC inputs 1
- AC input range 100-240
- Number of PSU slots 2
- Max power consumption 494 W
- Max power consumption without attachments 44 W
- Cooling type 2 fans
- PoE-out ports Ether1-Ether24
- PoE out 802.3af/at
- Low voltage PoE-Out current limit 1000 mA
- High voltage PoE-Out current limit 450 mA
- Max total out (A) 20 A
- 10/100/1000 Ethernet ports 24
- SFP+ ports 4
- Serial console port RJ45
- CPU temperature monitor Yes
- Current Monitor Yes
- PCB temperature monitor Yes
- Voltage Monitor Yes
- Mode button Yes
- Certification CE, EAC, ROHS
- IP IP00
| CRS328-24P-4S+RM | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 5,201.6 | 63,167.8 | 15,037.6 | 61,594.0 | 95,238.1 | 48,761.9 |
| Switching | Non blocking Layer 2 capacity | 5,201.6 | 126,335.5 | 15,037.6 | 123,188.0 | 95,238.1 | 97,523.8 |
| Switching | Non blocking Layer 1 throughput | 5,201.6 | 64,000.0 | 15,037.6 | 64,000.0 | 95,238.1 | 64,000.0 |
| Switching | Non blocking Layer 1 capacity | 5,201.6 | 128,000.0 | 15,037.6 | 128,000.0 | 95,238.1 | 128,000.0 |
| CRS328-24P-4S+RM | 98DX3236 all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 104,3 | 1266.6 | 273,5 | 1120.3 | 449 | 229.9 |
| Bridging | 25 bridge filter rules | 104 | 1263.0 | 104,6 | 428.4 | 104,5 | 53.5 |
| Routing | none (fast path) | 104,3 | 1266.6 | 273,9 | 1121.9 | 343,5 | 175.9 |
| Routing | 25 simple queues | 104,3 | 1266.6 | 136,9 | 560.7 | 137,4 | 70.3 |
| Routing | 25 ip filter rules | 64,8 | 786.9 | 65,9 | 269.9 | 65,8 | 33.7 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

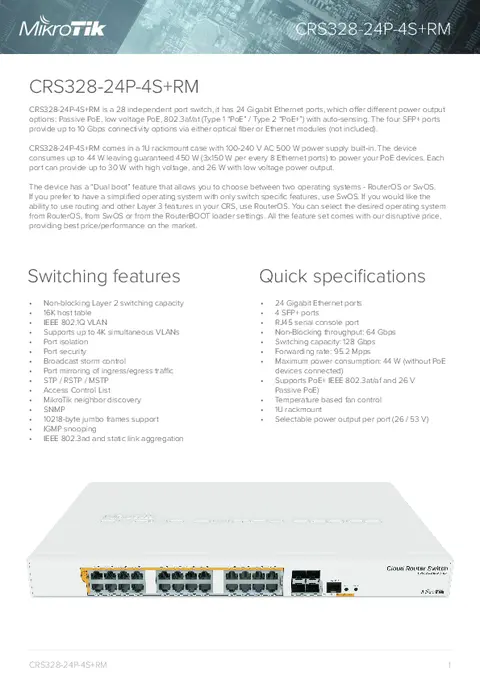

Documents
