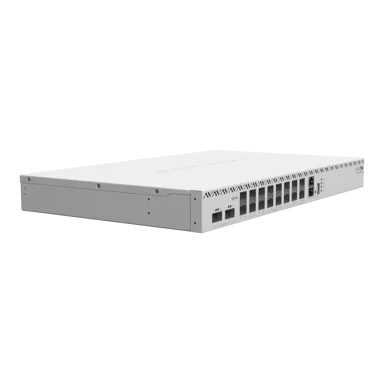

    CRS518-16XS-2XQ A 100 Gigabit switch for enterprise networks and data centers. Hot-swappable parts and insane port density with 1.2 Tbps switching capacity!

    As our 100 Gigabit product family grows, the time has come to introduce a serious enterprise-level switch. A switch that is up for the challenge when the CRS504 port density is just not enough. Introducing the spectacular CRS518-16XS-2XQ!

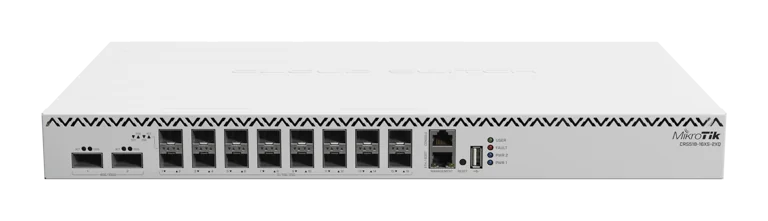

    With 2x 100 Gigabit QSFP28 ports and 16x 25 Gigabit SFP28 ports, this is the perfect cost-effective addition to any enterprise network or data center. And with dual-redundant hot-swappable power supplies and fans, you won’t have to worry about unnecessary downtime.

    Here’s a real-life setup – similar to the one we’re using in our office:

    At the top, you could place two flagship CCR2216 routers to provide the main connectivity and routing. Then a blazing-fast 100 Gigabit connection leads to three CRS518 distribution level switches. This is where all the magic happens. The CRS518 switches connect every access level device to the main network, deal with traffic filtering, and network policy enforcement. And they handle all that with grace and dignity – thanks to the fantastic Marvell Prestera Aldrin2 switch-chip. The same chip you’ve seen in our flagship CCR2216 that did wonders with L3 Hardware Offloading.

    The 25-gigabit ports are backward compatible with 10 Gigabit and 1 Gigabit SFP devices. Mix and match as you need!

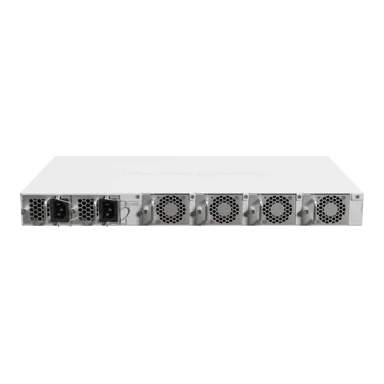

    The two hot-swap power supplies support a high input voltage range: 100-240V. The board itself uses up to 45W of power, while the total maximum power consumption goes up to 77W with all the attachments. It can be a bit more power-hungry than the CRS504, but you would be too if you had 16x 25-Gigabit ports, wouldn’t you?

    Our 100 Gigabit product family keeps growing: switches, routers, cables, and QSFP28 modules. If you want real speed and ultimate flexibility for the best price on the market – you want MikroTik!

    Nothing can stop this switch: it supports VLAN (802.1Q, 802.1ad), L3 hardware offloaded routing, ACL, LACP, MLAG, Jumbo frames, IGMP/MLD snooping, and so on. Keep your RouterOS up to date and enjoy the real power of CRS!

     Send purchase questions

    Specifications

    Details
    Product code CRS518-16XS-2XQ-RM
    Architecture MIPSBE
    CPU QCA9531
    CPU core count 1
    CPU nominal frequency 650 MHz
    RouterOS license 6
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $1595.00

    Powering

    Details
    Number of AC inputs 2
    AC input range 100-240
    Frequency (Hz) 47-63
    Max power consumption 77 W
    Max power consumption without attachments 45 W
    Cooling type 4 fans

    Ethernet

    Details
    10/100 Ethernet ports 1

    Fiber

    Details
    Number of 25G SFP28 ports 16
    Number of 100G QSFP28 ports 2

    Peripherals

    Details
    Serial console port RJ45
    Number of USB ports 1
    USB slot type USB type A
    Max USB current (A) 1

    Other

    Details
    CPU temperature monitor Yes
    PCB temperature monitor Yes
    Voltage Monitor Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS
    IP 20

    Included parts

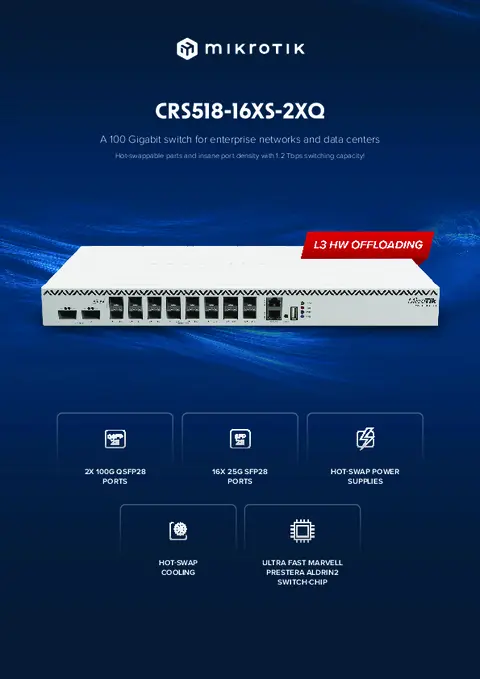

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload
    Block DiagramOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    Switching results

    CRS518-16XS-2XQ-RM
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Switching Non blocking Layer 2 throughput 48,772.8 592,296.4 141,000.9 577,539.8 893,006.0 457,219.0
    Switching Non blocking Layer 2 capacity 48,772.8 1,184,592.7 141,000.9 1,155,079.7 893,006.0 914,438.1
    Switching Non blocking Layer 1 throughput 48,772.8 600,100.0 141,000.9 600,100.0 893,006.0 600,100.0
    Switching Non blocking Layer 1 capacity 48,772.8 1,200,200.0 141,000.9 1,200,200.0 893,006.0 1,200,200.0

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
