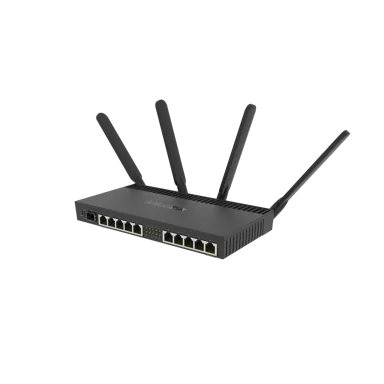

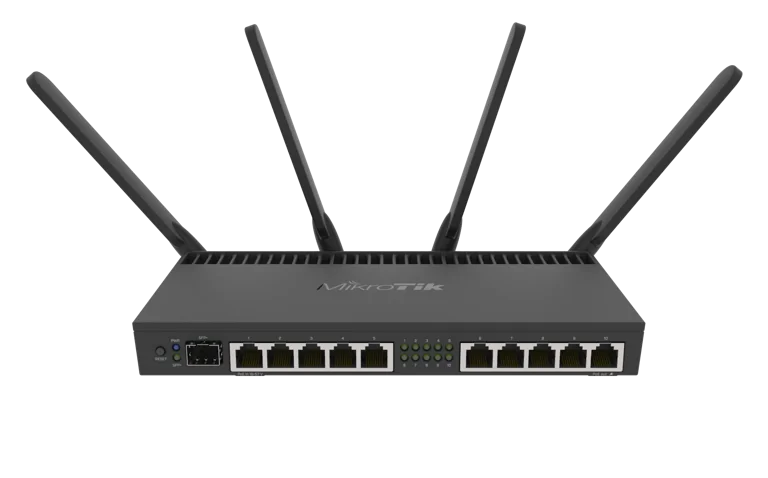

RB4011iGS+5HacQ2HnD-IN
Powerful 10xGigabit port router with a Quad-core 1.4Ghz CPU, 1GB RAM, SFP+ 10Gbps cage, dual band 2.4GHz / 5GHz 4x4 MIMO 802.11a/b/g/n/ac wireless and desktop case
RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!
The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.
RB4011iGS+5HacQ2HnD-IN (WiFi model) is dual band, four chain unit with a supported data rate of up to 1733 Mbps in 5GHz. For legacy devices, the unit also has a dual chain 2GHz wireless card installed in miniPCI-e slot.
We have two versions available.
RB4011iGS+5HacQ2HnD-IN-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
RB4011iGS+5HacQ2HnD-IN (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Specification
- Product code RB4011iGS+5HacQ2HnD-IN
- Suggested price $275.00
- Architecture ARM 32bit
- CPU AL21400
- CPU core count 4
- CPU nominal frequency auto (533 - 1900) MHz
- CPU Threads count 4
- Switch chip model RTL8367SB
- Dimensions 228 x 120 x 30 mm
- RouterOS license 5
- Operating System RouterOS v7
- Size of RAM 1 GB
- Storage size 512 MB
- Storage type NAND
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -40°C to 45°C
- Wireless 5 GHz Max data rate 1733 Mbit/s
- Wireless 5 GHz Number of chains 4
- Wireless 5 GHz standards 802.11a/n/ac
- Antenna gain dBi for 5 GHz 3
- Wireless 5 GHz chip model QCA9984
- Wireless 5 GHz generation Wi-Fi 5
- Wireless 2.4 GHz Max data rate 300 Mbit/s
- Wireless 2.4 GHz Number of chains 2
- Wireless 2.4 GHz standards 802.11b/g/n
- Antenna gain dBi for 2.4 GHz 3
- Wireless 2.4 GHz chip model R11e-2HnD
- Wireless 2.4 GHz generation Wi-Fi 4
- WiFi speed AC2000
- 10/100/1000 Ethernet ports 10
- SFP+ ports 1
- MiniPCI-e slots 1
- Serial console port RJ45
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 12-57 V
- Max power consumption 44 W
- Max power consumption without attachments 23 W
- PoE in Passive PoE
- Cooling type Passive
- PoE in input Voltage 18-57 V
- PoE-out ports Ether10
- PoE out Passive PoE up to 57V
- Low voltage PoE-Out current limit 600 mA
- High voltage PoE-Out current limit 420 mA
- Max total out (A) 600 mA
- Certification CE, FCC, IC, EAC, ROHS
- IP IP20
- PCB temperature monitor Yes
- Voltage Monitor Yes
| RB4011iGS+5HacQ2HnD-IN | AL21400 1G/S+ all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 806,4 | 9,792.9 | 2312,9 | 9,473.6 | 5509,7 | 2,821.0 |
| Bridging | 25 bridge filter rules | 806,4 | 9,792.9 | 1037,4 | 4,249.2 | 1153,2 | 590.4 |
| Routing | none (fast path) | 806,4 | 9,792.9 | 1923,3 | 7,877.8 | 5092,3 | 2,607.3 |
| Routing | 25 simple queues | 806,4 | 9,792.9 | 1046,6 | 4,286.9 | 960,3 | 491.7 |
| Routing | 25 ip filter rules | 593,7 | 7,209.9 | 625,2 | 2,560.8 | 564,6 | 289.1 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
| RB4011iGS+5HacQ2HnD-IN | AL21400 IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 92.1 | 1031.5 | 93.1 | 381.3 | 92.3 | 47.3 |
| 256 tunnels | AES-128-CBC + SHA1 | 115.5 | 1293.6 | 117.4 | 480.9 | 132.3 | 67.7 |
| 256 tunnels | AES-128-CBC + SHA256 | 115.5 | 1293.6 | 117.4 | 480.9 | 132.3 | 67.7 |
| 256 tunnels | AES-256-CBC + SHA1 | 114.6 | 1283.5 | 111.4 | 456.3 | 126.3 | 64.7 |
| 256 tunnels | AES-256-CBC + SHA256 | 114.6 | 1283.5 | 111.4 | 456.3 | 126.3 | 64.7 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
