    netFiber 9 A remarkable outdoor switch for setting up an optical 10G network that can even perform some light routing. The spiritual successor to the beloved FiberBox. Gigabit Ethernet, SFP/SFP+, PoE.

    netFiber 9 is a powerful outdoor switch with SFP, SFP+, and Gigabit Ethernet. It features a powerful ARM v7 CPU, 256 MB of RAM, 4x 10G SFP+ ports, and an advanced Marvell switch-chip that can handle even the heaviest loads. The Gigabit Ethernet port is not just for management purposes. It has a direct connection to the switch chip – so you can enjoy full gigabit speed. This port also supports PoE-in, so you don’t have to rely on the DC jack for powering in tight, hard- to-reach spots.

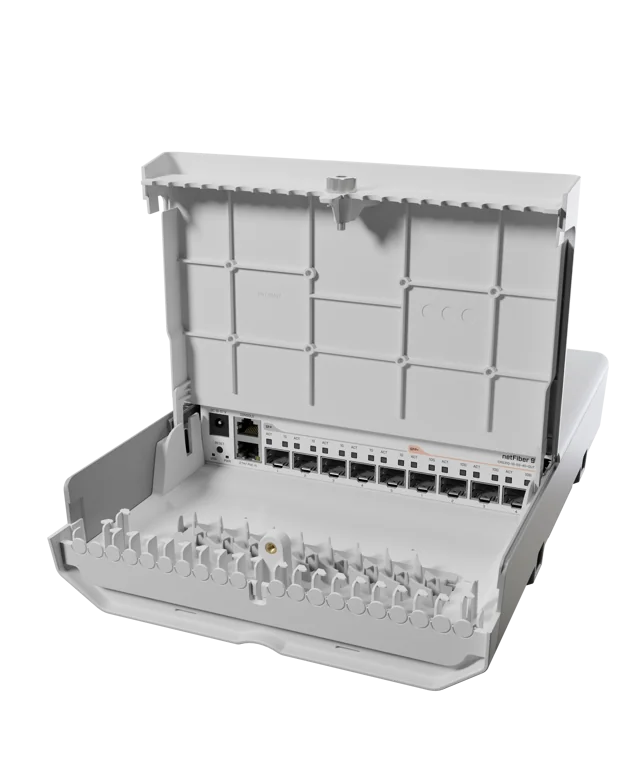

    There is a console port, followed by five regular SFP ports and four SFP+ ports for that sweet 10 Gbps networking. This means there might be quite a lot of wires for you to organize at some point. That’s why we designed the case to have some handy little additional features on the bottom of the case to help you keep everything neat and tidy.

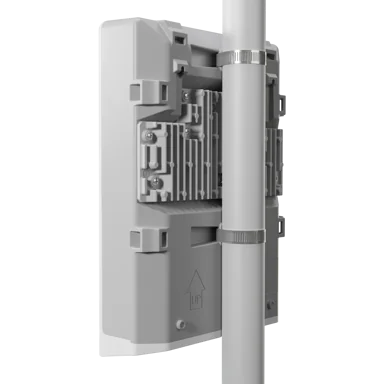

    The sturdy case provides decent protection in dusty environments with occasional splashes of water. Perfect for outdoors with some light coverage – like a roof overhang or a simple cabinet. There is a massive heatsink on the back that serves two purposes. Not only it provides outstanding heat dissipation, it also moves the center of mass towards the side with all the mounting options – keeping the board firm and strong upon installation. The package includes metal hose clamps and screws, so you can attach the netFiber to a pole, wall, or mast right away.

    netFiber 9 is an amazing tool for anyone working with connections over 100 meters while keeping data loss and ping low. Optic fiber can be a great alternative to copper if you are worried about electromagnetic interference or maybe even tampering and eavesdropping. With 10 ports, a powerful CPU, and a rugged case, netFiber 9 is a real bargain that will make your network management so much easier!

     Send purchase questions

    Specifications

    Details
    Product code CRS310-1G-5S-4S+OUT
    Architecture ARM 32bit
    CPU 98DX226S
    CPU core count 1
    CPU nominal frequency 800 MHz
    Switch chip model 98DX226S
    RouterOS license 5
    Operating System RouterOS v7 / SwitchOS
    Size of RAM 256 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $249.00

    Powering

    Details
    Number of DC inputs 2 (PoE-IN, DC jack)
    DC jack input Voltage 18-57 V
    Max power consumption 17 W
    Max power consumption without attachments 10 W
    Cooling type Passive
    PoE in 802.3af/at
    PoE in input Voltage 18-57 V

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Fiber

    Details
    SFP ports 5
    SFP+ ports 4

    Peripherals

    Details
    Serial console port RJ45

    Other

    Details
    CPU temperature monitor Yes
    Voltage Monitor Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS
    IP IP54

    Included parts

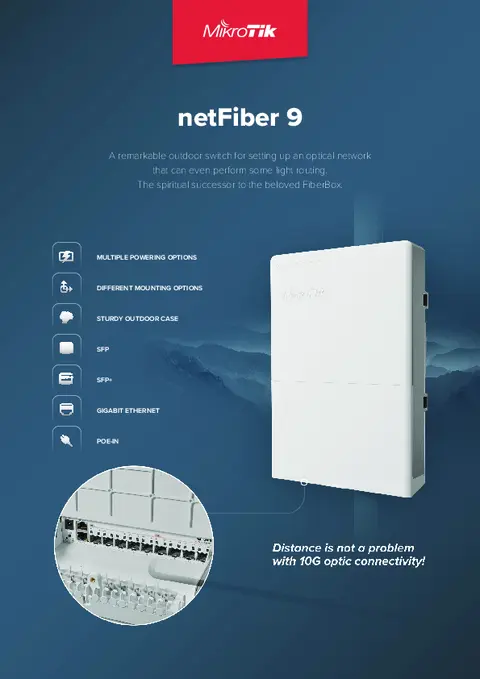

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload
    Block DiagramOpen
    DimensionsOpen
    SFP compatibility listOpen
    RouterOS software manualOpen
    SwOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    #
    #
    #
    #

    Switching results

    CRS310-1G-5S-4S+OUT
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Switching Non blocking Layer 2 throughput 3,738.6 45,401.8 10,808.3 44,270.7 68,452.4 35,047.6
    Switching Non blocking Layer 2 capacity 3,738.6 90,803.6 10,808.3 88,541.4 68,452.4 70,095.2
    Switching Non blocking Layer 1 throughput 3,738.6 46,000.0 10,808.3 46,000.0 68,452.4 46,000.0
    Switching Non blocking Layer 1 capacity 3,738.6 92,000.0 10,808.3 92,000.0 68,452.4 92,000.0

    Ethernet test results

    CRS310-1G-5S-4S+OUT98DX226 all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)104,11264.2119,1487.8141,172.2
    Bridging25 bridge filter rules59,7725.059,7244.570,436.0
    Routingnone (fast path)104,11264.2129,7531.3143,573.5
    Routing25 simple queues56,7688.657,9237.265,233.4
    Routing25 ip filter rules44,1535.645,6186.848,424.8
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
