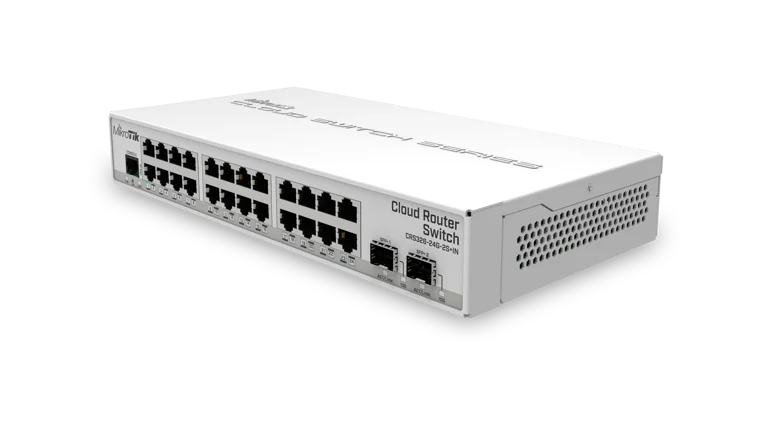

CRS326-24G-2S+IN
24 Gigabit ports, 2 SFP+ cages and a desktop case – server room power for your home!
A home network setup doesn’t have to be a compromise. This compact and quiet switch is packing some serious server room grade features: a pair of 10G SFP+ cages, 512 MB of RAM, 24 Gigabit Ethernet ports and a sufficient built-in CPU that can handle basic home user needs such as firewall, NAT and even some VPN. And it is extremely affordable – we are keeping the price on par with the previous generation desktop switches!
Like many other MikroTik switches, CRS326-24G-2S+IN offers the dual boot option that allows you to use either the lightweight SwOS or the advanced RouterOS. The compact and quiet fanless desktop case makes this switch the perfect addition to the best home setups. And it is very easy to transport! But make no mistake – this small switch has all the power and features of its bigger rackmount analogue – the CRS326-24G-2S+RM, nothing has been removed!
CRS326-24G-2S+IN provides all the basic functionality for a managed switch, and even more: port-to- port forwarding, MAC filtering, VLAN configuration, traffic mirroring, bandwidth limitation and even adjust some MAC and IP header fields. SFP+ cage supports both 1.25G SFP and 10G SFP+ modules.
Specification
- Product code CRS326-24G-2S+IN
- Suggested price $199.00
- Architecture ARM 32bit
- CPU 98DX3236
- CPU core count 2
- CPU nominal frequency 800 MHz
- Switch chip model 98DX3236
- Dimensions 285 x 144 x 44 mm
- RouterOS license 5
- Operating System RouterOS / SwitchOS
- Size of RAM 512 MB
- Storage size 16 MB
- Storage type FLASH
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -40°C to 60°C
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 10-30 V
- Max power consumption 21 W
- PoE in Passive PoE
- Cooling type Passive
- PoE in input Voltage 10-30 V
- 10/100/1000 Ethernet ports 24
- SFP+ ports 2
- Serial console port RJ45
- Certification CE, EAC, ROHS
- IP IP20
| CRS326-24G-2S+INr2 | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 3,576.1 | 43,427.8 | 10,338.3 | 42,345.9 | 65,476.2 | 33,523.8 |
| Switching | Non blocking Layer 2 capacity | 3,576.1 | 86,855.7 | 10,338.3 | 84,691.7 | 65,476.2 | 67,047.6 |
| Switching | Non blocking Layer 1 throughput | 3,576.1 | 44,000.0 | 10,338.3 | 44,000.0 | 65,476.2 | 44,000.0 |
| Switching | Non blocking Layer 1 capacity | 3,576.1 | 88,000.0 | 10,338.3 | 88,000.0 | 65,476.2 | 88,000.0 |
| CRS326-24G-2S+INr2 | 98DX3236 all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 104,3 | 1266.6 | 273,5 | 1120.3 | 449 | 229.9 |
| Bridging | 25 bridge filter rules | 104 | 1263.0 | 104,6 | 428.4 | 104,5 | 53.5 |
| Routing | none (fast path) | 104,3 | 1266.6 | 273,9 | 1121.9 | 343,5 | 175.9 |
| Routing | 25 simple queues | 104,3 | 1266.6 | 136,9 | 560.7 | 137,4 | 70.3 |
| Routing | 25 ip filter rules | 64,8 | 786.9 | 65,9 | 269.9 | 65,8 | 33.7 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

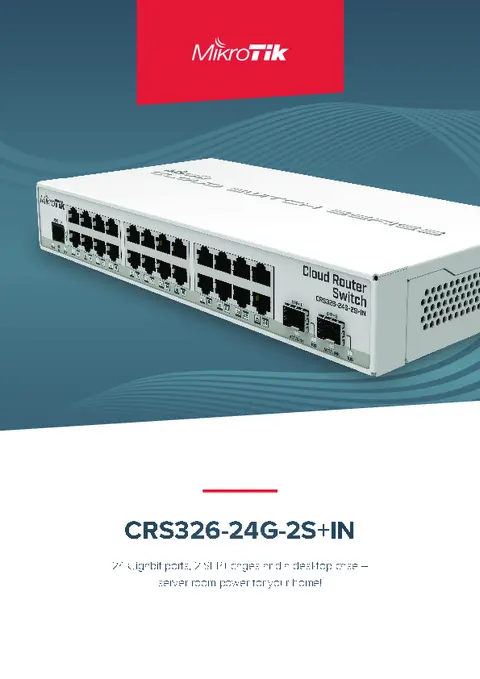

Documents
