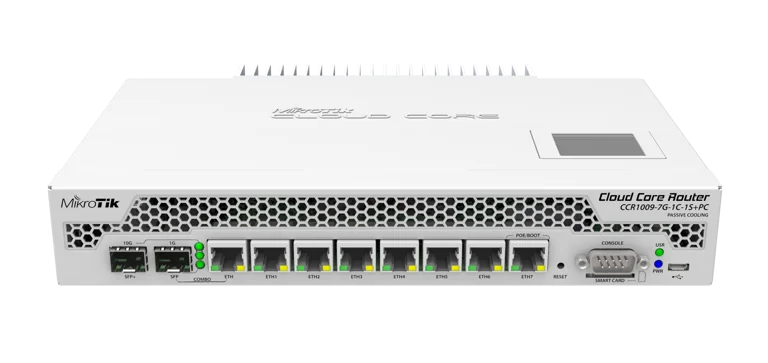

    CCR1009-7G-1C-1S+PC

    The new updated revision of CCR1009 is here. We attempted to combine all the customer feedback and best practice in CCR device manufacturing that we learned over the last three years, since the first CCR1009 devices were launched.

    Important changes

    No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.

    Combo-port - a single 1Gbit software interface that has two hardware interfaces - an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of disconnect the combo-port provides hardware fail-over feature.

    100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.

    More throughput - because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.

    This unit is equipped with passive cooling enclosure, two heat-pipes and a specially designed heat-sink, so its completely silent. It’s powered by an external 24V 2.5A AC/DC adapter and supports power redundancy if you also power it from the PoE input port.

    Unit also includes a LCD touchscreen, smart card slot, microSD and a SFP+ port for 10G connections.

    General

    Details
    Product code CCR1009-7G-1C-1S+PC
    CPU TLR4-00980CH-10CE-A3b
    CPU core count 9
    CPU nominal frequency 1 GHz
    CPU Threads count 9
    Dimensions 272x190x47mm
    License level 6
    Operating System RouterOS
    Size of RAM 2 GB
    Storage size 128 MB
    Storage type NAND
    Tested ambient temperature -20C .. +60C
    Suggested price $495.00

    Powering

    Details
    Max Power consumption 33W
    Number of DC inputs 2 (PoE-IN, DC jack)
    PoE in Passive PoE
    DC jack input Voltage 18-57 V
    PoE in input Voltage 18-57 V

    Ethernet

    Details
    10/100/1000 Ethernet ports 7
    Ethernet Combo ports 1

    Fiber

    Details
    SFP+ ports 1

    Peripherals

    Details
    Number of SIM slots 1
    Number of USB ports 1
    Serial port RS232
    USB Power Reset Yes
    USB slot type microUSB type AB

    Other

    Details
    CPU temperature monitor Yes
    Current Monitor Yes
    PCB temperature monitor Yes
    Voltage Monitor Yes

    More info

    Ethernet test results

    CCR1009-7G-1C-1S+PCTile 9 core all port test 1GHz with combo-port and SFP+
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)1,300.415,792.13,759.415,398.514,874.07,615.5
    Bridging25 bridge filter rules1,100.413,363.31,183.84,848.81,184.0606.2
    Routingnone (fast path)1,300.415,792.13,759.415,398.514,581.07,465.5
    Routing25 simple queues1,300.415,792.11,686.07,175.61,699.61,142.1
    Routing25 ip filter rules615.87,478.3660.92,812.8668.3449.1
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
    4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    IPsec test results

    CCR1009-7G-1C-1S+PCCCR1009 series 1 GHz IPsec throughput
    ModeConfiguration1400 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Single tunnelAES-128-CBC + SHA1112.51260.0112.6461.2115.459.1
    256 tunnelsAES-128-CBC + SHA1232.12599.5268.21098.5277.3142.0
    256 tunnelsAES-128-CBC + SHA256232.12599.5268.21098.5277.3142.0
    256 tunnelsAES-256-CBC + SHA1230.02576.0265.41087.1260.7133.5
    256 tunnelsAES-256-CBC + SHA256230.02576.0265.41087.1260.7133.5
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    Download: Full CE declaration (PDF)

    Information about CCR1009-7G-1C-1S+PC

    [BG] Bulgarian С настоящето, "Mikrotikls SIA", декларира, че CCR1009-7G-1C-1S+PC е в съответствие със съществените изисквания и другитеприложими разпоредби на Директива 2014/53/EC.
    [CZ] Czech "Mikrotikls SIA" tímto prohlašuje, že CCR1009-7G-1C-1S+PC splňuje základní požadavky a všechna příslušná ustanoveni Směrnice 2014/53/ES.
    [DK] Danish Undertegnede "Mikrotikls SIA" erklærer herved, at følgende udstyr CCR1009-7G-1C-1S+PC overholder de væsentlige krav og øvrige relevante krav i direktiv 2014/53/EF.
    [DE] German Hiermit erklärt "Mikrotikls SIA", dass sich das Gerät CCR1009-7G-1C-1S+PC in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 2014/53/EG befindet.
    [EE] Estonian Käesolevaga kinnitab "Mikrotikls SIA" seadme CCR1009-7G-1C-1S+PC vastavust direktiivi 2014/53/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
    [GR] Greek ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Ο ΚΑΤΑΣΚΕΥΑΣΤΗΣ "Mikrotikls SIA" ΔΗΛΩΝΕΙ ΟΤΙ CCR1009-7G-1C-1S+PC ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 2014/53/ΕΚ
    [EN] English Hereby, "Mikrotikls SIA", declares that this CCR1009-7G-1C-1S+PC is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EC.
    [ES] Spanish Por la presente, "Mikrotikls SIA", declara que este CCR1009-7G-1C-1S+PC cumple con los requisitos esenciales y otras exigencias relevantes de la Directiva 2014/53/EC.
    [IT] Italian Con la presente "Mikrotikls SIA" dichiara che questo CCR1009-7G-1C-1S+PC è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 2014/53/CE.
    [LV] Latvian Ar šo "Mikrotikls SIA" deklarē, ka CCR1009-7G-1C-1S+PC atbilst Direktīvas 2014/53/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
    [LT] Lithuanian Šiuo "Mikrotikls SIA" deklaruoja, kad šis CCR1009-7G-1C-1S+PC atitinka esminius reikalavimus ir kitas 2014/53/EB Direktyvos nuostatas
    [HU] Hungarian A "Mikrotikls SIA" ezzennel kijelenti, hogy a CCR1009-7G-1C-1S+PC típusú beren-dezés teljesíti az alapvető követelményeket és más 2014/53/EK irányelvben meghatározott vonatkozó rendelkezéseket.
    [NL] Dutch Hierbij verklaart "Mikrotikls SIA" dat het toestel l CCR1009-7G-1C-1S+PC in overeenstemming is met de essentiële eisen en de andere relevante bepalin-gen van richtlijn 2014/53/EG.
    [PL] Polish Niniejszym "Mikrotikls SIA" deklaruje że CCR1009-7G-1C-1S+PC jest zgodny z zasadniczymi wymaganiami i innymi właściwymi postanowieniami Dyrektywy 2014/53/EC.
    [PT] Portuguese Eu, "Mikrotikls SIA", declaro que o CCR1009-7G-1C-1S+PC cumpre os requisitos essenciais e outras provisões relevantes da Directiva 2014/53/EC.
    [RO] Romanian Prin prezenta, "Mikrotikls SIA", declară că aparatul CCR1009-7G-1C-1S+PC este în conformitate cu cerinţele esenţiale şi cu alte prevederi pertinente ale Directivei 2014/53/CE..
    [SK] Slovak "Mikrotikls SIA" týmto vyhlasuje, že CCR1009-7G-1C-1S+PC spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 2014/53/ES.
    [SI] Slovenian "Mikrotikls SIA" izjavlja, da je ta CCR1009-7G-1C-1S+PC v skladu z bistvenimi zahtevami in drugimi relevantnimi določili direktive 2014/53/ES.
    [FI] Finish "Mikrotikls SIA" vakuuttaa täten että CCR1009-7G-1C-1S+PC tyyppinen laite on direktiivin 2014/53/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
    [SE] Swedish Denna utrustning är i överensstämmelse med de väsentliga kraven och andra relevanta bestämmelser i direktiv 2014/53/EC.
    [NO] Norwegian "Mikrotikls SIA", Erklærer herved at CCR1009-7G-1C-1S+PC er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 2014/53/EF.
    ×
