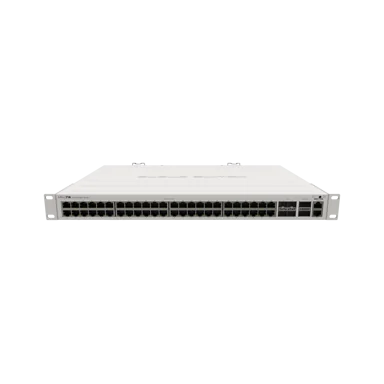

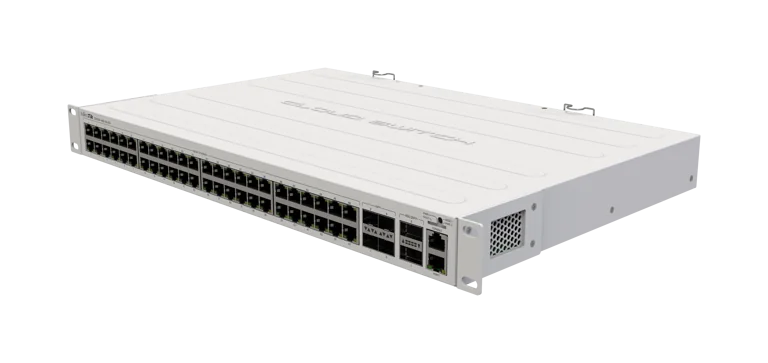

CRS354-48G-4S+2Q+RM
Best price and best performance on the market – this 48 port switch will rock any setup, including 40 Gbps devices!
If you are looking for a single switch that will put your network setup ahead of the curve without costing a fortune, look no further. The new CRS354-48G-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in demanding and busy environments. With this product we aim to set a new price-performance bar – get more features while spending way less!
This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.
Specification
- Product code CRS354-48G-4S+2Q+RM
- Suggested price $599.00
- Architecture MIPSBE
- CPU QCA9531
- CPU core count 1
- CPU nominal frequency 650 MHz
- Switch chip model 98DX3257
- Dimensions 297 x 443 x 44 mm
- RouterOS license 5
- Operating System RouterOS v7 / SwitchOS
- Size of RAM 128 MB
- Storage size 32 MB
- Storage type FLASH
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -20°C to 60°C

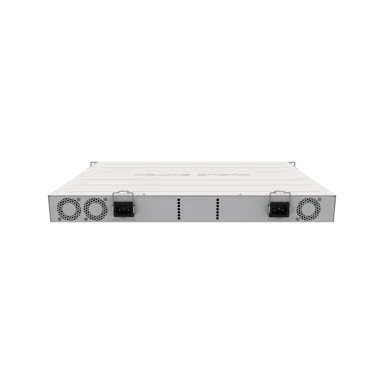

- Number of AC inputs 2
- AC input range 100-240
- Number of PSU slots 2
- Frequency (Hz) 50-60
- Max power consumption 60 W
- Max power consumption without attachments 50 W
- Cooling type 3 fans
- 10/100 Ethernet ports 1
- 10/100/1000 Ethernet ports 48
- SFP+ ports 4
- Number of 40G QSFP+ ports 2
- Serial console port RJ45
- CPU temperature monitor Yes
- PCB temperature monitor Yes
- Voltage Monitor Yes
- Certification CE, EAC, ROHS
- IP IP20
| CRS354-48G-4S+2Q+RM | |||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 13662.2 | 165914.0 | 39497.2 | 161780.5 | 250148.8 | 128076.2 |
| Switching | Non blocking Layer 2 capacity | 13662.2 | 331828.1 | 39497.2 | 323560.9 | 250148.8 | 256152.4 |
| Switching | Non blocking Layer 1 throughput | 13662.2 | 168100.0 | 39497.2 | 168100.0 | 250148.8 | 168100.0 |
| Switching | Non blocking Layer 1 capacity | 13662.2 | 336200.0 | 39497.2 | 336200.0 | 250148.8 | 336200.0 |
| Routing | none (L3HW) | 9752.9 | 118439.5 | 28195.5 | 115488.7 | 160513.7 | 82183.0 |
| Routing | 25 ip filter rules (Fasttrack L3HW) | 5581.7 | 67784.7 | 14776.3 | 60523.8 | 80145.85 | 41034.6 |
| CRS354-48G-4S+2Q+RM | QCA9531 all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 37,4 | 454.2 | 82,8 | 339.1 | 162,5 | 83.2 |
| Bridging | 25 bridge filter rules | 33,8 | 410.5 | 47,8 | 195.8 | 75,6 | 38.7 |
| Routing | none (fast path) | 37,2 | 451.8 | 73,3 | 300.2 | 144,9 | 74.2 |
| Routing | 25 simple queues | 36,4 | 442.0 | 52,4 | 214.6 | 54,4 | 27.9 |
| Routing | 25 ip filter rules | 33,8 | 410.5 | 41,4 | 169.6 | 41,7 | 21.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

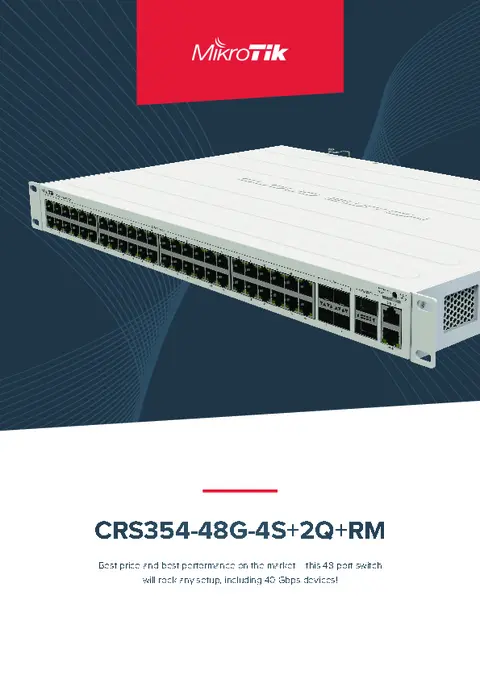

Documents
