CRS310-1G-5S-4S+IN
10 Gigabit fibre connectivity way over a 100 meters – for small offices or ISPs. Hardware offloaded VLAN-filtering and even some L3 routing on a budget!

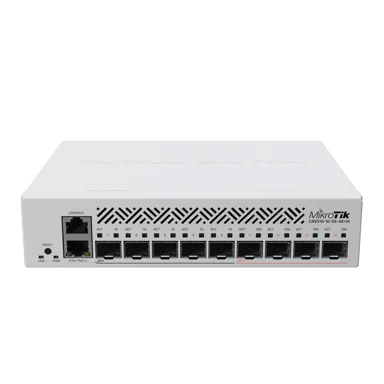

This switch is an indoor variation of the prominent netFiber 9 switch – used by many small and medium ISPs for reliable 10 Gigabit fibre connections stretching over a 100 meters. With five 1G SFP ports, four 10G SFP+ ports, and an additional Gigabit Ethernet port, this is the perfect upgrade for existing CRS212 setups. You’re getting the modern ARM v7 CPU, 256 MB of RAM, and better cooling. The new Marvell switch-chips bring phenomenal performance to the table!
The Gigabit Ethernet port has a direct connection to the switch chip – so you can enjoy full gigabit speed there. And it supports PoE-in, giving you an additional powering option in tricky spots.
You can mount this switch in a standard 1U rack to keep everything organized. And it has all the power you would expect from a rackmount device: CRS310 supports hardware offloaded VLAN- filtering. And even some hardware offloaded Layer-3 routing.

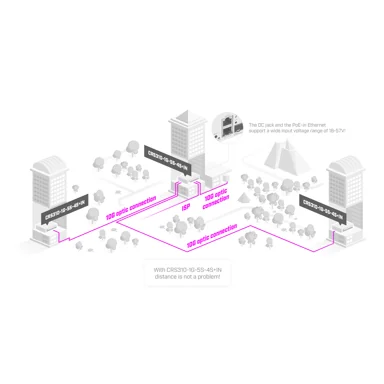

CRS310-1G-5S-4S+IN is a fantastic tool for anyone working with indoor connections over 100 meters while keeping data loss and ping low. Optical fiber can be a great alternative to copper if you are worried about electromagnetic interference, tampering or eavesdropping.
Specification
- Product code CRS310-1G-5S-4S+IN
- Suggested price $199.00
- Architecture ARM 32bit
- CPU 98DX226S
- CPU core count 2
- CPU nominal frequency 800 MHz
- Switch chip model 98DX226S
- Dimensions 200 x 166 x 44 mm
- RouterOS license 5
- Operating System RouterOS v7 / SwitchOS
- Size of RAM 256 MB
- Storage size 16 MB
- Storage type FLASH
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -40°C to 70°C
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 18-57 V
- Max power consumption 20 W
- Max power consumption without attachments 8 W
- PoE in 802.3af/at
- Cooling type 1 fan
- PoE in input Voltage 18-57 V
- 10/100/1000 Ethernet ports 1
- SFP ports 5
- SFP+ ports 4
- Serial console port RJ45
- CPU temperature monitor Yes
- PCB temperature monitor Yes
- Voltage Monitor Yes
- Certification CE, EAC, ROHS
- IP 20
| CRS310-1G-5S-4S+IN | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 3,738.6 | 45,401.8 | 10,808.3 | 44,270.7 | 68,452.4 | 35,047.6 |
| Switching | Non blocking Layer 2 capacity | 3,738.6 | 90,803.6 | 10,808.3 | 88,541.4 | 68,452.4 | 70,095.2 |
| Switching | Non blocking Layer 1 throughput | 3,738.6 | 46,000.0 | 10,808.3 | 46,000.0 | 68,452.4 | 46,000.0 |
| Switching | Non blocking Layer 1 capacity | 3,738.6 | 92,000.0 | 10,808.3 | 92,000.0 | 68,452.4 | 92,000.0 |
| CRS310-1G-5S-4S+IN | 98DX226 all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 104,1 | 1264.2 | 119,1 | 487.8 | 141,1 | 72.2 |
| Bridging | 25 bridge filter rules | 59,7 | 725.0 | 59,7 | 244.5 | 70,4 | 36.0 |
| Routing | none (fast path) | 104,1 | 1264.2 | 129,7 | 531.3 | 143,5 | 73.5 |
| Routing | 25 simple queues | 56,7 | 688.6 | 57,9 | 237.2 | 65,2 | 33.4 |
| Routing | 25 ip filter rules | 44,1 | 535.6 | 45,6 | 186.8 | 48,4 | 24.8 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

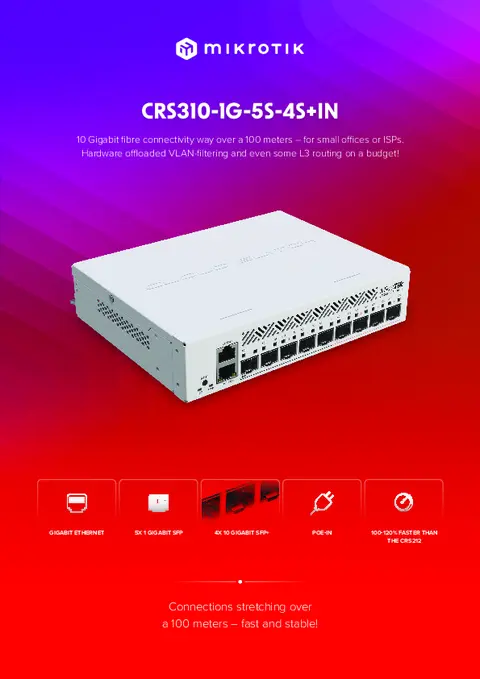

Documents
