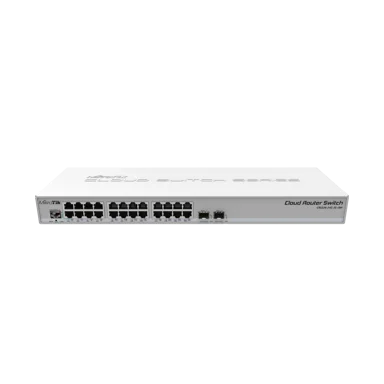

    CRS326-24G-2S+RM 24 Gigabit port switch with 2 x SFP+ cages in 1U rackmount case, Dual boot (RouterOS or SwitchOS)

    SwOS/RouterOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features!

    It has “Dual boot” feature that allows you to choose which operating system you prefer to use, RouterOS or SwOS. If you prefer to have a simplified switch only OS with more switch specific features, use SwOS. If you are used to Winbox and would like the ability to use routing and other Layer 3 features on some ports in your CRS, boot and use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings.

    It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.

     Send purchase questions

    Specifications

    Details
    Product code CRS326-24G-2S+RM
    Architecture ARM 32bit
    CPU 98DX3236
    CPU core count 1
    CPU nominal frequency 800 MHz
    Switch chip model 98DX3236
    Dimensions 443 x 144 x 44 mm
    RouterOS license 5
    Operating System RouterOS / SwitchOS
    Size of RAM 512 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 60°C
    Suggested price $209.00

    Powering

    Details
    Number of DC inputs 2 (PoE-IN, DC jack)
    DC jack input Voltage 10-30 V
    Max power consumption 24 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 10-30 V

    Ethernet

    Details
    10/100/1000 Ethernet ports 24

    Fiber

    Details
    SFP+ ports 2

    Peripherals

    Details
    Serial console port RJ45

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS
    IP IP20

    Included parts

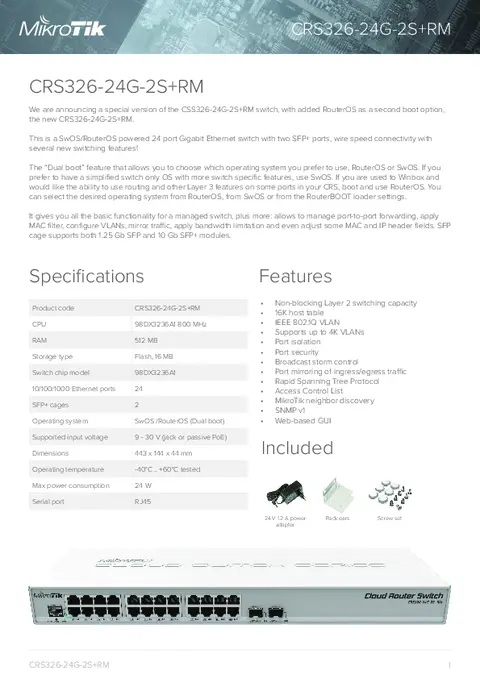

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload
    RouterBoot firmware Download
    DimensionsOpen
    Block DiagramOpen
    SFP compatibility listOpen
    RouterOS software manualOpen
    SwOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    #
    #
    #

    Switching results

    CRS326-24G-2S+RM
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Switching Non blocking Layer 2 throughput 3,576.1 43,427.8 10,338.3 42,345.9 65,476.2 33,523.8
    Switching Non blocking Layer 2 capacity 3,576.1 86,855.7 10,338.3 84,691.7 65,476.2 67,047.6
    Switching Non blocking Layer 1 throughput 3,576.1 44,000.0 10,338.3 44,000.0 65,476.2 44,000.0
    Switching Non blocking Layer 1 capacity 3,576.1 88,000.0 10,338.3 88,000.0 65,476.2 88,000.0

    Ethernet test results

    CRS326-24G-2S+RM98DX3236 all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)104,31266.6273,51120.3449229.9
    Bridging25 bridge filter rules1041263.0104,6428.4104,553.5
    Routingnone (fast path)104,31266.6273,91121.9343,5175.9
    Routing25 simple queues104,31266.6136,9560.7137,470.3
    Routing25 ip filter rules64,8786.965,9269.965,833.7
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
