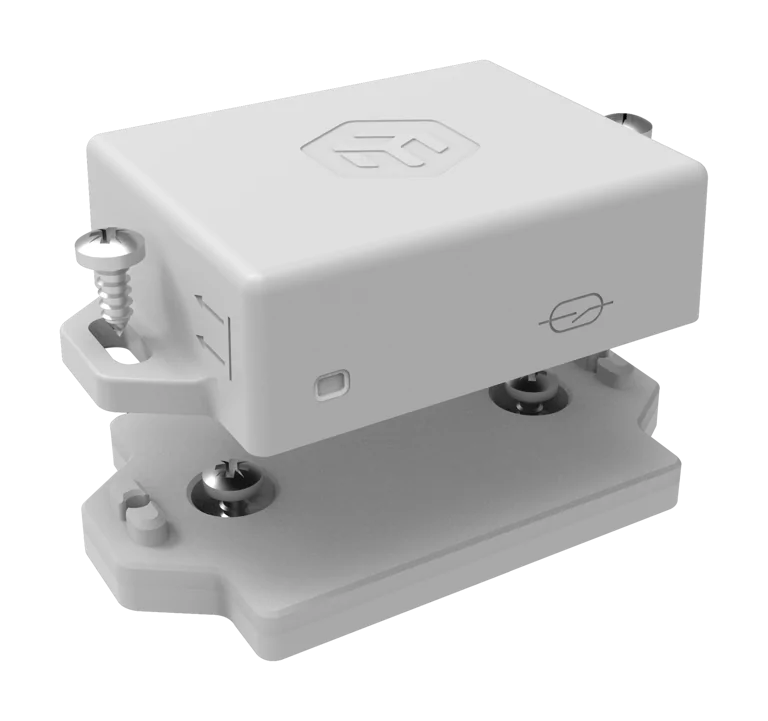

TG-LR92
A configurable LoRaWAN sensor tag: a flexible and cost-effective tool to gather data and make informed operational decisions. Monitor temperature, humidity, motion and events with a configurable LoRaWAN sensor tag designed for demanding IoT deployments. This is the 902-928Mhz version, look for TG-LR82 if you need the 863-870Mhz spectrum!
This is the 902-928Mhz version, look for TG-LR82 if you need the 863-870Mhz spectrum!
TG-LR92 combines multiple sensors, intelligent event rules and flexible reporting profiles in one compact device – making it easy to monitor environments, equipment and logistics across long distances. Designed to work seamlessly with MikroTik LR9 gateways and modern monitoring platforms.
All-in-one sensor with local data processing
TG-LR92 combines environmental and motion sensing with onboard data processing. High-accuracy temperature reporting makes the TG-LR92 extra suitable for monitoring temperature-sensitive goods and environments. The device can generate temperature and humidity averages or histograms before transmitting telemetry. This reduces network traffic while preserving valuable insights about environmental conditions.
Multiple configuration profiles and event-based rules, allowing the device to adapt automatically to changing conditions. This enables powerful monitoring scenarios without complex backend logic.
Flexible configuration via LoRaWAN downlinks. Generate payloads using a dedicated configuration tool or integrate with platforms such as The Things Network (TTN).
Similar logic can be used for other monitoring scenarios: temperature or humidity thresholds, impact or free-fall detection, orientation or tilt monitoring, equipment and asset activity tracking, and so on. An integrated magnetic reed switch enables door or lid detection and allows simple interactions with the device using a magnet. From cold-chains to storage facilities, from logistics to environmental research – our TG-LR92 can fit many roles!

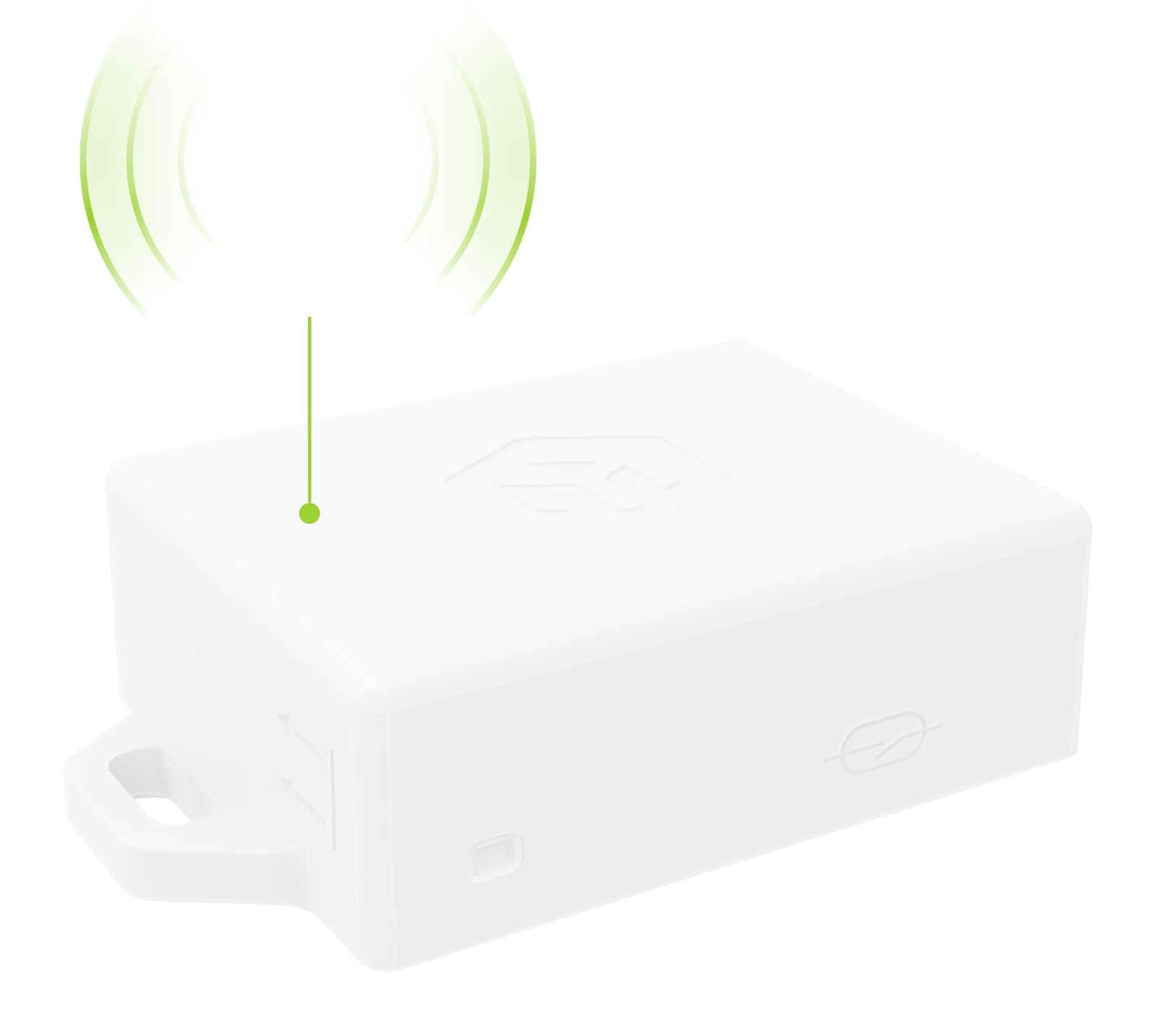

2.4 GHz flexibility for LoRa!
TG-LR92 also supports 2.4 GHz LoRa, enabling deployments without regional frequency restrictions. Unlike sub-GHz LoRa bands that vary by region, 2.4 GHz LoRa can be used globally without frequency switching. Typical range can reach around 1.5 km, depending on gateway antenna and environment. This makes it a practical option for moving assets such as container ships or international logistics systems.
R11e-LR2
A new Concentrator Gateway card for LoRa® technology in mini PCIe form – so you can create or customize your own 2.4 GHz IoT projects.
wAP LR2 kit
Our newest out-of-the-box solution for LoRa® technology. Works with the 2.4 GHz frequency for LoRa®. Doesn’t interfere with the 2.4 GHz WLAN signal!
Works with your monitoring stack
Sensor data from TG-LR92 can be visualized and analyzed using modern monitoring platforms such as Grafana. With MikroTik RouterOS container support, Grafana dashboards can be deployed quickly, enabling real-time telemetry visualization and historical analysis.
Designed for long-range IoT networks
TG-LR92 integrates seamlessly with MikroTik LR9 LoRaWAN gateways. Together they provide long-range connectivity for sensor deployments across buildings, industrial sites or outdoor environments.
KNOT LR9G kit
An industrial-grade IoT gateway for smart asset tracking, remote monitoring, and efficient automation – now with enhanced LoRa® reception, concurrent GPS + LTE CAT-M, and a lower price. This is the 915 MHz version.
wAP LR9G kit
The wAP LR9G kit is a rugged, out-of-the-box LoRa® 915 MHz gateway built into MikroTik’s proven wAP form factor.
wAP LR2 kit
Our newest out-of-the-box solution for LoRa® technology. Works with the 2.4 GHz frequency for LoRa®. Doesn’t interfere with the 2.4 GHz WLAN signal!
Specification
- Product code TG-LR92
- Suggested price $29.00
- MTBF Approximately 100'000 hours at 25C
- Tested ambient temperature -10°C to 70°C
- Certification FCC, IC
- IP 67

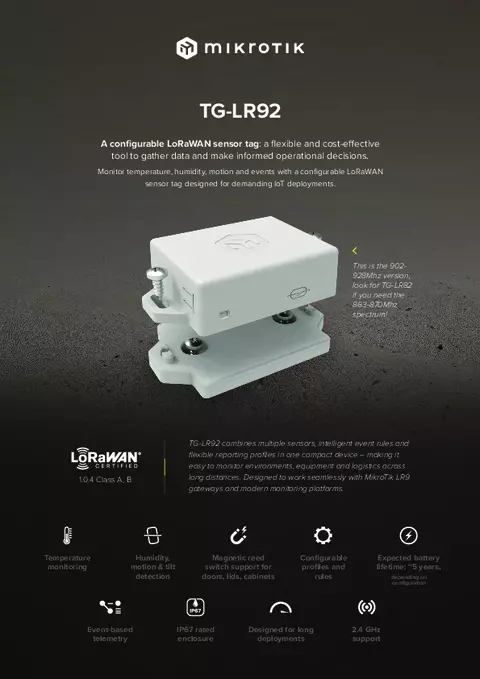

Documents
