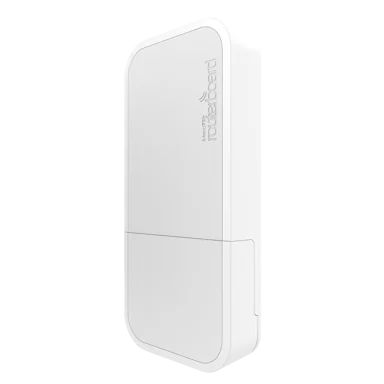

    wAP LR9 kit An out-of-the-box gateway solution for LoRa® technology, 902-928 MHz

    wAP LR9 kit – an out-of-the-box solution to use LoRa® technology. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa® servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port that could be used as a backend.

    This particular wAP form-factor has been tested in many other MikroTik products – it can deliver excellent and stable performance in almost any weather conditions.

    You can use the optional internal 2 dBi antenna or attach an external antenna. For extra network coverage we suggest adding MikroTik Antenna kit for LoRa®.

    Operates in 902-928 MHz frequency (used in United States, Canada, Mexico, Australia, Brazil, many countries in Asia etc.)

    Functional and non-intrusive design, astonishing durability and great value – that is the wAP LR9 kit, the long-awaited solution for LoRa® technology for enthusiasts of any level.

    *) the device has no built in LTE modem, the SIM slot can only be used, if LoRa interface card is removed and replaced by an LTE modem

     Send purchase questions

    Specifications

    Details
    Product code RBwAPR-2nD&R11e-LR9
    Architecture MIPSBE
    CPU QCA9531
    CPU core count 1
    CPU nominal frequency 650 MHz
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -40°C to 60°C
    Suggested price $169.00

    Powering

    Details
    Number of DC inputs 3 (DC jack, PoE-IN, Automotive)
    DC jack input Voltage 9-30 V
    Automotive input Voltage 9-30 V
    Max power consumption 7 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 9-30 V

    Wireless specifications

    Details
    Wireless 2.4 GHz Max data rate 300 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n
    Antenna gain dBi for 2.4 GHz 2
    Wireless 2.4 GHz chip model QCA9531
    Wireless 2.4 GHz generation Wi-Fi 4

    Ethernet

    Details
    10/100 Ethernet ports 1

    Peripherals

    Details
    Number of SIM slots 1 Modem (Mini SIM)
    MiniPCI-e slots 1

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes

    Certification & Approvals

    Details
    Certification FCC, IC, EAC
    IP IP54

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s22-96
    11MBit/s22-89
    6MBit/s20-93
    54MBit/s18-74
    MCS020-93
    MCS716-71

    Included parts

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (FCC - 1)
    Declaration of conformityOpen (FCC - 2)

    High resolution images

    Ethernet test results

    RBwAPR-2nD&R11e-LR9QCA9531 100M one port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)8.198.423.596.3173.688.9
    Bridging25 bridge filter rules8.198.423.596.370.936.3
    Routingnone (fast path)8.198.423.596.3160.882.3
    Routing25 simple queues8.198.423.596.390.846.5
    Routing25 ip filter rules8.198.423.596.343.222.1
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
