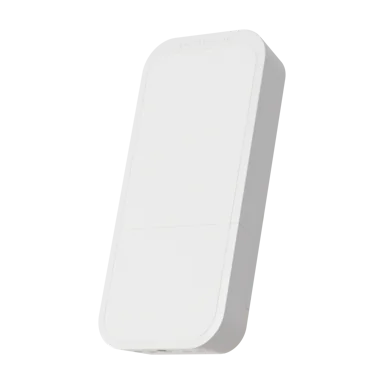

wAP LR9G kit
The wAP LR9G kit is a rugged, out-of-the-box LoRa® 915 MHz gateway built into MikroTik’s proven wAP form factor.
The wAP LR9G kit is a rugged, out-of-the-box LoRa® gateway built into MikroTik’s proven wAP form factor. It features:
• LoRa® 915 MHz support
• Built-in GPS (via MT3337V)
• Improved Rx sensitivity: up to -141 dBm
• 2.4 GHz Wi-Fi (802.11b/g/n dual-chain)
• Passive PoE support and wide voltage input range
• 3 power input options: PoE, automotive, or DC jack
• SMA female connectors for external antenna options
Pair it with any public or private LoRa® network (including The Things Network or The Things Industries) using the preinstalled UDP packet forwarder. Whether you’re deploying smart irrigation in a field or setting up a LoRa® node on a building rooftop – this device is made to withstand the elements and simplify setup.
*) the device has no built in LTE modem, the SIM slot can only be used, if LoRa interface card is removed and replaced by an LTE modem
Specification
- Product code RBwAPR-2nD&R11e-LR9G
- Suggested price $149.00
- Architecture MIPSBE
- CPU QCA9531
- CPU core count 1
- CPU nominal frequency 650 MHz
- RouterOS license 4
- Operating System RouterOS v7
- Size of RAM 64 MB
- Storage size 16 MB
- Storage type FLASH
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -40°C to 60°C
- Number of DC inputs 3 (DC jack, PoE-IN, Automotive)
- DC jack input Voltage 9-28 V
- Automotive input Voltage 12-30 V
- Max power consumption 7 W
- PoE in Passive PoE
- Cooling type Passive
- PoE in input Voltage 9-28 V
- Wireless 2.4 GHz Max data rate 300 Mbit/s
- Wireless 2.4 GHz Number of chains 2
- Wireless 2.4 GHz standards 802.11b/g/n
- Antenna gain dBi for 2.4 GHz 2
- Wireless 2.4 GHz chip model QCA9531
- Wireless 2.4 GHz generation Wi-Fi 4
- 10/100 Ethernet ports 1
- Number of SIM slots 1 Modem (Mini SIM)
- MiniPCI-e slots 1
- PCB temperature monitor Yes
- Voltage Monitor Yes
- GPS RF connector type uUFL
- Certification FCC, IC, EAC
- IP 54
| RBwAPR-2nD&R11e-LR9G | QCA9531 100M one port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 173.6 | 88.9 |
| Bridging | 25 bridge filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 70.9 | 36.3 |
| Routing | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 160.8 | 82.3 |
| Routing | 25 simple queues | 8.1 | 98.4 | 23.5 | 96.3 | 90.8 | 46.5 |
| Routing | 25 ip filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 43.2 | 22.1 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
