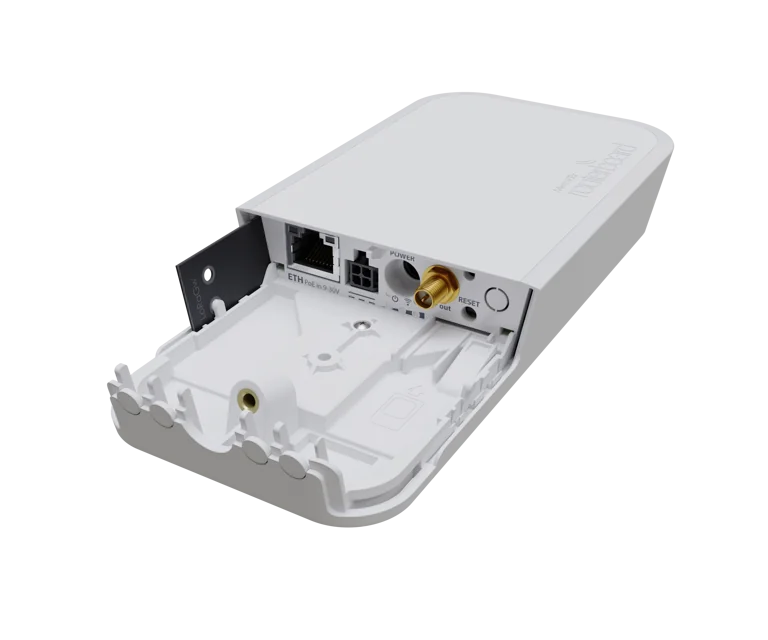

    wAP LR2 kit Our newest out-of-the-box solution for LoRa® technology. Works with the 2.4 GHz frequency for LoRa®. Doesn’t interfere with the 2.4 GHz WLAN signal!

    Our newest out-of-the-box solution for LoRa® technology. Like the previous wAP LR kits, it contains a pre-installed UDP packet forwarder to any public or private LoRa® servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port with PoE-in that could be used as a backend.

    Here’s the difference: this device works with the 2.4 GHz frequency for LoRa® as well. That means significantly higher bandwidth, higher data rate, and less air time. And because of the Chirp modulation technology, it doesn’t interfere with the 2.4 GHz WLAN signal! A perfect solution for industrial setups with a high density of sensors.

    There is a built-in 2 dBi WLAN / 4.7 dBi LoRa® antenna, but you can add an external antenna for extra coverage. We suggest using the TOF-2400-8V-4 Omni antenna for best results.

    We’ve decided to keep the classic wAP form-factor that has been tested in many other MikroTik products – it can deliver excellent and stable performance in almost any weather conditions. Functional and non-intrusive design, astonishing durability, and great value remain at the core of this design.

    The whole IoT community is exploring the 2.4 GHz LoRa® possibilities – join them and be among the first ones to benefit from the increased data rates.

    *) the device has no built in LTE modem, the SIM slot can only be used, if LoRa interface card is removed and replaced by an LTE modem

     Send purchase questions

    Specifications

    Details
    Product code RBwAPR-2nD&R11e-LR2
    Architecture MIPSBE
    CPU QCA9531
    CPU core count 1
    CPU nominal frequency 650 MHz
    RouterOS license 4
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    Tested ambient temperature -40°C to 60°C
    Suggested price $149.00

    Powering

    Details
    Number of DC inputs 3 (PoE-IN, DC jack, Automotive)
    DC jack input Voltage 9-30 V
    Automotive input Voltage 9-30 V
    Max power consumption 8 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 9-30 V

    Wireless specifications

    Details
    Wireless 2.4 GHz Max data rate 300 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n
    Antenna gain dBi for 2.4 GHz 2
    Wireless 2.4 GHz chip model QCA9531
    Wireless 2.4 GHz generation Wi-Fi 4

    Ethernet

    Details
    10/100 Ethernet ports 1

    Peripherals

    Details
    Number of SIM slots 1 Modem (Mini SIM)
    MiniPCI-e slots 1

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS
    IP 54

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s22-96
    11MBit/s22-89
    6MBit/s20-93
    54MBit/s18-74
    MCS020-93
    MCS716-71

    Included parts

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current release
    FCC Grant (wAP)Open
    FCC Grant (LR2)Open
    Declaration of conformityOpen (CE)
