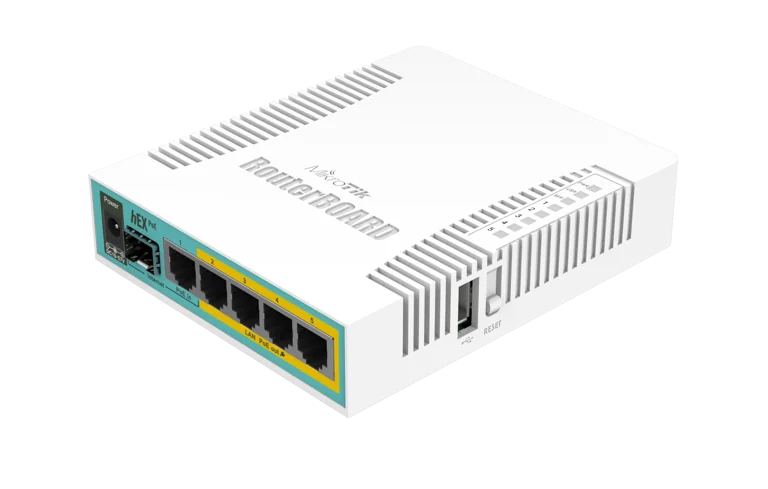

hEX PoE
5x Gigabit Ethernet with PoE output for four ports, SFP, USB, 800MHz CPU, 128MB RAM, RouterOS L4
hEX PoE is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and a SFP port for adding optical fiber connectivity. The ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit.
It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.
It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power at/af mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.
Specification
- Product code RB960PGS
- Suggested price $89.00
- Architecture MIPSBE
- CPU QCA9557
- CPU core count 1
- CPU nominal frequency 800 MHz
- Switch chip model QCA8337
- RouterOS license 4
- Operating System RouterOS
- Size of RAM 128 MB
- Storage size 16 MB
- Storage type FLASH
- MTBF Approximately 100'000 hours at 25C
- Tested ambient temperature -40°C to 60°C
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 12-57 V
- Max power consumption 54 W
- Max power consumption without attachments 6 W
- PoE in Passive PoE
- Cooling type Passive
- PoE in input Voltage 12-57 V
- PoE-out ports Ether2-Ether5
- PoE out 802.3af/at
- Low voltage PoE-Out current limit 1 A
- High voltage PoE-Out current limit 450 mA
- Max total out (A) 2 A
- 10/100/1000 Ethernet ports 5
- SFP ports 1
- Number of USB ports 1
- USB Power Reset Yes
- USB slot type USB type A
- Max USB current (A) 1
- PCB temperature monitor Yes
- Voltage Monitor Yes
- Beeper Yes
- Certification CE, EAC, ROHS
- IP IP20
| RB960PGS | QCA9557 (800Mhz) 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 161.9 | 1,966.1 | 401.5 | 1,644.5 | 542.3 | 277.7 |
| Bridging | 25 bridge filter rules | 143.2 | 1,739.0 | 145.5 | 596.0 | 146.2 | 74.9 |
| Routing | none (fast path) | 161.9 | 1,966.1 | 396.3 | 1,623.2 | 521.7 | 267.1 |
| Routing | 25 simple queues | 161.9 | 1,966.1 | 217.2 | 889.7 | 216.0 | 110.6 |
| Routing | 25 ip filter rules | 74.6 | 905.9 | 78.0 | 319.5 | 76.5 | 39.2 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
