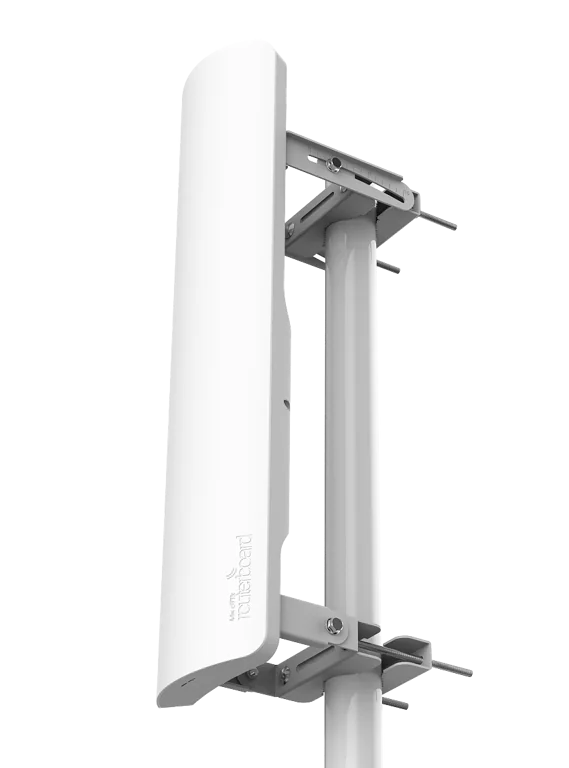

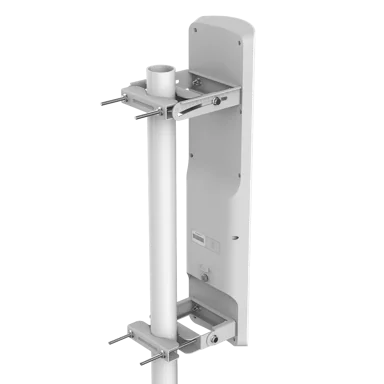

    mANTBox 19s 5GHz 120 degree 19dBi dual polarization sector Integrated antenna with 720Mhz CPU, 128MB RAM, SFP, PSU and PoE

    The mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in. Powered by the RB921 device, the mANTBox comes ready to use with everything included. The device uses a high speed 720MHz CPU and has a built in 802.11 ac/a/n wireless device with up to 31dBm output power.

    mANTBox 19s comes with 19dBi 120 degree sector antenna.

    We have two versions available - RB921GS-5HPacD-19S (International) and RB921GS-5HPacD-19S-US (USA). RB921GS-5HPacD-19S-US (USA) is factory locked for 5.17 - 5.25 GHz and 5.725 - 5.835 GHz frequencies. This lock can not be removed. RB921GS-5HPacD-19S (International) supports 5.17 - 5.835 GHz range (Specific frequency range can be limited by country regulations).

     Send purchase questions

    Specifications

    Details
    Product code RB921GS-5HPacD-19S
    CPU QCA9557
    CPU core count 1
    CPU nominal frequency 720 MHz
    Dimensions 152 x 598 x 78 mm
    License level 4
    Operating System RouterOS
    Size of RAM 128 MB
    Storage size 128 MB
    Storage type NAND
    Tested ambient temperature -30 + 70 C
    Suggested price $199.00

    Powering

    Details
    Max Power consumption 13W
    PoE in Passive PoE
    PoE in input Voltage 12-28 V
    Number of DC inputs 2 (DC jack, PoE-IN)
    DC jack input Voltage 8-30 V

    Wireless

    Details
    Wireless 5 GHz number of chains 2
    Wireless 5 GHz standards 802.11a/n/ac
    Antenna gain dBi for 5 GHz 19
    Wireless 5 GHz chip model QCA9892

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Fiber

    Details
    SFP ports 1

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes

    Wireless specifications

    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s31-96
    54MBit/s27-81
    MCS030-96
    MCS727-77
    MCS922-72

    Included parts

    Horizontal Azimuth

    Vertical Azimuth

    Vertical Elevation

    Horizontal Elevation

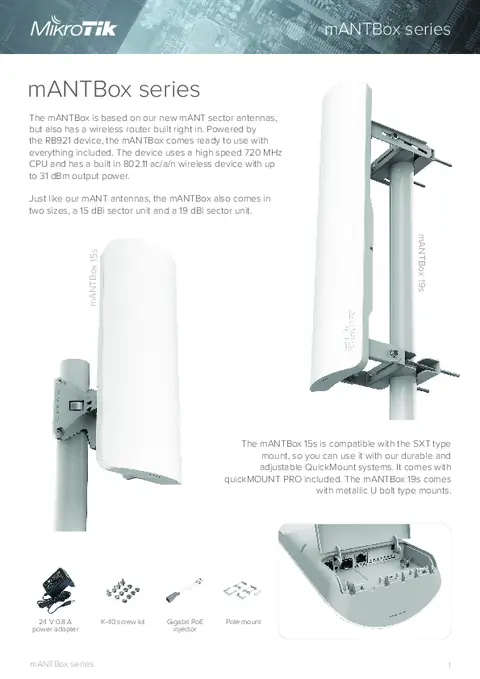

    BrochureOpen
    Quick GuideOpen
    Selection guide for PtP linksOpen
    Selection guide for PtMP linksOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)
    Declaration of conformityOpen (FCC)

    ANT files

    160905104816pattern.antDownload
    160905104816pattern.antDownload

    High resolution images

    Ethernet test results

    RB921GS-5HPacD-19SQCA9557 1G all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)81.2986.1234.9962.2477.7244.6
    Bridging25 bridge filter rules81.2986.1118.4485.0119.561.2
    Routingnone (fast path)81.2986.1234.9962.2408.2209.0
    Routing25 simple queues81.2986.1158.3648.4165.884.9
    Routing25 ip filter rules64.8786.970.4288.460.931.2
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
    4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
