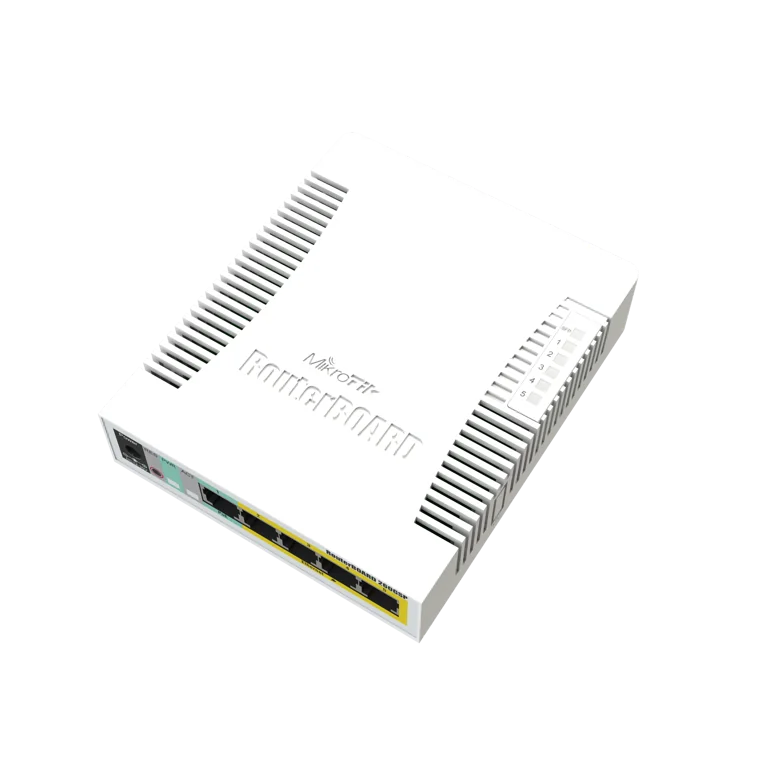

    RB260GSP 5x Gigabit PoE out Ethernet Smart Switch, SFP cage, plastic case, SwOS

    The RB260GSP is a small SOHO switch, which features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit (passive PoE over datalines only). The RB260GSP has five Gigabit Ethernet ports and one SFP cage, switching is done by an Atheros Switch Chip. The device is running an operating system designed specifically for MikroTik Switch products - SwOS.

     Send purchase questions

    Specifications

    Details
    Product code CSS106-1G-4P-1S
    Switch chip model QCA8337
    Dimensions 113x139x28mm
    Operating System MikroTik SwOS
    Storage size 128 KB
    Storage type FLASH
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -20°C to 70°C
    Suggested price $55.95

    Powering

    Details
    Number of DC inputs 2 (DC jack, PoE-IN)
    DC jack input Voltage 11-30 V
    Max power consumption 53 W
    Max power consumption without attachments 5 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 11-30 V

    PoE-out

    Details
    PoE-out ports Ether2-Ether5
    PoE out Passive PoE
    Max out per port output (input 18-30 V) 1 A
    Max total out (A) 2 A

    Ethernet

    Details
    10/100/1000 Ethernet ports 5

    Fiber

    Details
    SFP DDMI Yes
    SFP ports 1

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS
    IP IP20

    Included parts

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    SFP compatibility listOpen
    SwOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    #
    #
    #

    Switching results

    CSS106-1G-4P-1S
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Switching Non blocking Layer 2 throughput 487.6 5,922.0 1,409.8 5,774.4 8,928.6 4,571.4
    Switching Non blocking Layer 2 capacity 487.6 11,844.0 1,409.8 11,548.9 8,928.6 9,142.9
    Switching Non blocking Layer 1 throughput 487.6 6,000.0 1,409.8 6,000.0 8,928.6 6,000.0
    Switching Non blocking Layer 1 capacity 487.6 12,000.0 1,409.8 12,000.0 8,928.6 12,000.0
