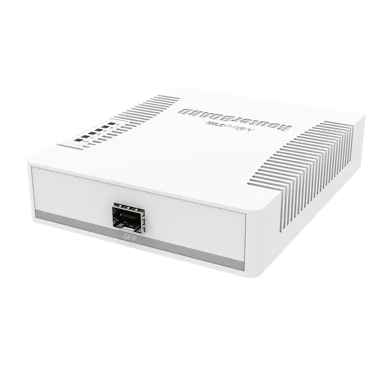

    RB260GS 5x Gigabit Ethernet Smart Switch, SFP cage, plastic case, SwOS

    The RB260GS is a small SOHO switch. It has five Gigabit Ethernet ports and one SFP cage powered by an Atheros Switch Chip.

    Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

    It is powered by an operating system designed specifically for MikroTik Switch products - SwOS.

    SwOS is configurable from your web browser. It gives you all the basic functionality for a managed switch, plus more: Allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields.

     Send purchase questions

    Specifications

    Details
    Product code CSS106-5G-1S
    Switch chip model QCA8337
    Dimensions 113x139x28mm
    Operating System MikroTik SwOS
    Storage size 128 KB
    Storage type FLASH
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -20°C to 70°C
    Suggested price $39.95

    Powering

    Details
    Number of DC inputs 2 (DC jack, PoE-IN)
    DC jack input Voltage 11-30 V
    Max power consumption 5 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 11-30 V

    Ethernet

    Details
    10/100/1000 Ethernet ports 5

    Fiber

    Details
    SFP DDMI Yes
    SFP ports 1

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS
    IP IP20

    Included parts

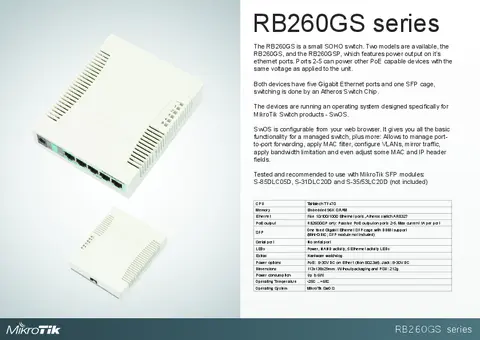

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    DimensionsOpen
    SFP compatibility listOpen
    SwOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    #
    #

    Switching results

    CSS106-5G-1S
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Switching Non blocking Layer 2 throughput 487.6 5,922.0 1,409.8 5,774.4 8,928.6 4,571.4
    Switching Non blocking Layer 2 capacity 487.6 11,844.0 1,409.8 11,548.9 8,928.6 9,142.9
    Switching Non blocking Layer 1 throughput 487.6 6,000.0 1,409.8 6,000.0 8,928.6 6,000.0
    Switching Non blocking Layer 1 capacity 487.6 12,000.0 1,409.8 12,000.0 8,928.6 12,000.0
