CCR1016-12S-1S+
1U rackmount, 12xSFP cage, 1xSFP+ cage, 16 cores x 1.2GHz CPU, 2GB RAM, LCD panel, Dual Power supplies, RouterOS L6
SFP/SFP+

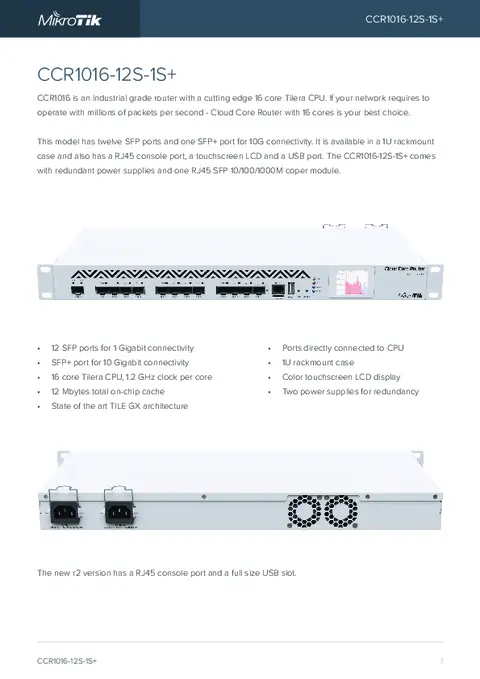

CCR1016-12S-1S+
CCR1016 is an industrial grade router with a cutting edge 16 core Tilera CPU. If you need many millions of packets per second - Cloud Core Router is your best choice.

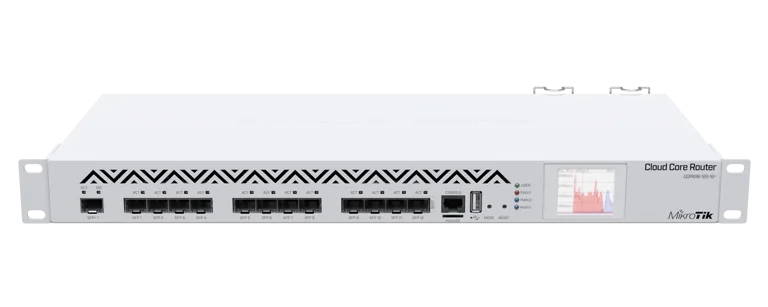

This model has twelve SFP ports and one SFP+ port for 10G connectivity. It is available in a 1U rackmount case and also has a serial console port, a touchscreen LCD and a USB port.

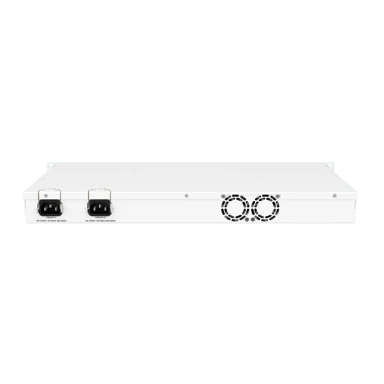

The CCR1016-12S-1S+ comes with redundant power supplies and one RJ45 SFP 10/100/1000M copper module.
Specification
Specifications
- Product code CCR1016-12S-1S+
- Suggested price $815.00
- Architecture TILE
- CPU TLR4-01680
- CPU core count 16
- CPU nominal frequency 1.2 GHz
- CPU Threads count 16
- Dimensions 443 x 197 x 44 mm
- RouterOS license 6
- Operating System RouterOS
- Size of RAM 2 GB
- Storage size 128 MB
- Storage type NAND
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -20°C to 60°C
Powering
- Number of AC inputs 2
- AC input range 100-240
- Max power consumption 47.5 W
- Max power consumption without attachments 34 W
- Cooling type 2 fans
Fiber
- SFP DDMI Yes
- SFP ports 12
- SFP+ ports 1
Peripherals
- Memory card type microSD
- Memory Cards 1
- Serial console port RJ45
- Number of USB ports 1
- USB Power Reset Yes
- USB slot type USB type A
- Max USB current (A) 1
Other
- CPU temperature monitor Yes
- PCB temperature monitor Yes
- Mode button Yes
- Beeper Yes
Certification & Approvals
- Certification CE, EAC, ROHS
- IP IP20
Included parts
Note
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
Ethernet test results
| CCR1016-12S-1S+r2 | Tile 16 core max possible throughput test with SFP+ port | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 1625,2 | 19736,4 | 4698,3 | 19244,2 | 17857,1 | 9142,8 |
| Bridging | 25 bridge filter rules | 1624,2 | 19724,3 | 2120,8 | 8686,8 | 2819,5 | 1443,6 |
| Routing | none (fast path) | 1625,5 | 19740,1 | 4609,8 | 18881,7 | 17857,1 | 9142,8 |
| Routing | 25 simple queues | 1625,2 | 19736,4 | 2610,4 | 10692,2 | 2787,7 | 1427,3 |
| Routing | 25 ip filter rules | 1043,5 | 12672,3 | 1253,4 | 5133,9 | 1316 | 673,8 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
IPsec test results
| CCR1016-12S-1S+r2 | CCR1016 series IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 130.5 | 1461.6 | 123.4 | 505.4 | 115.4 | 59.1 |
| 256 tunnels | AES-128-CBC + SHA1 | 363.8 | 4074.6 | 413.8 | 1694.9 | 425.9 | 218.1 |
| 256 tunnels | AES-128-CBC + SHA256 | 357.6 | 4005.1 | 399.2 | 1635.1 | 425.9 | 218.1 |
| 256 tunnels | AES-256-CBC + SHA1 | 354.9 | 3974.9 | 399.2 | 1635.1 | 425.9 | 218.1 |
| 256 tunnels | AES-256-CBC + SHA256 | 348.0 | 3897.6 | 384.6 | 1575.3 | 403.8 | 206.7 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
