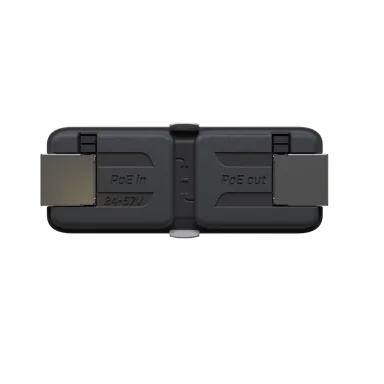

    GPeR Gigabit Passive Ethernet Repeater

    The GPeR unit allows to extend Ethernet cable by additional hop (< 100 - 150 m to regular network devices, and up to 210 m to another GPeR unit) up to 1,500 m.

    Handy for highrise buildings, multi-apartment buildings, with many floors and sections, where very long Ethernet cables might be a problem.

    Maximium allowed length of CAT6 Ethernet cable between GPeR and power source/router is up to 100 m (depending on cable quality, high quality - up to 150 m).

    Maximium allowed distance of CAT6 Ethernet cable between two GPeR devices is up to 210 m (depending on cable quality).

    In case if the destination device does not support PoE-in powering, the PoE Passthrough can be disabled by manually removing all jumpers.

     Send purchase questions

    Specifications

    Details
    Product code GPeR
    10/100/1000 Ethernet ports 1
    Number of 1G Ethernet ports with PoE-out 1
    Max out per port output (input < 30 V) 0.7 A
    Max out per port output (input > 30 V) 2 A
    Max total out (A) 2 A
    PoE in 802.3af/at
    PoE in input Voltage 24-57 V
    PoE out 802.3af/at
    Tested ambient temperature -40°C to 70°C
    Suggested price $16.00

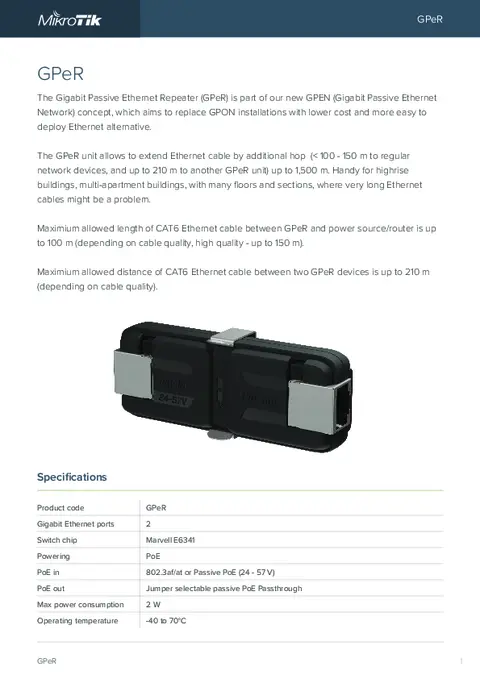

    BrochureOpen
    Quick GuideOpen
    RouterOS software manualOpen
