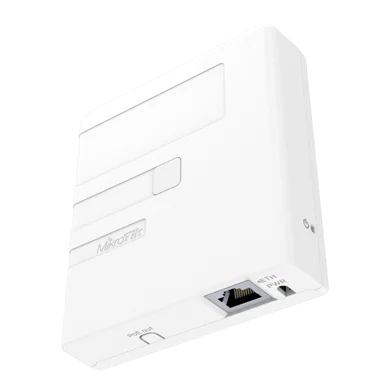

    GPEN11 A power injector that can be mounted on a wall

    The GPEN11 is a power injector that can be mounted on a wall, and will power your uplink devices with PoE power. The GPEN11 is part of the GPEN (Gigabit Passive Ethernet Network) concept, which aims to replace GPON installations with lower cost and more easy to deploy ethernet alternative.

    It also has a designated space for an ISP sticker on the front. Sticker size: 6,6 x 2,54 cm.

     Send purchase questions

    Specifications

    Details
    Product code GPEN11
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -40..+70C
    Suggested price $11.00

    Powering

    Details
    Number of DC inputs 1 (DC jack)
    DC jack input Voltage 12-57 V
    FAN count Passive

    PoE-out

    Details
    PoE-out ports Ether2
    PoE out Passive PoE
    Max out per port output (input 18-30 V) 2 A
    Max total out (A) 2 A

    Ethernet

    Details
    10/100/1000 Ethernet ports 2
    Number of 1G Ethernet ports with PoE-out 1

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS
    BrochureOpen
    Quick GuideOpen

    High resolution images
